150 Bar Triplex Plunger Pump, 15 L/min Shinjuess Copper High Pressure Pump
This Shinjuess triplex plunger pump is engineered for high-pressure industrial applications requiring consistent flow and durability.
- 15 L/min (3.4 GPM) Flow Rate
- 150 Bar (15 MPa) Working Pressure
- 4 kW Motor Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

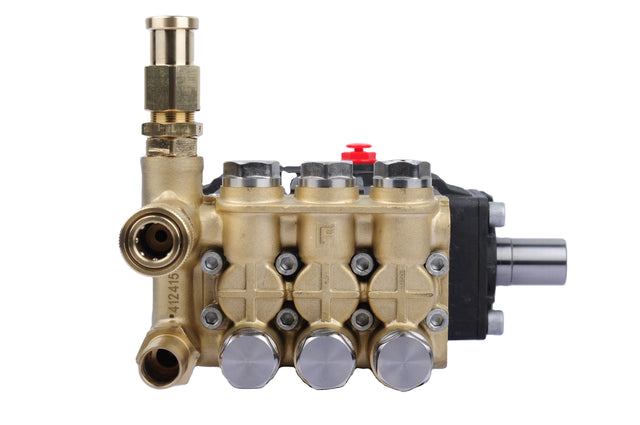

This Shinjuess triplex plunger pump is engineered for high-pressure industrial applications requiring consistent flow and durability. Featuring a copper pump head and a solid 24mm shaft, it delivers reliable performance for continuous-duty operations across multiple industries.
With a working pressure of 150 bar (15 MPa) and a flow rate of 15 L/min, this pump is suitable for water treatment, industrial cleaning, and fluid transfer systems. Its triplex reciprocating design ensures smooth output, reduced pulsation, and extended operational life.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Triplex Plunger Pump |
| Model | SJM1814N |
| Brand | Shinjuess |
| Pump Type | Reciprocating Triplex Plunger Pump |
| Structure | Piston Pump |
| Material | Copper Pump Head |
| Flow Rate | 15 L/min (3.4 GPM) |
| Working Pressure | 150 Bar (15 MPa) |
| Rated Speed | 1450 RPM |
| Shaft Type | Solid Male Shaft |
| Shaft Diameter | 24 mm |
| Motor Power | 4 kW |
| Horsepower | 5.5 HP |
| Voltage | 220V / 380V |
| Outlet Size | G3/8" |
| Power Source | Electric |
| Condition | New |
| Customization Support | OEM, ODM, OBM |
| Medium | Water |
| Application Scope | Industrial |
| Warranty | 1 Year |
Key Features
- High-pressure output up to 150 bar (15 MPa)
- Triplex plunger design for stable and smooth operation
- Durable copper construction for long service life
- Solid 24mm shaft for enhanced strength and reliability
- Efficient flow rate of 15 L/min
- Suitable for continuous industrial use
Typical Applications
- Industrial cleaning systems
- Water treatment and distribution
- Agricultural irrigation systems
- Pipe and surface cleaning
- Mining and manufacturing processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
