End Suction Pumps: Close Coupled and Frame Mounted Designs

Why End Suction Pumps Are So Popular

• Simple: one impeller, one casing and very few parts to wear.
• Compact: a small footprint for the flow they deliver.
• Affordable: often the lowest cost centrifugal pump for a given duty.
• Versatile: water, light chemicals, cooling loops, irrigation and general transfer.
• Easy to service: many designs let you remove the internals without touching the pipework.
• They work best on clean or lightly dirty liquids at moderate heads. For very high heads or very large flows, other layouts take over.

Close Coupled or Frame Mounted?

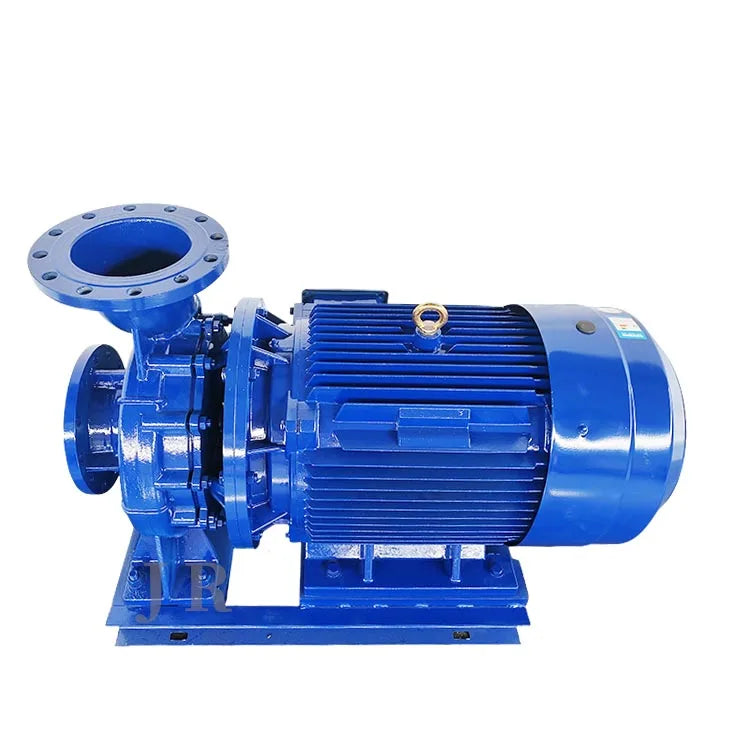

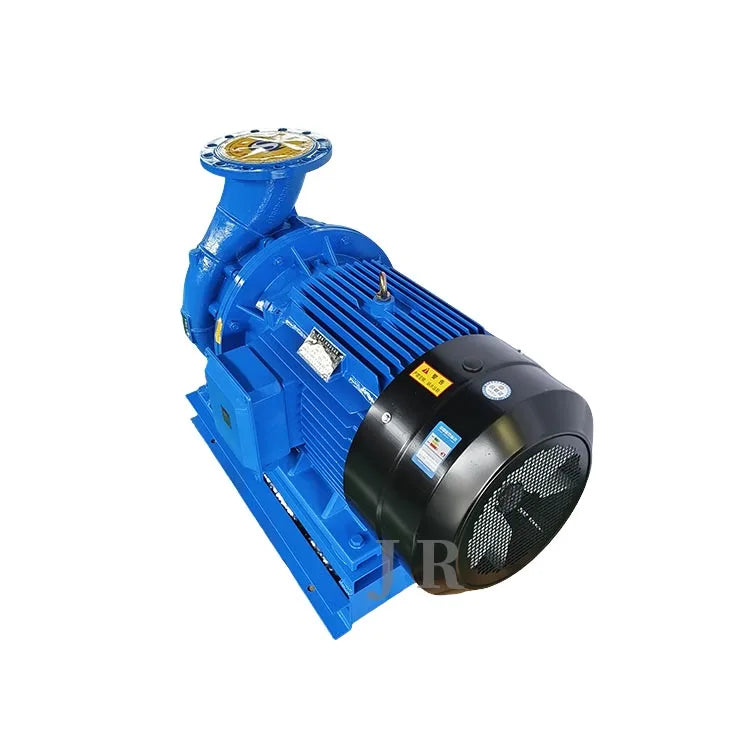

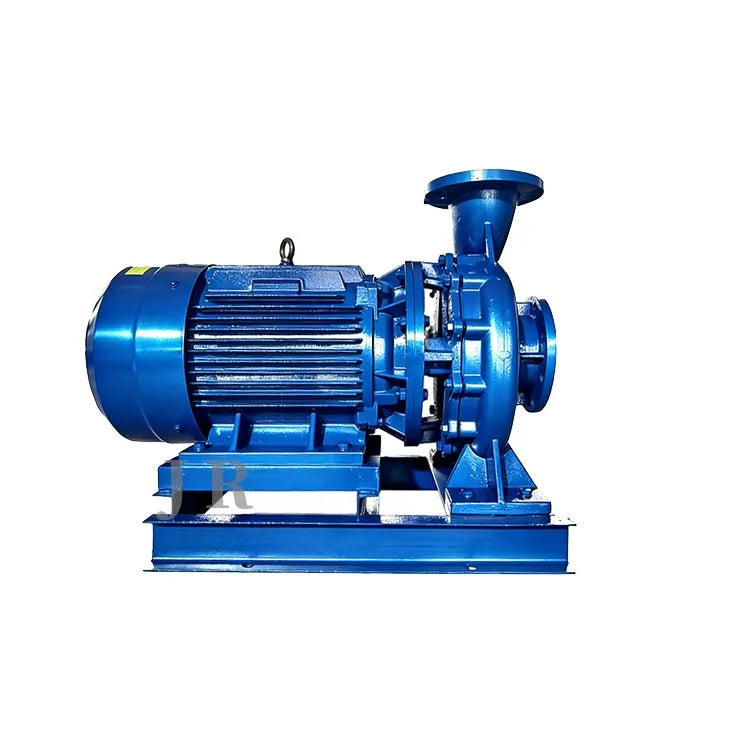

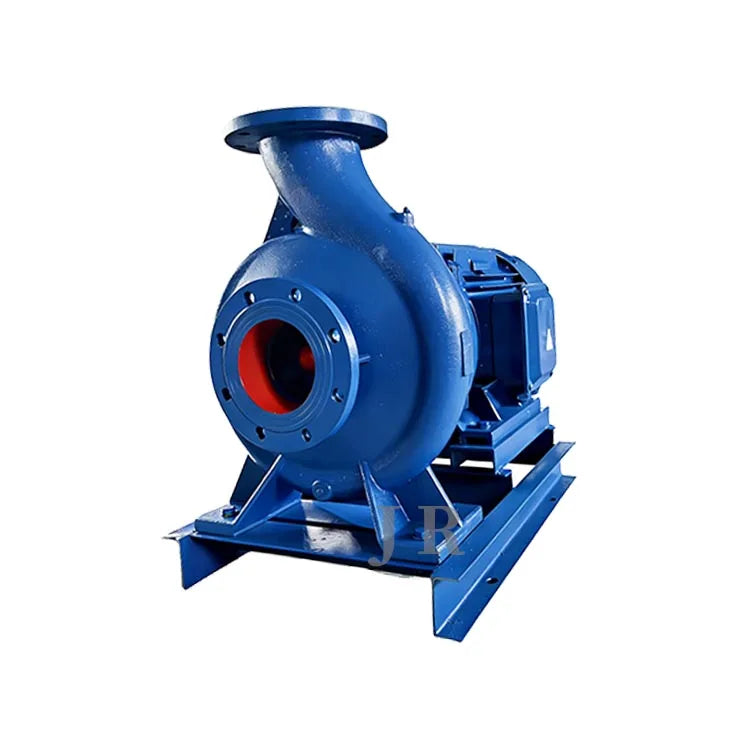

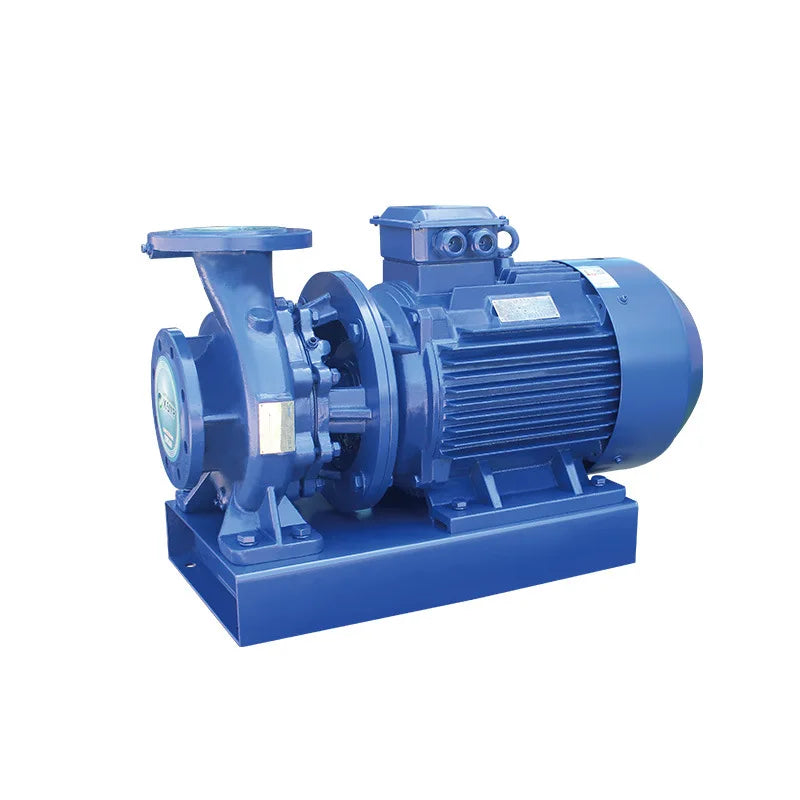

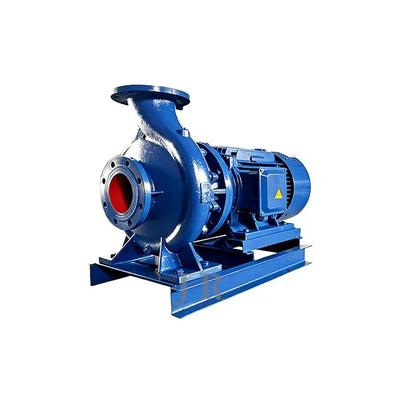

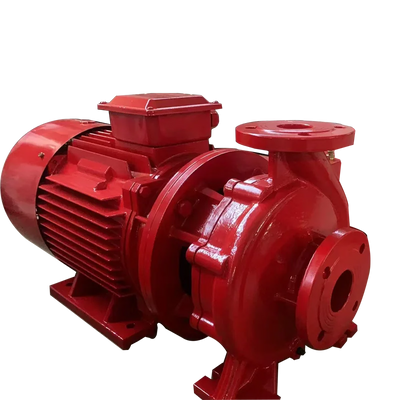

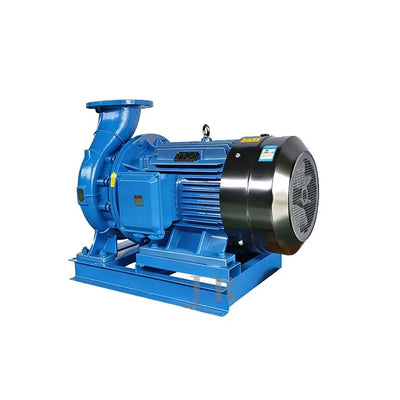

Close Coupled End Suction Pumps

The impeller sits directly on an extended motor shaft. There is no separate coupling or bearing frame, so the unit is short, light and quick to install. Close coupled pumps suit building services, small water systems and general duties up to medium sizes. The trade-off is that a motor failure usually means replacing or rebuilding the whole unit.

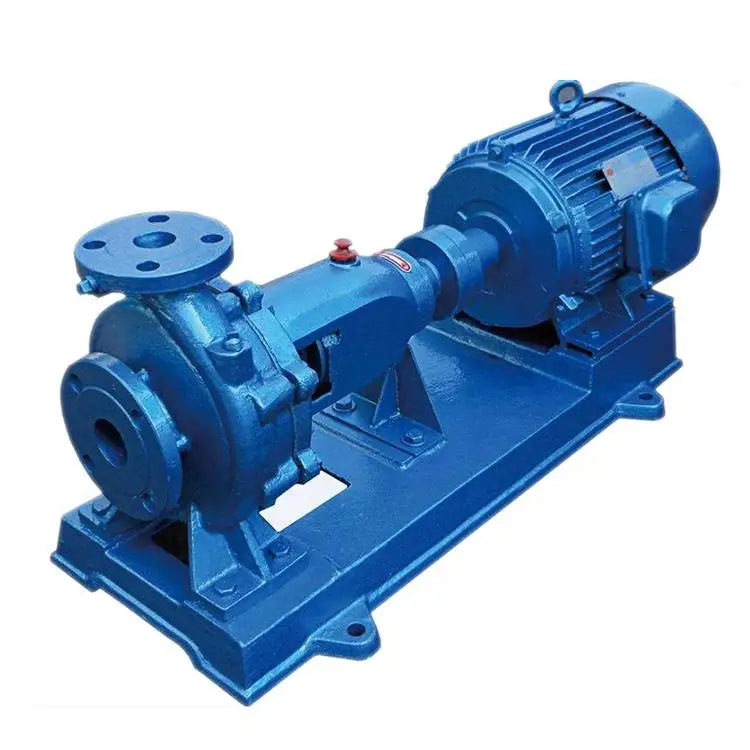

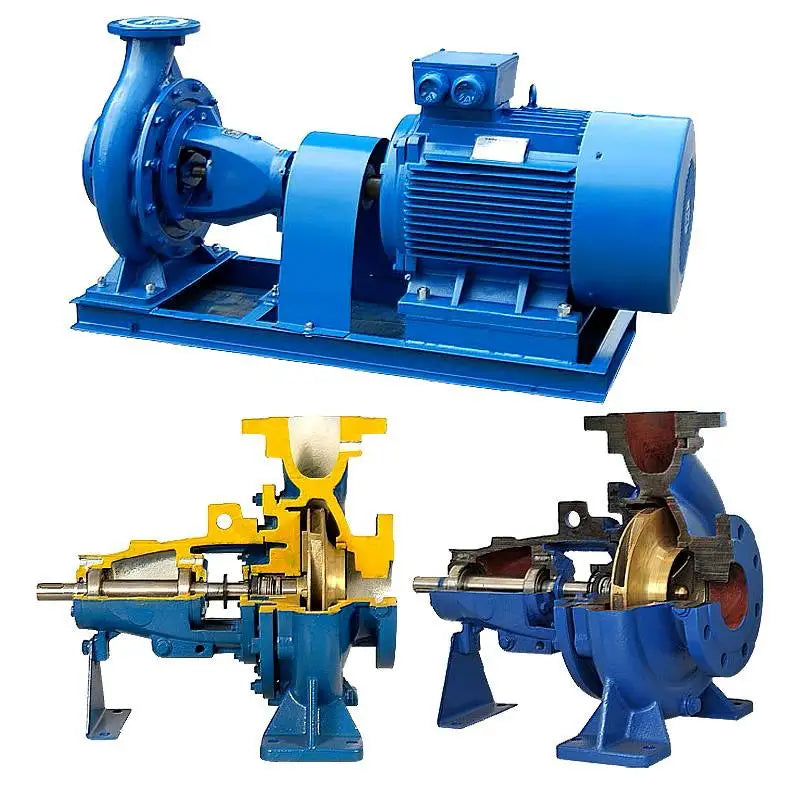

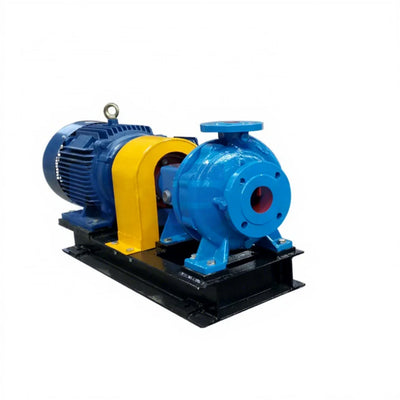

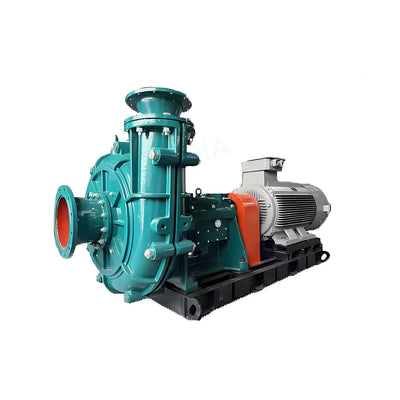

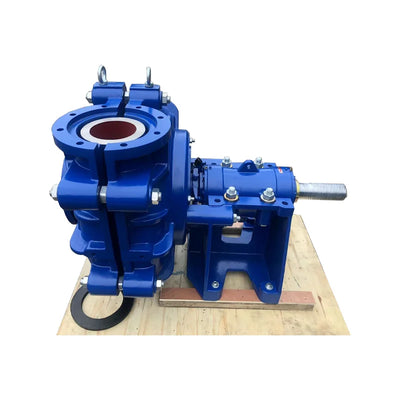

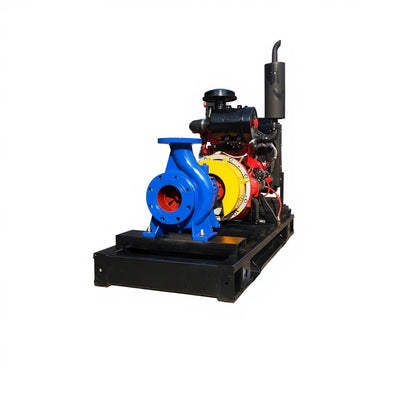

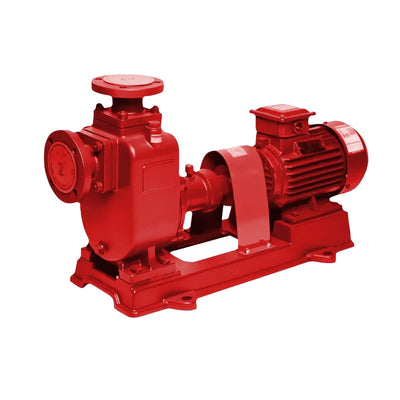

Frame Mounted End Suction Pumps

Here the pump has its own shaft and bearing frame, joined to the motor by a coupling on a common baseplate. This layout handles bigger motors, heavier duties and hotter liquids. It also lets you change the motor without disturbing the pump.

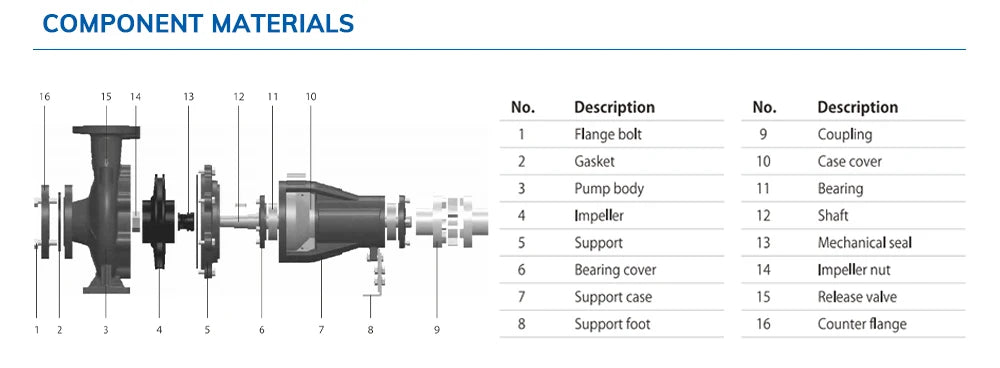

Many frame-mounted pumps use a back pull-out design. With a spacer coupling fitted, you can remove the bearing frame and impeller as one assembly while the casing and pipework stay in place.

Understanding EN 733 Size Codes

Many European-style designs are built to EN 733, which sets standard dimensions and duty points, so the size code tells you a lot. In a code like 50-32-160:

• 50 is the suction flange size in millimetres.
• 32 is the discharge flange size in millimetres.
• 160 is the nominal impeller diameter in millimetres.

Because the dimensions are standard, an EN 733 pump from one maker can usually replace another with the same code. Always confirm the impeller trim, motor size and seal type as well, since those can differ. Pumps built to American ANSI standards follow a different set of dimensions, so check which standard your old pump used.

Fine-Tuning the Duty

These pumps are easy to adjust once installed:

• Impeller trimming: machining the impeller to a smaller diameter lowers flow and head, which fixes many oversized pumps.
• Speed control: a variable speed drive matches the pump to changing demand.
• Motor change: a motor with a different speed shifts the whole curve.

Before trimming, check the duty carefully. A trimmed impeller cannot be made bigger again.

Seals and Materials

Most use a mechanical seal. Cartridge seals are quicker to fit and easier to get right, while component seals cost less. Gland packing still suits some dirty or abrasive duties.

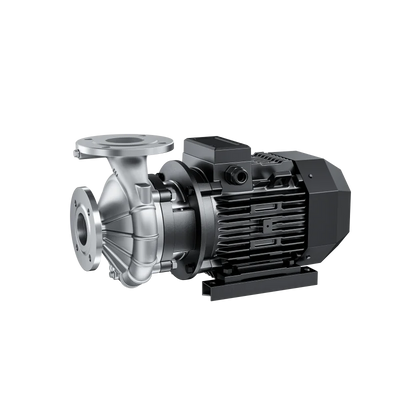

Common materials include cast iron casings with bronze or cast iron impellers for water, and full stainless steel for food, drinking water and many chemicals.

End Suction Pump Specifications to Check

• Size code or flange sizes.
• Flow and head at your duty point.
• Impeller diameter and trim.
• Motor power, speed and mounting style.
• Close-coupled or frame-mounted.
• Seal type and material.
• Fluid type and temperature.

Installation Tips

1. Bolt and grout the baseplate on a solid, level foundation.
2. Support the pipework so no weight sits on the pump flanges.
3. Align the pump and motor shafts after the pipes are connected.
4. Keep a straight run of pipe before the suction flange.
5. Prime the pump fully before the first start.

Poor alignment is one of the most common causes of early seal and bearing failure on frame-mounted units, so recheck it after the first few weeks of running.

Signs Your Pump Needs Attention

Catch these early and a simple repair often saves a full replacement:

• Seal leaks: drips from the seal area that grow over time.
• Falling pressure: worn wear rings or a worn impeller letting liquid slip back inside.
• Rising noise or vibration: misalignment, worn bearings or a damaged impeller.
• Hot bearings: often a sign of poor alignment or the wrong grease.
• Higher power draw: the pump working harder for the same flow.
• A quick pressure and power check against the original pump curve shows how much performance has been lost.

Where End Suction Pumps Work

• Water transfer, boosting and irrigation.
• Heating and chilled water circulation in buildings.
• Cooling towers and process cooling loops.
• Washdown and general plant utilities.
• Light chemical and food transfer in stainless models.

Popular families include the Grundfos NB and NK ranges, along with EN 733 pumps from other leading makers.

End Suction or Another Layout?

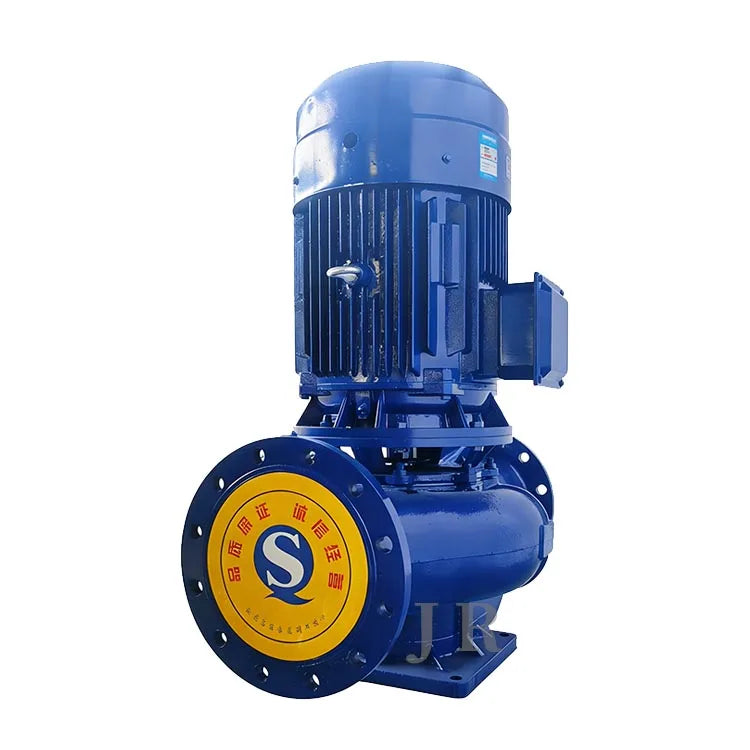

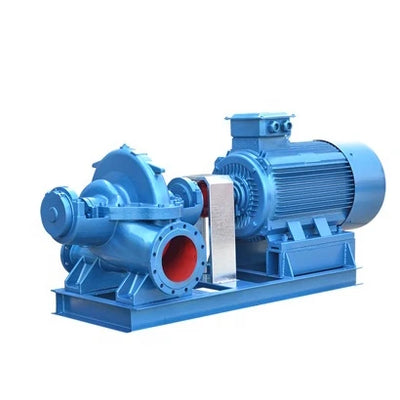

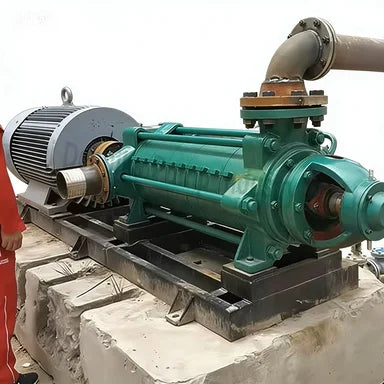

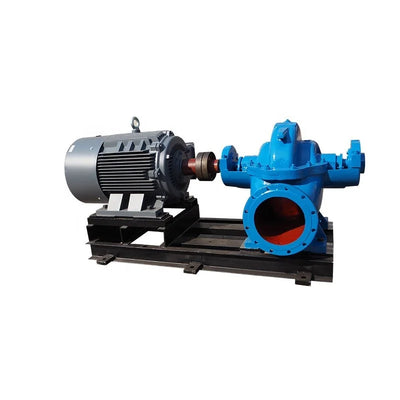

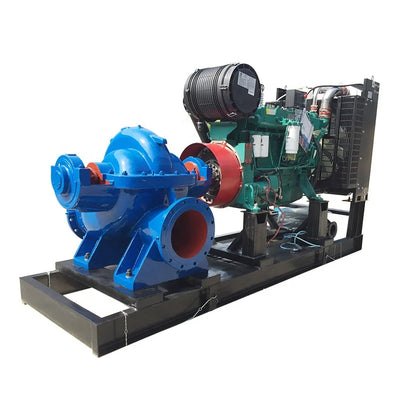

If floor space is tight and the pump must sit in a pipe run, vertical inline pumps may suit you better. For very large flows with easy access for servicing, look at split case pumps. If you need high head from a compact pump, multistage pumps stack several impellers to get there. Unsure? Our pump selection and sizing service will compare the options with you.

What to Send Us

The nameplate usually holds the size code, impeller diameter and motor rating, so a clear photo is the best start. Add the liquid, its temperature, and a note on whether the pump is close coupled or on a baseplate. For new duties, tell us the flow and head you need.
