Hydraulic Filtration and Cooling: Filters, Oil Coolers, Heat Exchangers and Accumulators

Filtration

Filters and Filter Elements

Filters catch the particles that wear pumps and jam valves. Each one has a job:

• Suction strainers: protect the pump inlet from larger debris.
• Pressure filters: guard sensitive valves downstream of the pump.
• Return filters: clean all the oil before it goes back to the tank.

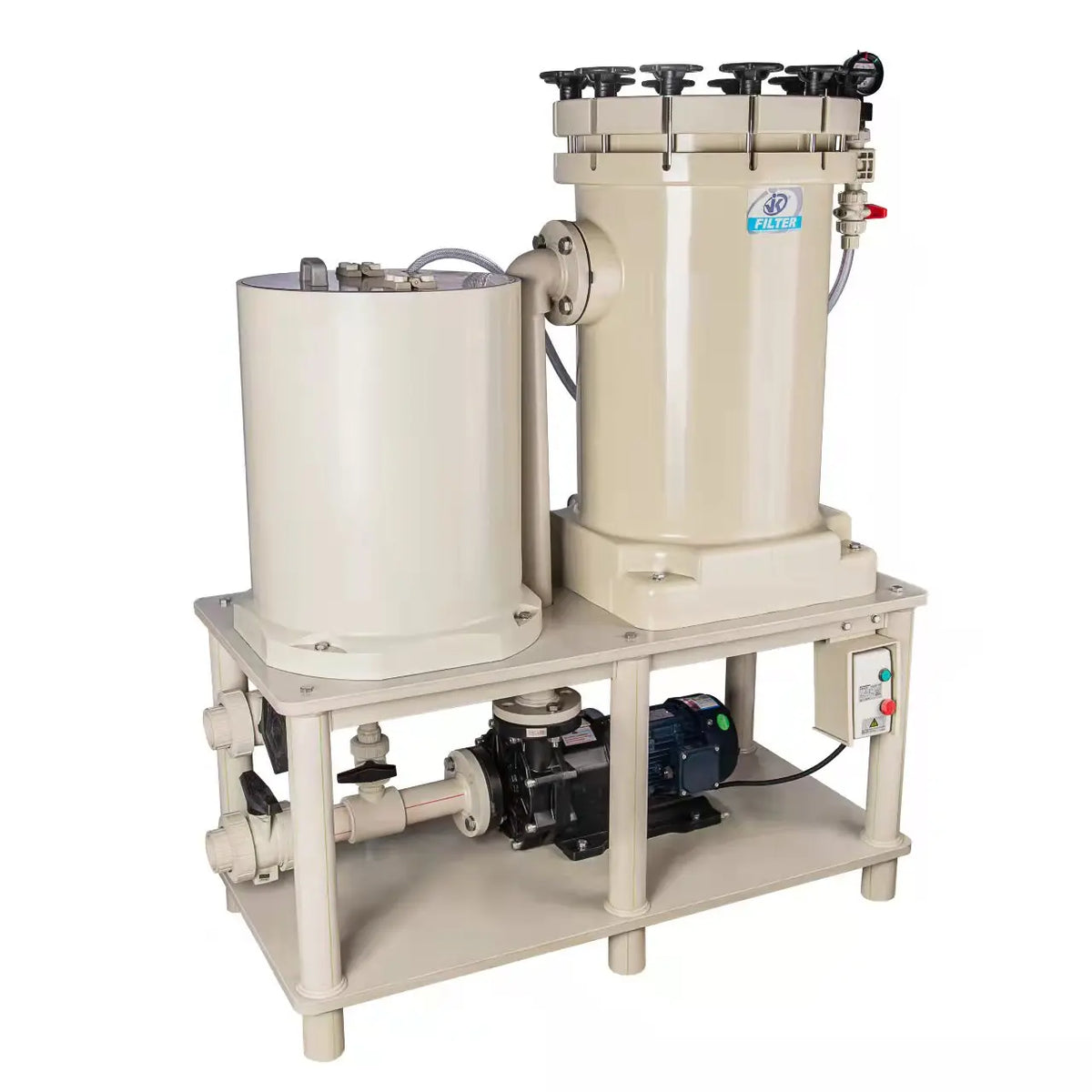

• Offline or kidney loop filters: clean the tank continuously, using a small separate pump.

• Breather filters: stop dust entering the tank as the oil level rises and falls.

Replacement elements come in different micron ratings and media. Match the element number, rating and seal material, not just the size.

Cooling

Oil Coolers

Air blast oil coolers pass oil through a radiator style core while a fan pushes air across it. AC motor fans suit fixed plant, while DC and hydraulic motor fans suit mobile machines. They need no water supply, so they’re simple to run almost anywhere.

Heat Exchangers

Water-cooled heat exchangers remove a lot of heat from a small space. Shell and tube units are tough and easy to service, while plate types are compact and very efficient. They suit plants with a reliable cooling water supply, and they often run quieter than air blast coolers.

Storing Energy and Watching the System

Accumulators and Monitoring

Accumulators store oil under gas pressure to boost flow, absorb shocks, smooth pump pulses and provide emergency power. Bladder, piston and diaphragm types suit different volumes and pressures. Each needs the right nitrogen pre charge, checked regularly. Monitoring parts such as level and temperature gauges, clogging indicators and sensors show how the system is coping.

Reading a Cleanliness Code

Oil cleanliness is usually given as an ISO 4406 code, such as 18/16/13. The three numbers count the particles at 4, 6 and 14 microns, and each step down roughly halves the count. Servo and proportional valves often need around 16/14/11 or cleaner, while gear pumps and simple valves can live with dirtier oil. Pick filters that hold the code your most sensitive part needs.

Sizing Cooling

On many power units, 20 to 30% of the motor’s power ends up as heat in the oil. To size a cooler, you need:

1. The heat load in kW, measured or estimated.
2. The oil flow through the cooler.
3. The highest air or water temperature on site.
4. The oil temperature you want to hold.

Australian summers matter here. A cooler sized for 25 °C air may struggle on a 40 °C day.

Where Clean, Cool Oil Matters Most

• Mining and quarrying: dusty sites, long shifts and big heat loads.
• Steel and metal forming: hot surroundings and fast, heavy presses.
• Plastics: injection moulding machines with servo and proportional valves.
• Mobile plant: compact coolers working hard in the summer heat.
• Water and wastewater: pumps and gates that must start reliably after long idle periods.

Warning Signs

• Clogging indicators showing red, or filters in bypass.
• Oil running above 60 °C, or darkening quickly.
• Rising noise, sluggish valves or more frequent seal leaks.
• Accumulator pre charge dropping between checks.

Our sensors and switches can flag most of these before they turn into failures.

Hydraulic Filtration and Cooling Specifications to Check

• Filter element number, micron rating and media
• Flow rate and pressure rating
• Cooler heat rejection, oil flow and fan power supply
• Water flow and temperature for heat exchangers
• Accumulator volume, pressure rating and pre charge
• Port sizes and seal materials

Why Buy From TSA Hydraulics Engineering

As a hydraulic filtration and cooling supplier, we size filters and coolers around your real heat load and cleanliness target, not just the old part. You get OEM or equivalent options, and help sourcing hydraulic filtration and cooling replacement parts such as elements, fan motors, bladders and seal kits. We tell you upfront whether a part is genuine or an equivalent.
