SAMSON 6109-1001010 I/P Converter Module for Type 4763 Valve Positioners
The SAMSON 6109-1001010 I/P Converter Module is designed for electrical-to-pneumatic signal conversion in compatible SAMSON industrial valve positioners.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview

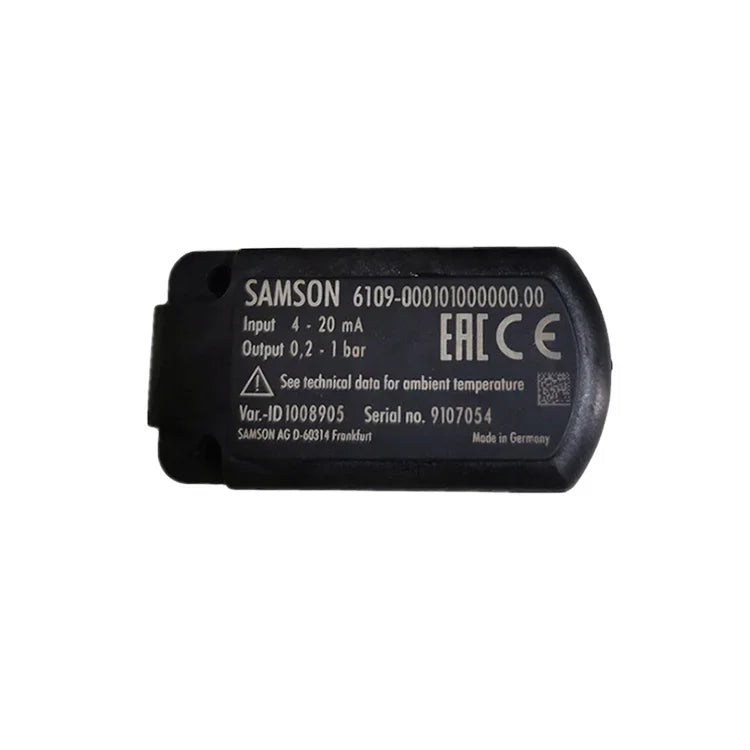

The SAMSON 6109-1001010 I/P Converter Module is designed for electrical-to-pneumatic signal conversion in compatible SAMSON industrial valve positioners. Manufactured under the SAMSON brand, this electropneumatic component converts an electrical control signal into a proportional pneumatic pressure signal, enabling accurate actuator positioning and responsive control valve operation. Its compact construction supports integration into compatible valve positioner assemblies used in industrial process automation.

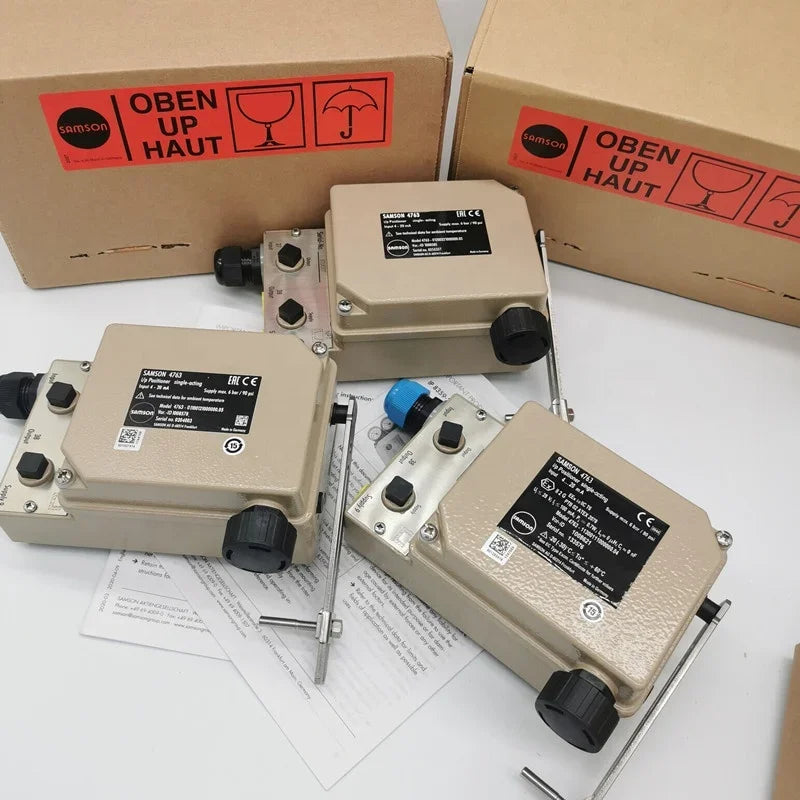

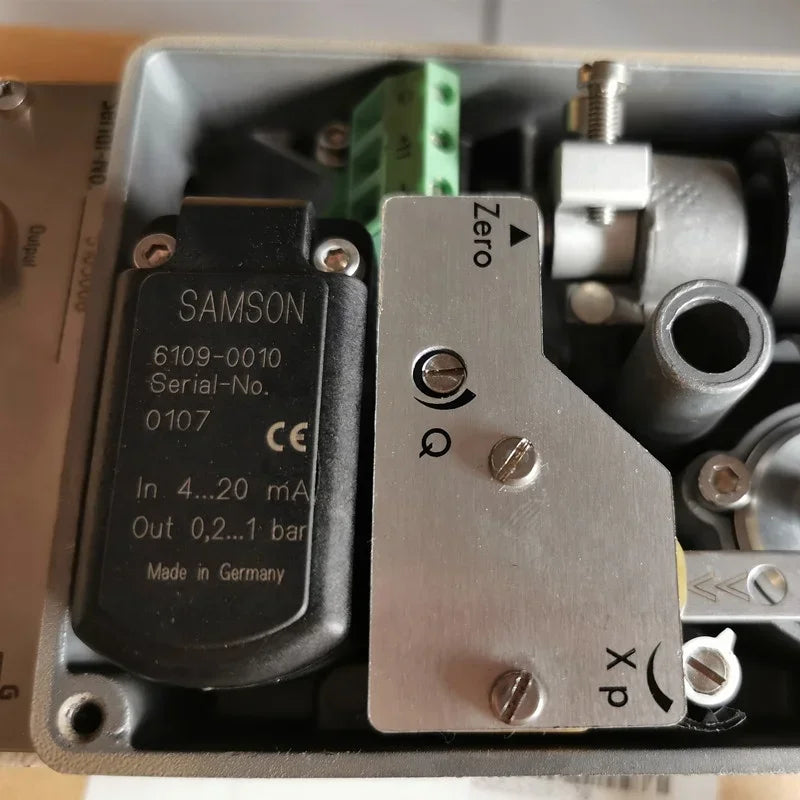

Part of the SAMSON Type 6109 I/P converter family, the 6109-1001010 is associated with SAMSON Type 4763 electropneumatic valve positioning systems. The Type 6109 converter provides the electrical-to-pneumatic interface, while the complete Type 4763 positioner uses mechanical feedback, a nozzle-and-flapper mechanism, and pneumatic amplification to control valve travel. This component is suitable for instrument maintenance, converter replacement, and servicing compatible valve positioners used in chemical processing, oil and gas facilities, power generation, water treatment, and industrial manufacturing.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic I/P Converter Module |
|
Manufacturer / Brand |
SAMSON |
|
Main Model |
6109-1001010 |
|
Product Series |
Type 6109 |
|
Product Type |
Current-to-Pressure Converter |
|
Component Category |
Valve Positioner Spare Parts |
|
Operating Technology |
Electropneumatic |
|
Primary Function |
Electrical-to-Pneumatic Signal Conversion |
|
Control Principle |
Electromagnetic Signal Conversion |
|
Electrical Control |
DC Current Signal |
|
Typical Input Signal |
4–20 mA in Compatible Configurations |
|
Pneumatic Output |
Proportional Instrument Air Pressure |
|
Compatible Positioner Family |
SAMSON Type 4763 |
|
Additional Compatible Positioner Family |
SAMSON Type 3760, Subject to Configuration |
|
Installation Configuration |
Internal I/P Converter Component |
|
Actuator Application |
Pneumatically Operated Industrial Control Valves |
|
Pneumatic Medium |
Clean, Dry Instrument Air |
|
Related Part Numbers |
6109-0001010, 6109-1010, 6109-0101, 6109-0460, 6109-04020103 |
|
Application Scope |
Industrial Instrumentation and Valve Positioner Maintenance |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Electropneumatic I/P converter module identified by part number 6109-1001010.
-
Designed for electrical-to-pneumatic control signal conversion in compatible SAMSON positioners.
-
Supports proportional pneumatic pressure generation from an electrical current input.
-
Associated with the SAMSON Type 4763 electropneumatic valve positioner family.
-
Type 6109 converter technology is also used in selected SAMSON Type 3760 configurations.
-
Supports accurate pneumatic positioning through the complete positioner's feedback control system.
-
Compact module construction for installation in compatible positioner housings.
-
Suitable for replacing worn or malfunctioning I/P converter components.
-
Helps restore control signal conversion during industrial instrument maintenance.
-
Designed to operate with appropriately conditioned compressed instrument air.
-
Supports industrial valve automation and process control applications.
-
Part-number identification assists maintenance teams with spare-parts procurement.
-
Suitable for planned shutdown servicing and instrumentation refurbishment.
-
Provides an alternative to replacing the entire positioner when the converter module alone requires servicing.
Typical Applications
-
SAMSON Type 4763 valve positioner servicing
-
Compatible SAMSON Type 3760 instrument maintenance
-
I/P converter component replacement
-
Industrial electropneumatic signal conversion
-
Pneumatic control valve instrumentation
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing automation
-
Control valve maintenance and refurbishment
-
Instrumentation repair workshops
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
