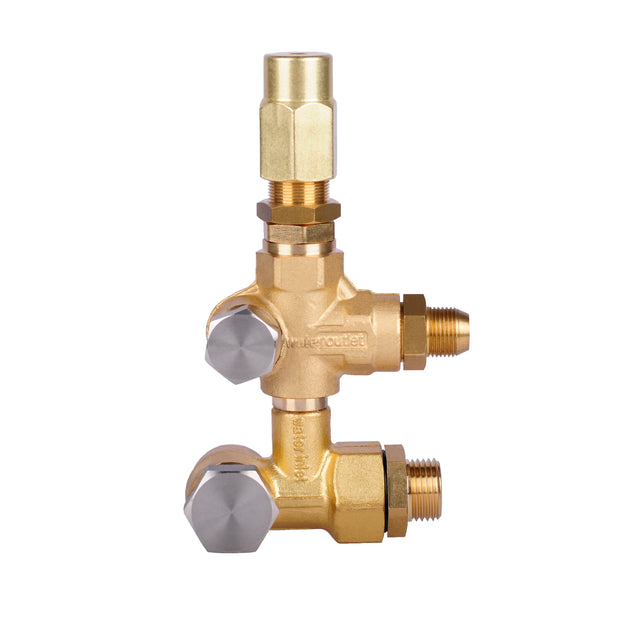

250 Bar Pressure Unloader Valve, 25 L/min Brass Bypass Regulator 3600 PSI
This brass bypass unloader valve is designed for precise pressure regulation in sprayer and high-pressure cleaning systems.
- Bypass / Regulator Valve Valve Type
- 400 Bar Max Pressure
- 25 L/min Max Flow Rate
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
This brass bypass unloader valve is designed for precise pressure regulation in sprayer and high-pressure cleaning systems. It automatically diverts flow when pressure exceeds set limits, protecting pumps and ensuring stable system operation.
Built with a thicker brass body for enhanced durability, the valve offers reliable performance under demanding conditions. Its flexible bypass configuration supports both 1/2" and 1/4" connections, making it adaptable to various system setups.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pressure Unloader Valve |
| Valve Type | Bypass / Regulator Valve |
| Type | Sprayer |
| Material | Brass |
| Max Flow Rate | 25 L/min |
| Working Pressure | 250 Bar (3600 PSI) |
| Max Pressure | 400 Bar |
| Bypass Size | 1/2" or 1/4" |
| Weight | 0.55 kg |
| Condition | New |
| Operation Mode | Automatic |
| Control Type | Mechanical Adjustment |
| Installation Type | Inline |
| Medium | Water |
| Construction Feature | Thickened Brass Body |
| Application Scope | Industrial & Sprayer Systems |
| Warranty | 1 Year |
Key Features
- Durable thickened brass construction
- Supports high pressure up to 250 bar (3600 PSI)
- Maximum pressure tolerance up to 400 bar
- Adjustable bypass with 1/2" or 1/4" compatibility
- Automatic pressure regulation and safety control
- Compact and easy to install
Typical Applications
- Agricultural sprayer systems
- Industrial pressure washers
- High-pressure cleaning equipment
- Water distribution and control systems
- Surface cleaning and maintenance
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
