250 Bar Pressure Washer Unloader Valve, Brass Auto Bypass Regulator 3600 PSI
This high-pressure unloader valve is designed to regulate and stabilize pressure in professional pressure washer systems.
- Bypass / Unloader Valve Valve Type
- 250 Bar (3600 PSI) Max Pressure
- Automatic (Auto Cut / Total Stop) Operation Mode
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

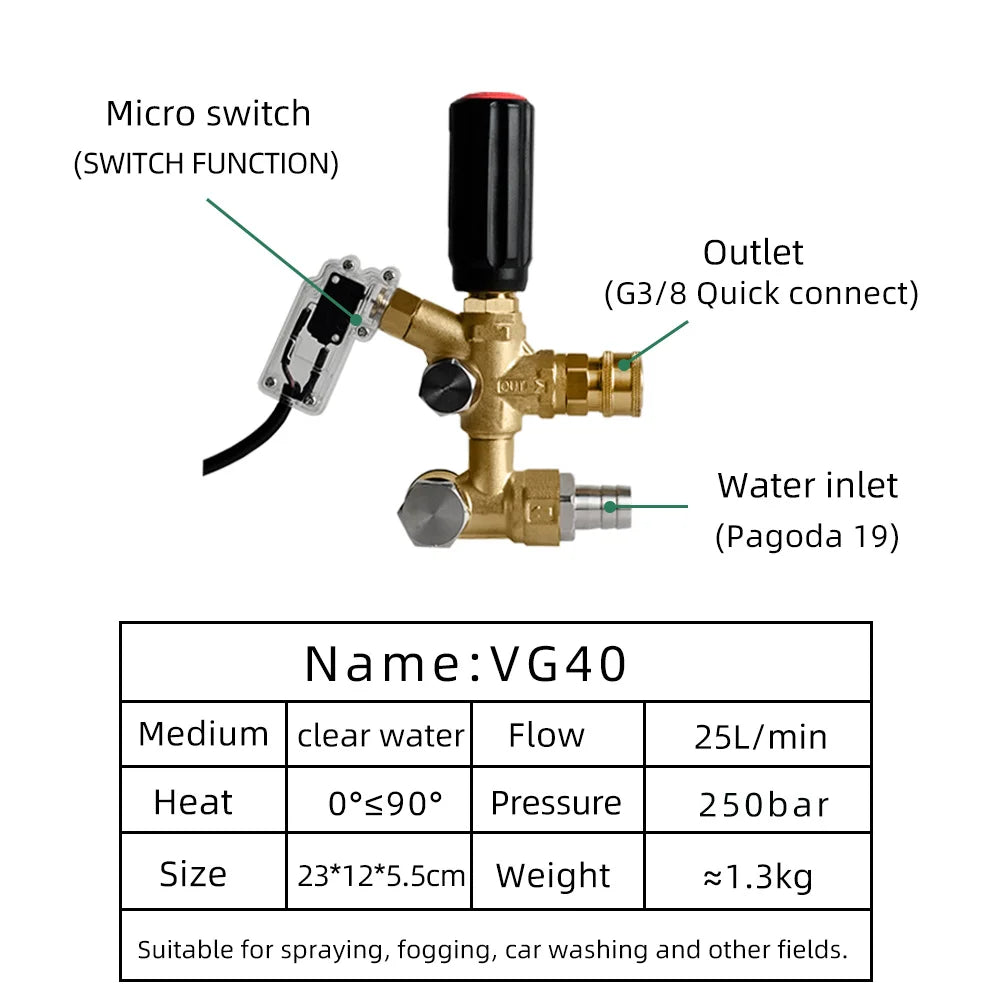

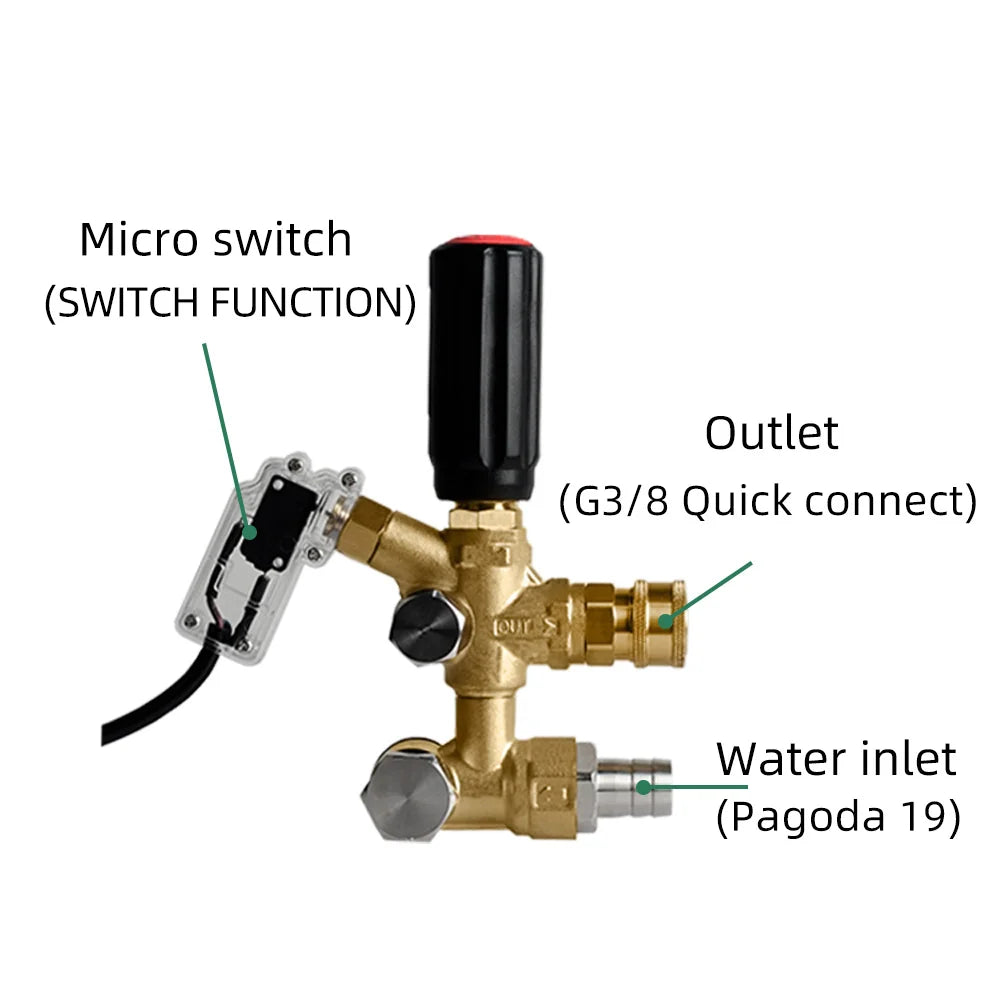

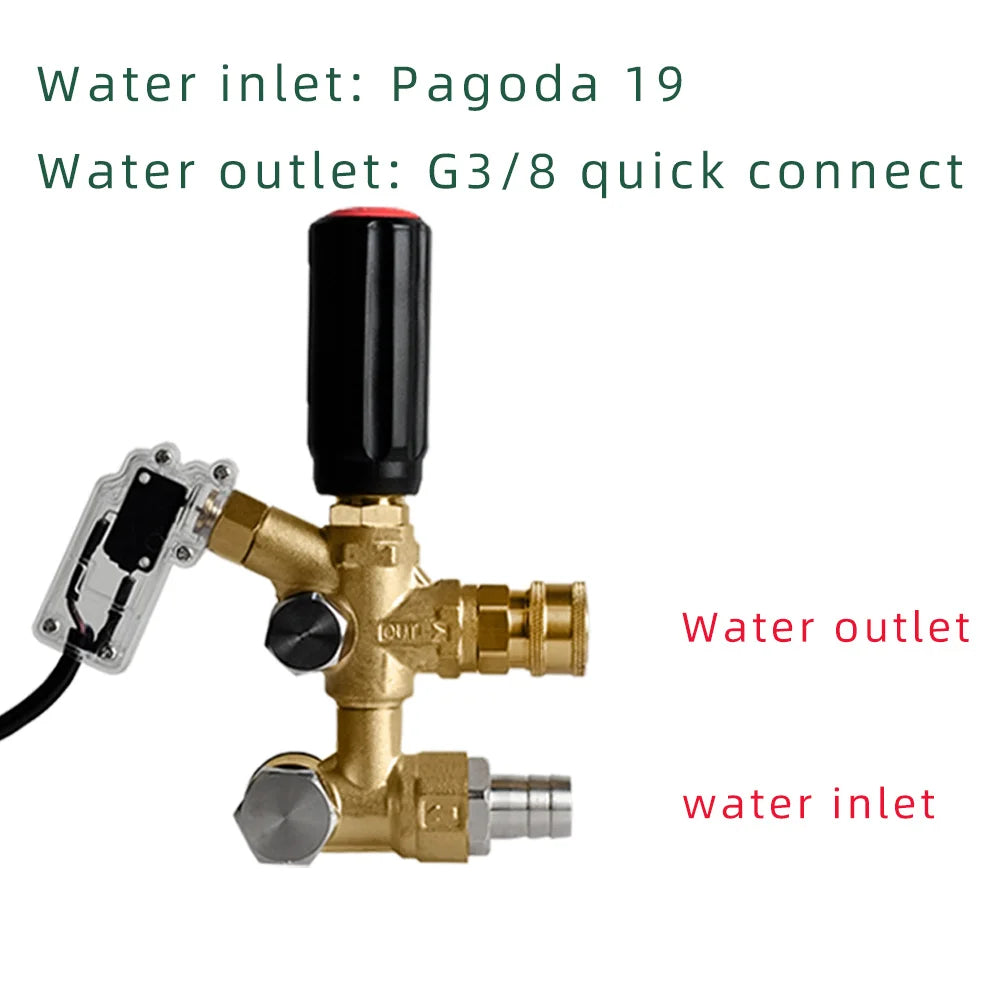

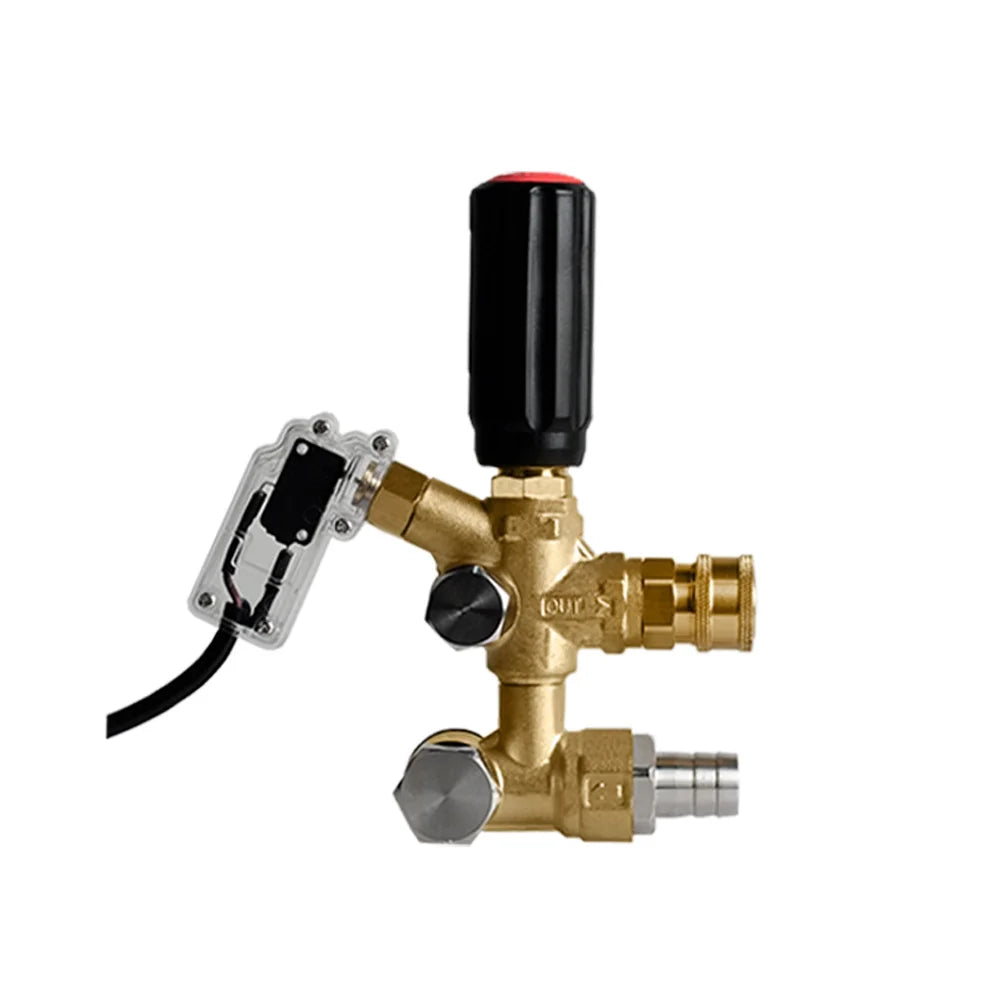

This high-pressure unloader valve is designed to regulate and stabilize pressure in professional pressure washer systems. Featuring an automatic bypass function, it redirects flow when the trigger is released, preventing pressure buildup and protecting the pump.
Constructed from durable brass, the valve ensures long service life and reliable performance under demanding conditions. Its auto cut function enhances system efficiency and safety, making it suitable for industrial and commercial cleaning applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pressure Washer Unloader Valve |
| Valve Type | Bypass / Unloader Valve |
| Material | Brass |
| Max Pressure | 250 Bar (3600 PSI) |
| Function | Pressure Regulation & Flow Bypass |
| Operation Mode | Automatic (Auto Cut / Total Stop) |
| Control Type | Mechanical Adjustment |
| Installation Type | Inline |
| Medium | Water |
| Corrosion Resistance | Yes (Brass Construction) |
| Safety Function | Pressure Relief / Pump Protection |
| Application Scope | Industrial & Commercial |
| Warranty | 12 Months |
Key Features
- High-pressure rating up to 250 bar (3600 PSI)
- Automatic bypass system for pressure control
- Auto cut function for improved efficiency and safety
- Durable brass construction for long service life
- Protects pumps from pressure overload
- Easy integration into pressure washer systems
Typical Applications
- Industrial pressure washing systems
- Commercial cleaning equipment
- Automotive wash systems
- Surface and equipment cleaning
- Maintenance and facility cleaning
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
