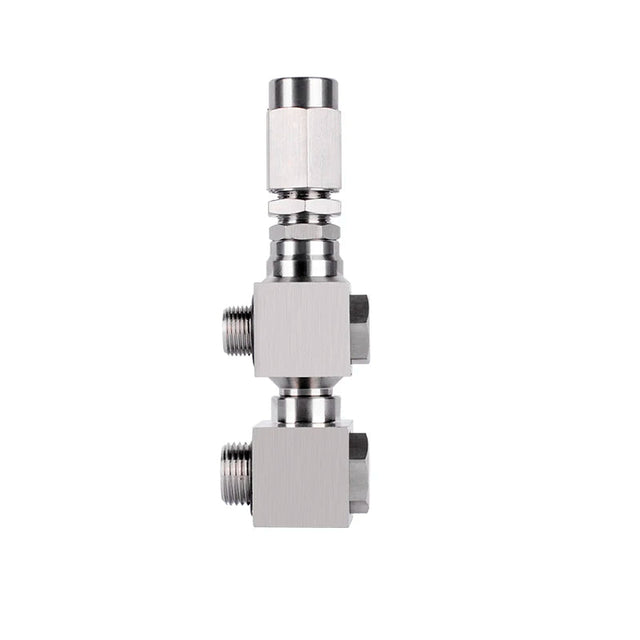

250 Bar Stainless Steel Unloader Valve, SUS304/316 Bypass Regulator for Seawater
This stainless steel bypass unloader valve is specifically designed for high-pressure applications involving seawater and corrosive environments.
- Bypass / Regulator Valve Valve Type
- 350 Bar Max Pressure
- 25 L/min Max Flow Rate
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
This stainless steel bypass unloader valve is specifically designed for high-pressure applications involving seawater and corrosive environments. Manufactured using SUS304/316 materials, it delivers excellent resistance to corrosion, making it ideal for marine and harsh industrial conditions.
With a working pressure of 250 bar and a maximum tolerance of 350 bar, this valve ensures reliable pressure control and system protection. Its robust construction and automatic bypass functionality make it suitable for continuous operation in demanding environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pressure Unloader Valve |
| Valve Type | Bypass / Regulator Valve |
| Type | Sprayer |
| Material | Stainless Steel (SUS304/316) |
| Max Flow Rate | 25 L/min |
| Working Pressure | 250 Bar (3600 PSI) |
| Max Pressure | 350 Bar |
| Weight | 1.5 kg |
| Condition | New |
| Operation Mode | Automatic |
| Control Type | Mechanical Adjustment |
| Installation Type | Inline |
| Medium | Seawater / Water |
| Corrosion Resistance | High (Marine Grade) |
| Inspection | Video Outgoing Inspection Provided |
| Test Report | Not Available |
| Application Scope | Industrial & Marine |
| Warranty | 1 Year |
Key Features
- Marine-grade SUS304/316 stainless steel construction
- Excellent corrosion resistance for seawater applications
- Handles working pressure up to 250 bar (3600 PSI)
- Maximum pressure tolerance up to 350 bar
- Automatic bypass system for pressure regulation
- Durable and reliable in harsh environments
Typical Applications
- Marine and offshore systems
- Seawater desalination systems
- Shipboard pressure systems
- Industrial high-pressure cleaning
- Corrosive fluid handling systems
