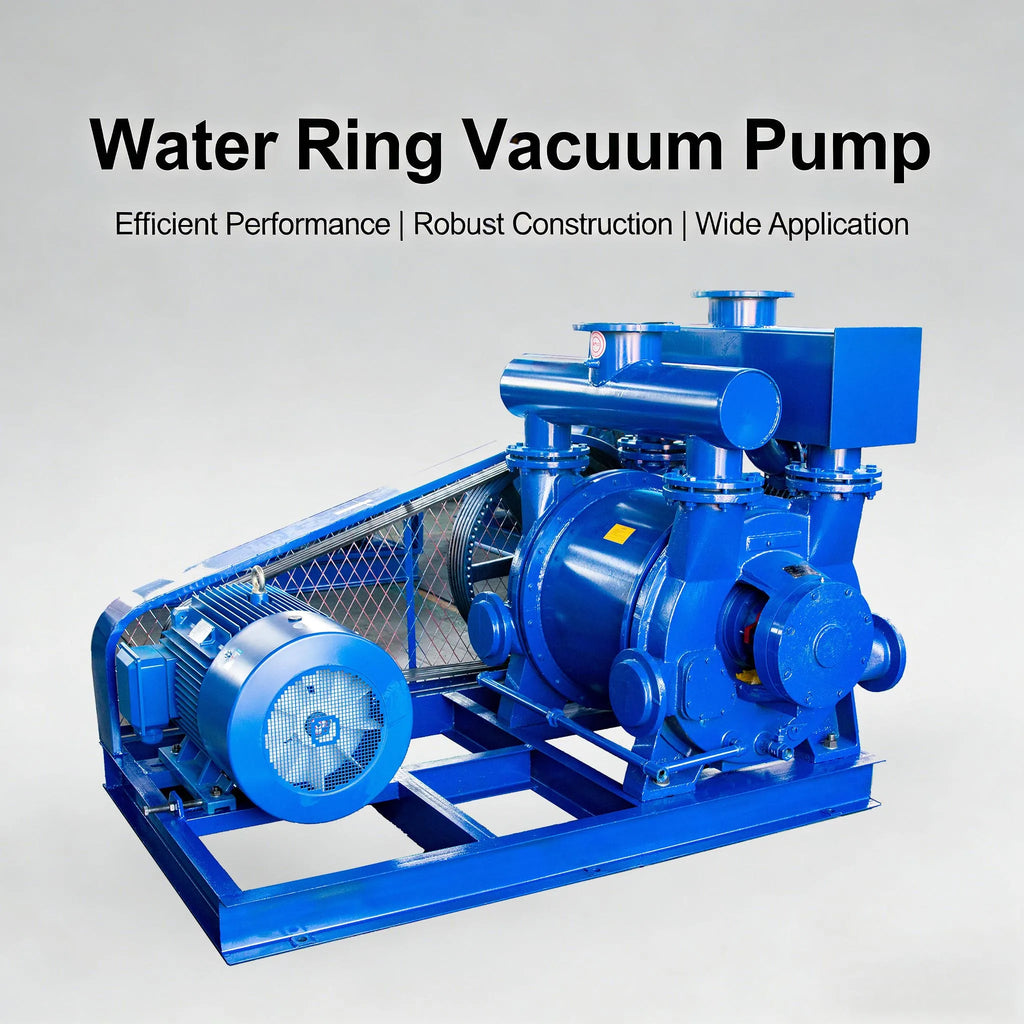

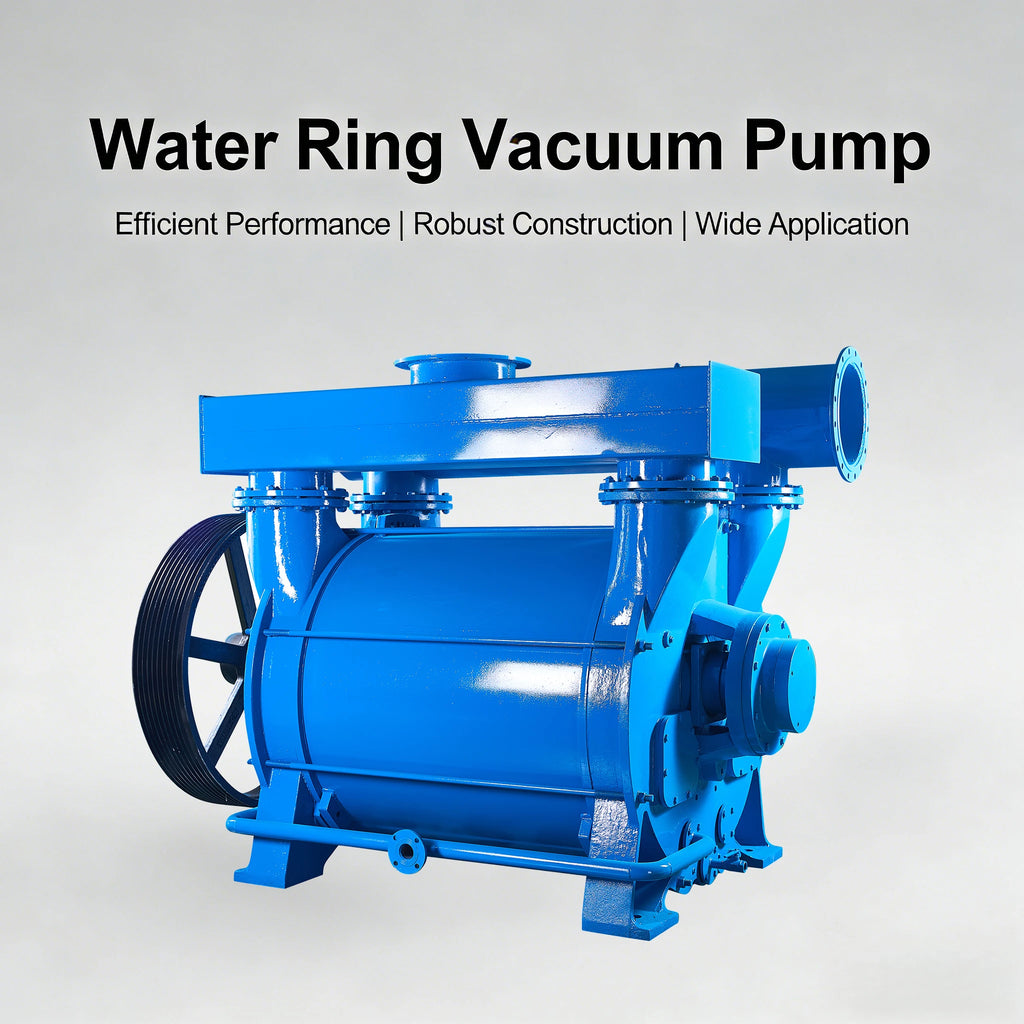

2BE Nash Liquid Ring Vacuum Pump, SS 4–11kW -0.098MPa 5000m³/h
The 2BE Nash liquid ring vacuum pump is a robust industrial vacuum solution designed for filtration, air circulation, and process applications.
- Up to 5000 m³/h Displacement
- 2,000 – 10,000 L/min Flow Rate
- -0.098 MPa Max Continuous Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 2BE Nash liquid ring vacuum pump is a robust industrial vacuum solution designed for filtration, air circulation, and process applications. Utilizing a liquid ring sealing mechanism, it delivers stable vacuum performance when handling wet gases, vapors, and condensable media.
With vacuum levels down to -0.098 MPa and flow capacity up to 5000 m³/h, this pump is ideal for heavy-duty industrial systems requiring continuous and reliable operation.

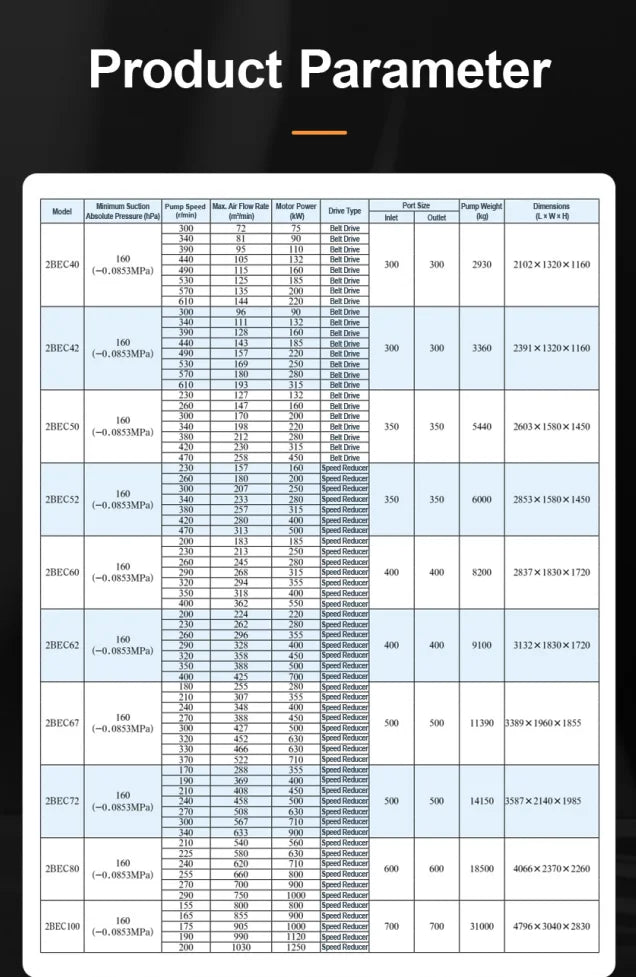

Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Liquid Ring Vacuum Pump |
| Model | 2BE Series |
| Brand | Nash |
| Pump Type | Vacuum Pump |
| Structure | Liquid Ring |
| Pressure | Vacuum Pressure |
| Max Continuous Pressure | -0.098 MPa |
| Operating Pressure | -0.086 MPa |
| Flow Rate | 2,000 – 10,000 L/min |
| Displacement | Up to 5000 m³/h |
| Speed | 1450 RPM |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 4 – 11 kW |
| Voltage | 380V |
| Pump Body Material | Stainless Steel / Cast Iron |
| Impeller Material | Stainless Steel 304 |
| Sealing Material | Stainless Steel |
| Seal Type | Mechanical / Packing |
| Membrane Material | Viton |
| Outlet Size | DN125 / DN200 / DN350 |
| Discharge Size | 1-1/2" |
| Connection Type | Direct Coupling |
| Control Method | Fully Automatic |
| Noise Level | 63 dB |
| Applicable Temperature | 5 – 80°C |
| Suitable Media | Water / Oil Vapors |
| Surface Treatment | Spraying |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Liquid ring design for wet gas handling
- Vacuum capability up to -0.098 MPa
- High flow capacity up to 5000 m³/h
- Stainless steel impeller for durability
- Low noise operation (63 dB)
- Suitable for continuous industrial use
Typical Applications
- Industrial filtration systems
- Air circulation systems
- Chemical processing
- Vacuum systems
- Power plants
- Manufacturing processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
