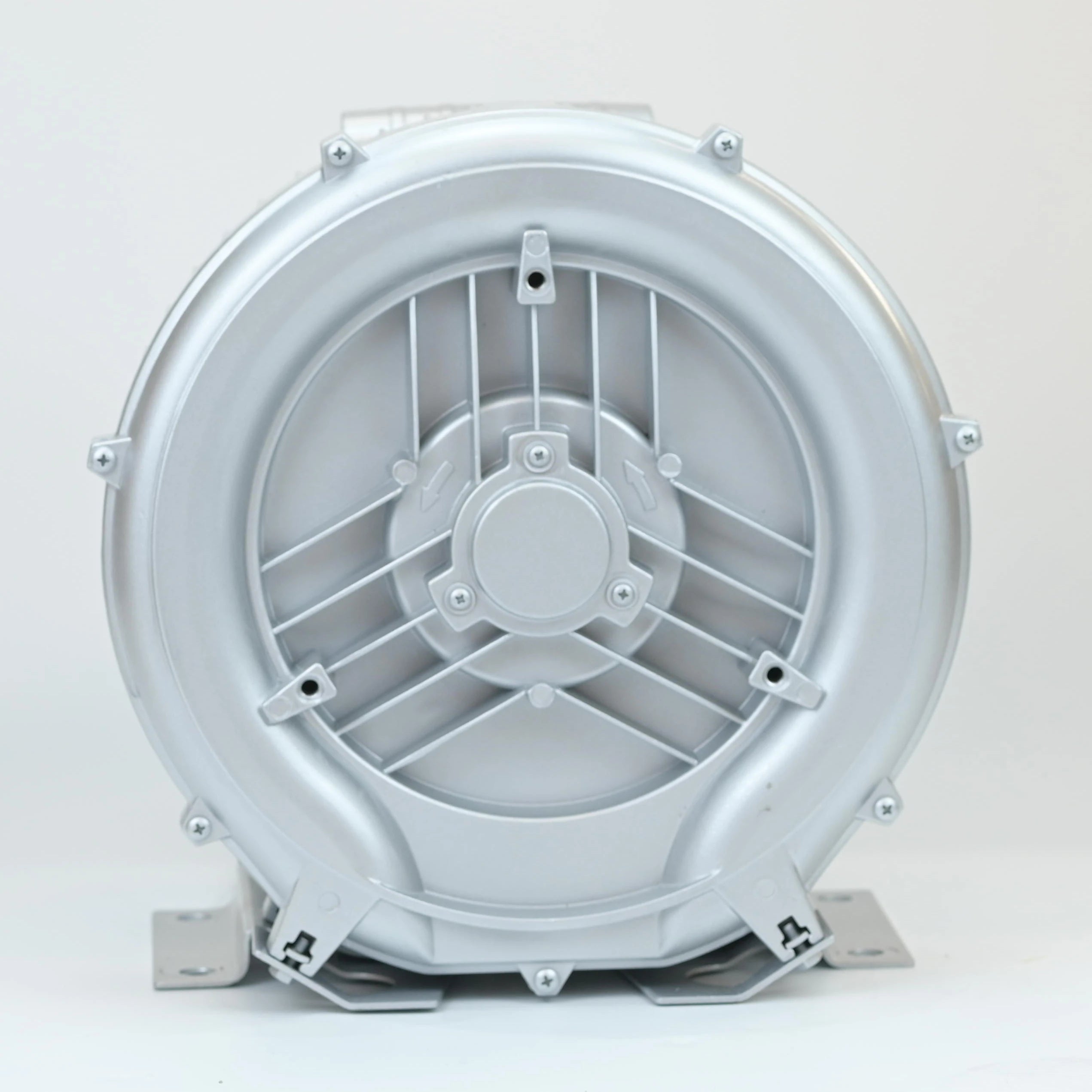

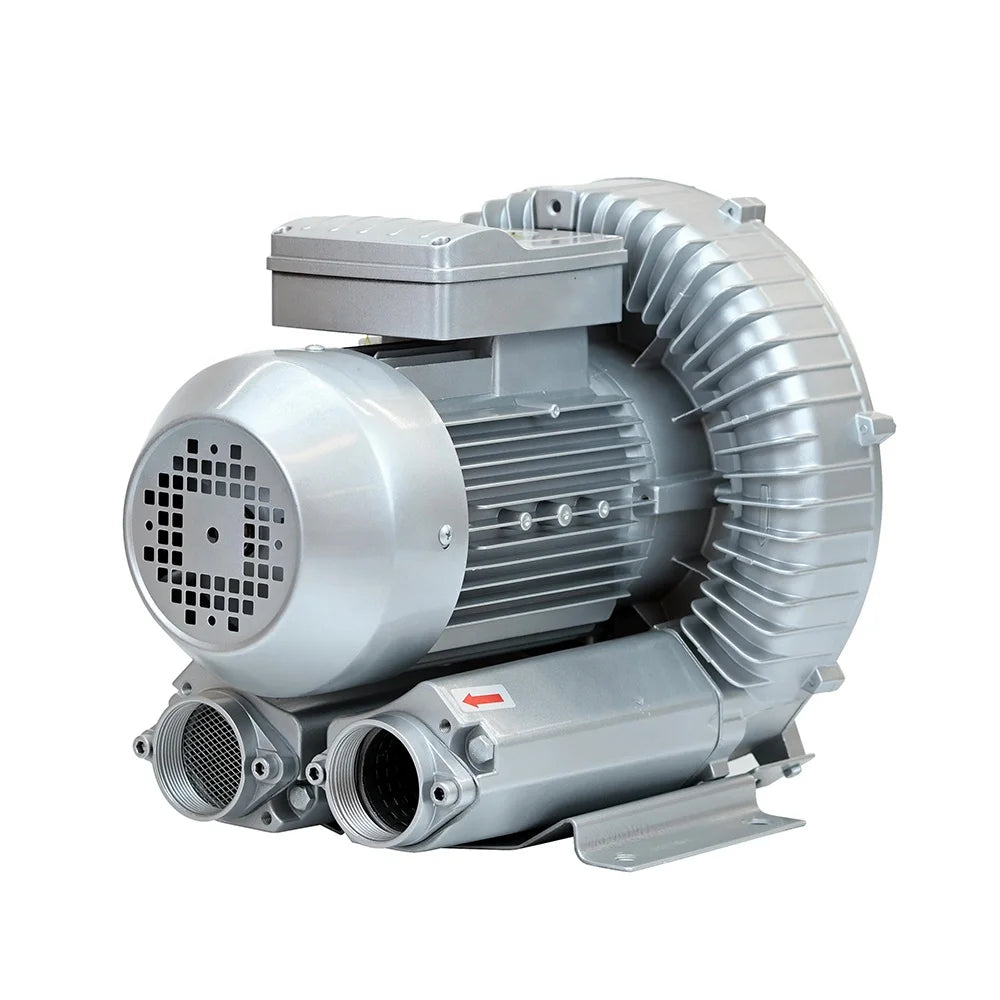

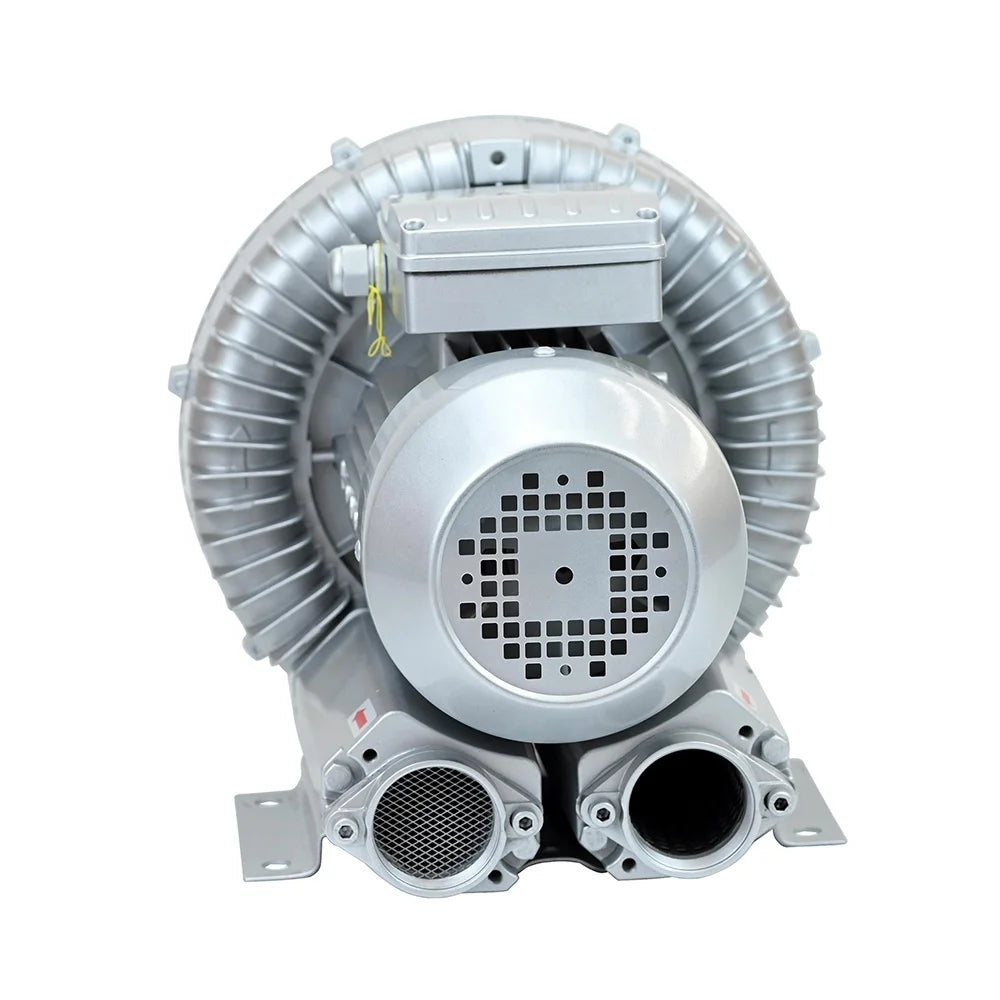

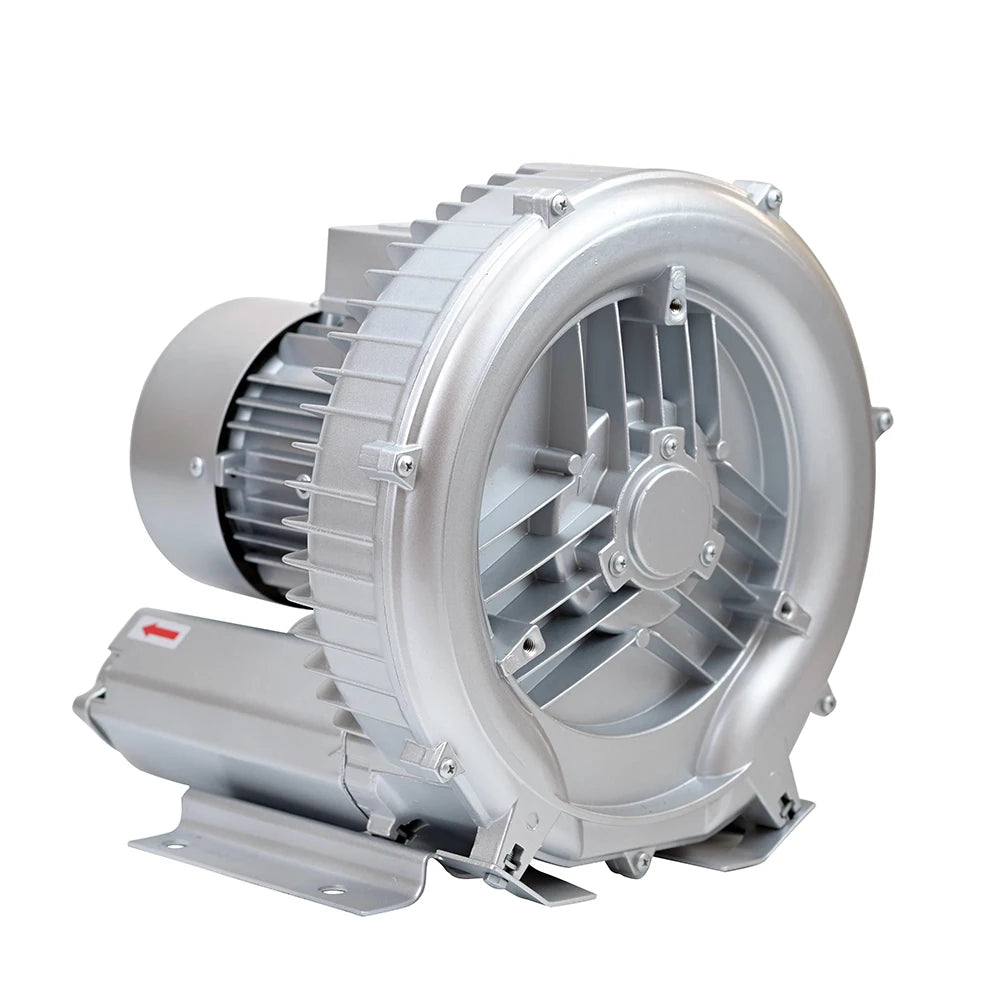

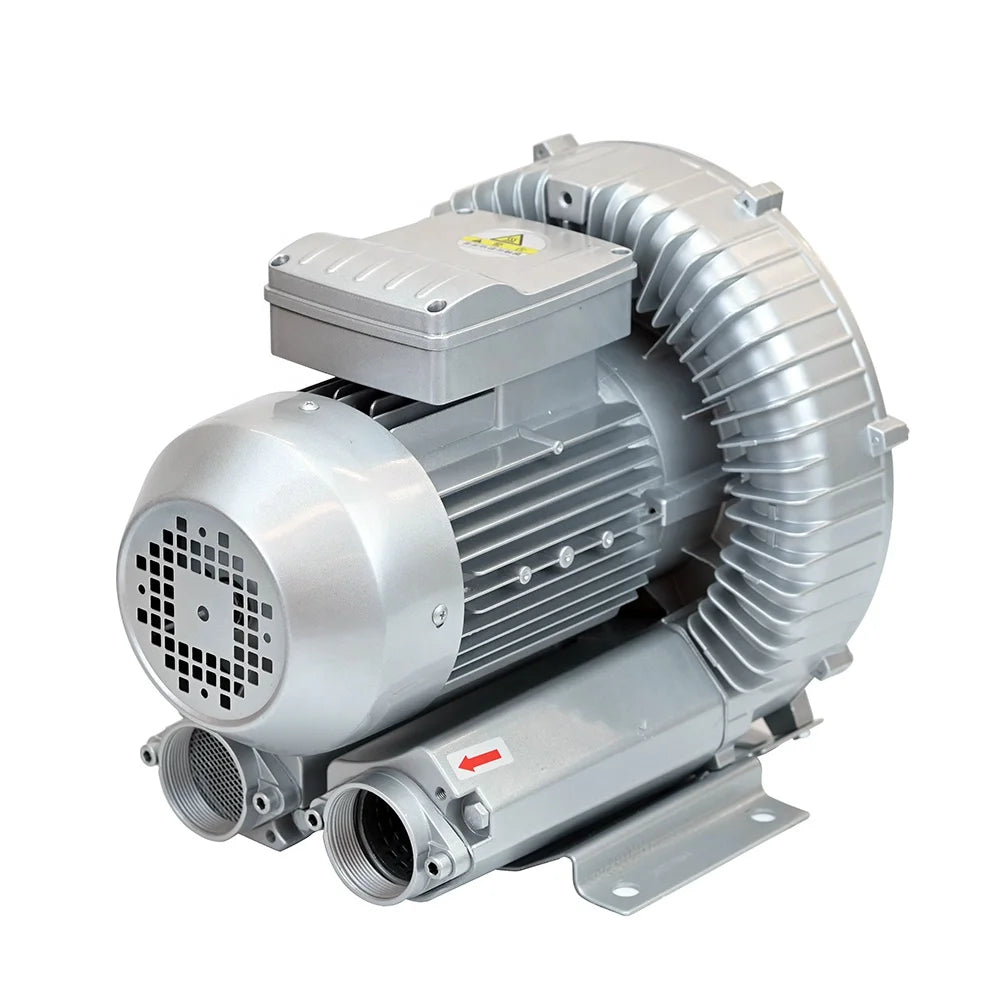

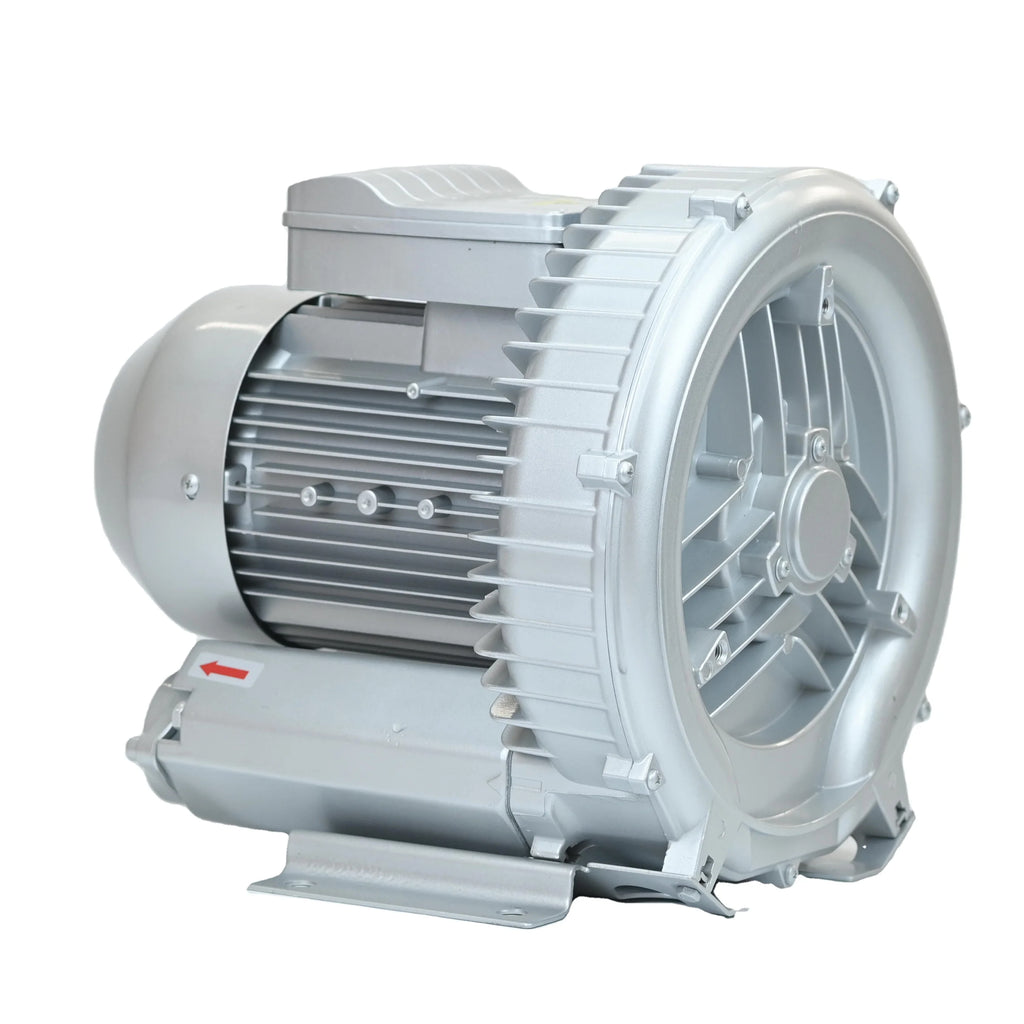

2GH 510-A21 JQT Ring Blower, 1.5kW 220V Single-Phase 210m³/h Vacuum Blower
The 2GH 510-A21 JQT (Golden Bridge) ring blower is a compact and efficient side channel blower designed for vacuum and air supply applications.
- Up to 210 m³/h Flow Rate
- 200 mbar Max Continuous Pressure
- 1.5 kW Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 2GH 510-A21 JQT (Golden Bridge) ring blower is a compact and efficient side channel blower designed for vacuum and air supply applications. Powered by a 1.5 kW single-phase motor, it delivers reliable airflow and vacuum performance for CNC machines, fish pond aeration, and light industrial use.
With airflow up to 210 m³/h and vacuum capability of -190 mbar, this blower ensures stable and efficient operation in continuous-duty environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Ring Blower |
| Model | 2GH 510-A21 |
| Brand | JQT (Golden Bridge) |
| Pump Type | Side Channel Blower |
| Structure | Single-Stage |
| Pressure | Low to Medium Pressure |
| Max Continuous Pressure | 200 mbar |
| Max Vacuum | -190 mbar |
| Flow Rate | Up to 210 m³/h |
| Speed Range | Standard motor speed |
| Motor Type | Single-Phase Motor (100% Copper) |
| Power Source | Electric |
| Power Rating | 1.5 kW |
| Voltage | 220V |
| Frequency | 50 Hz / 60 Hz |
| Pump Body Material | Industrial Alloy |
| Noise Level | 64 dB(A) |
| Outlet Size | Standard |
| Suitable Media | Air |
| Weight | Approx. 24 kg |
| Color | Silver |
| MOQ | 1 Set |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Compact 1.5 kW single-phase design
- Airflow up to 210 m³/h
- Vacuum capability up to -190 mbar
- Low noise operation at 64 dB(A)
- 100% copper motor for durability
- Suitable for continuous operation
Typical Applications
- CNC engraving machines
- Fish pond aeration
- Vacuum systems
- Air supply systems
- Water treatment
- Industrial ventilation
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
