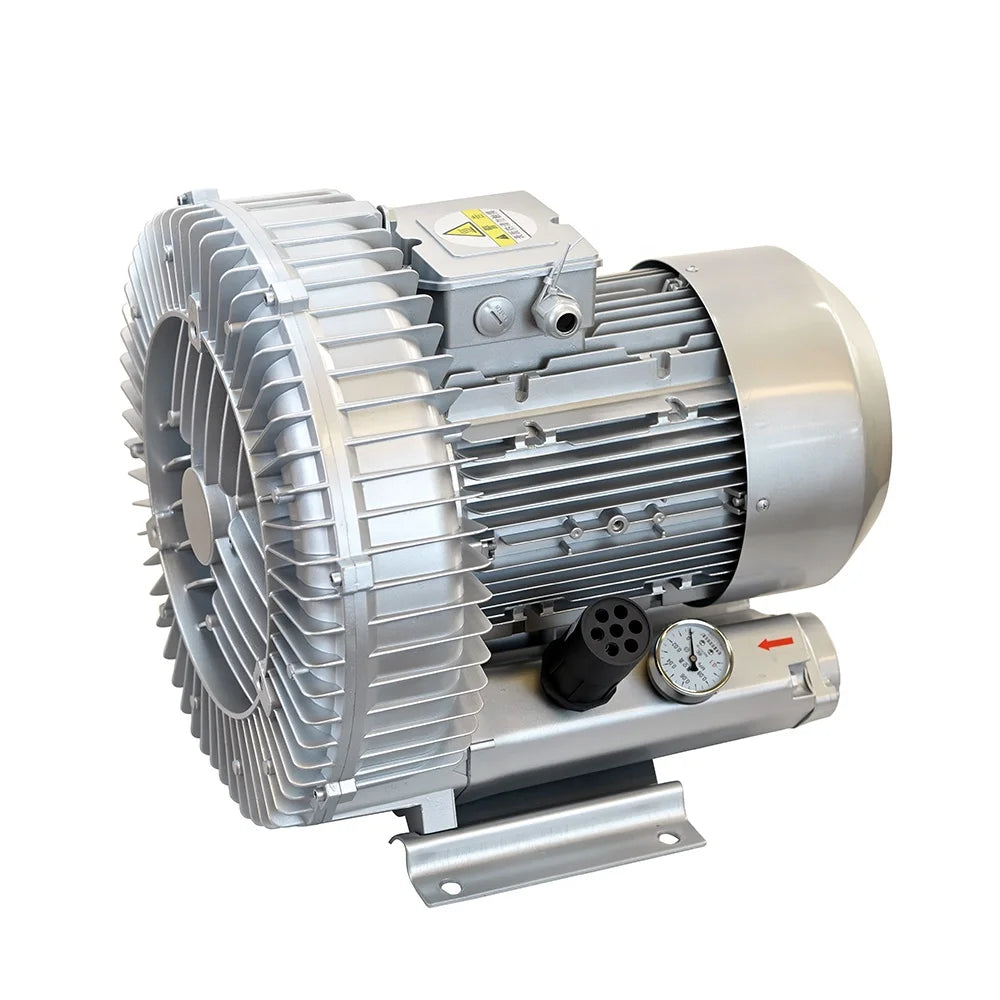

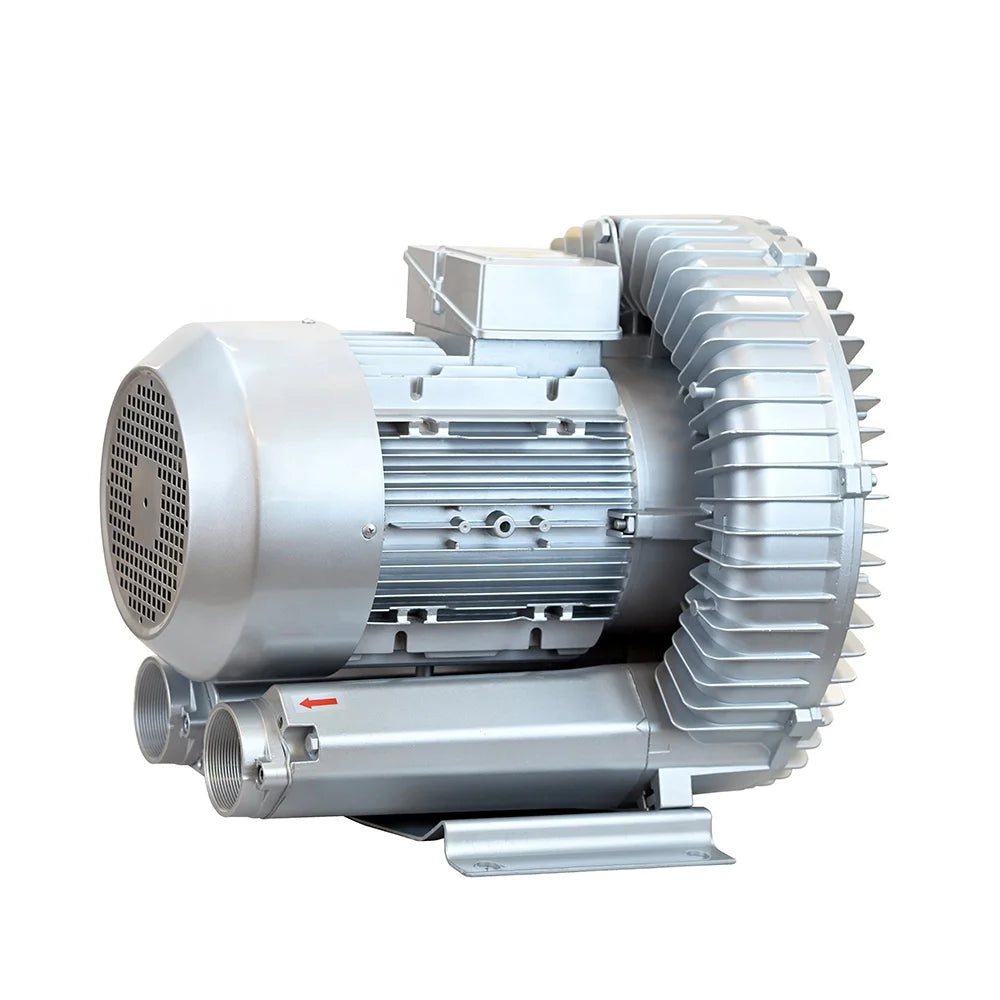

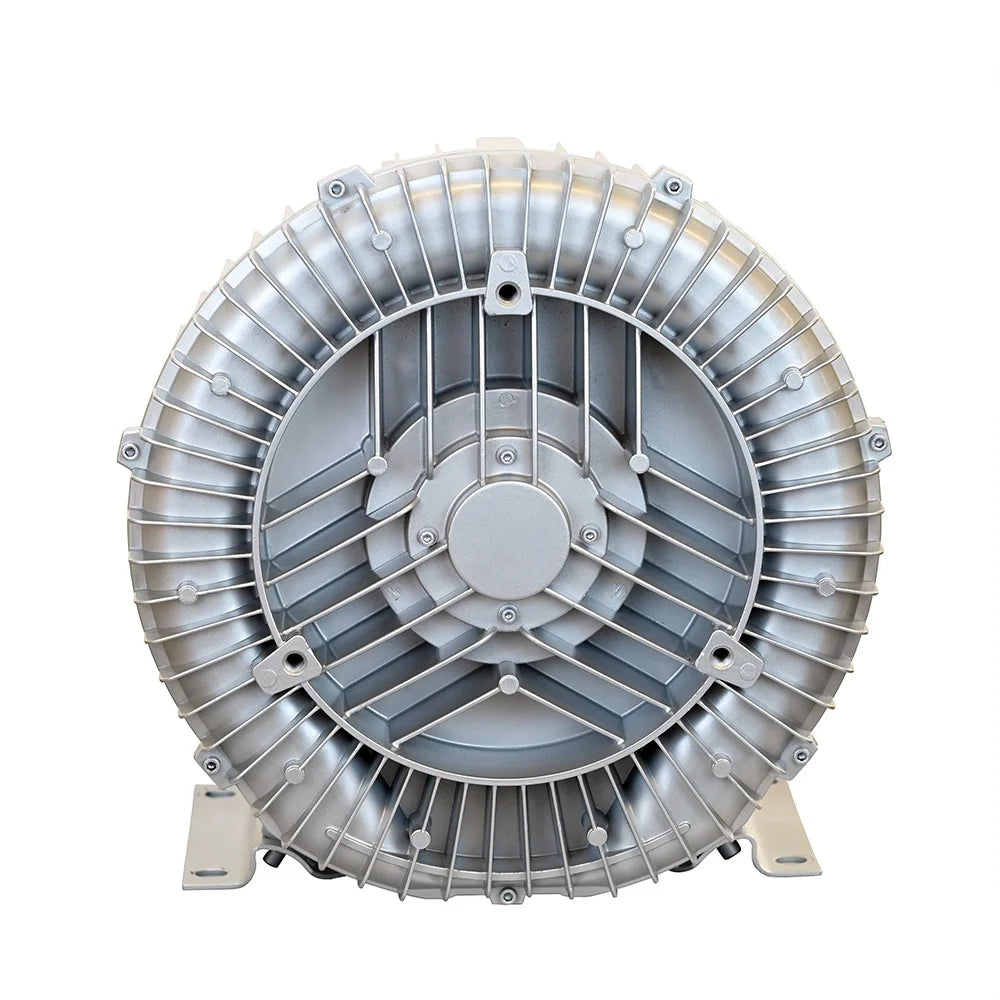

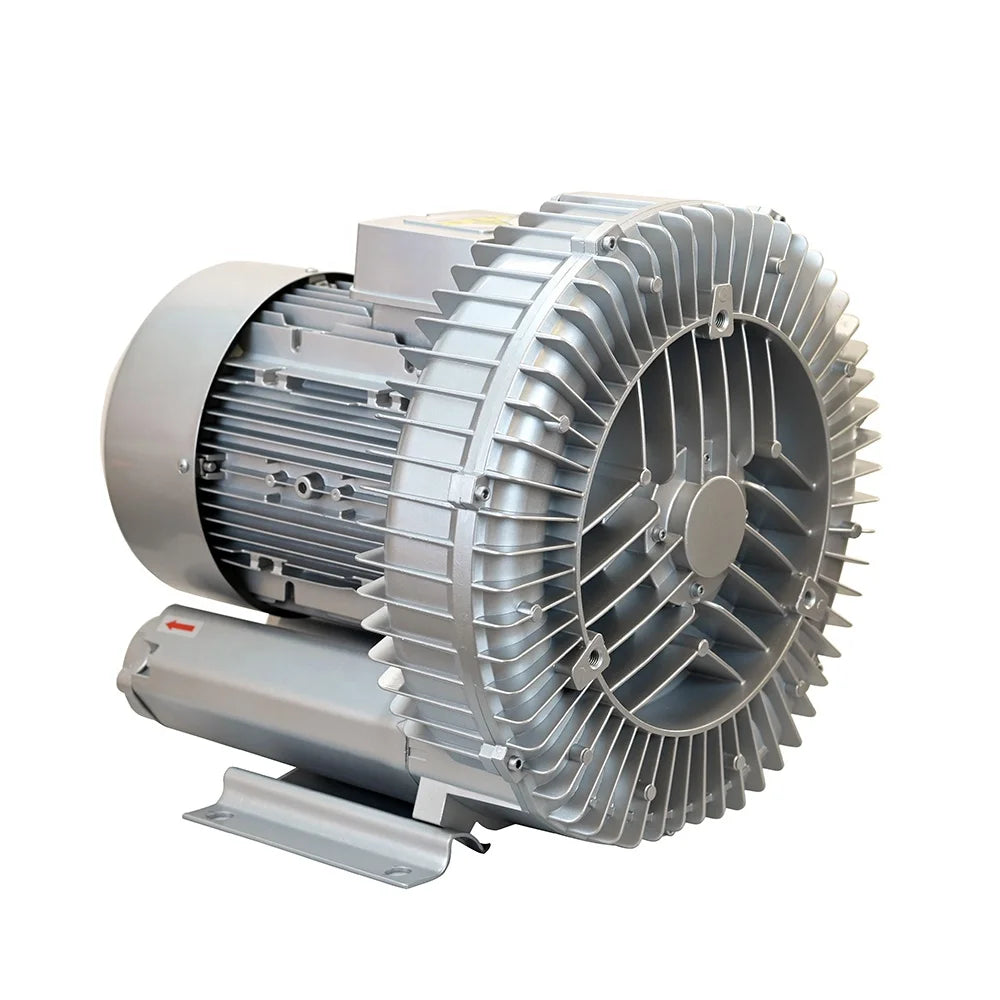

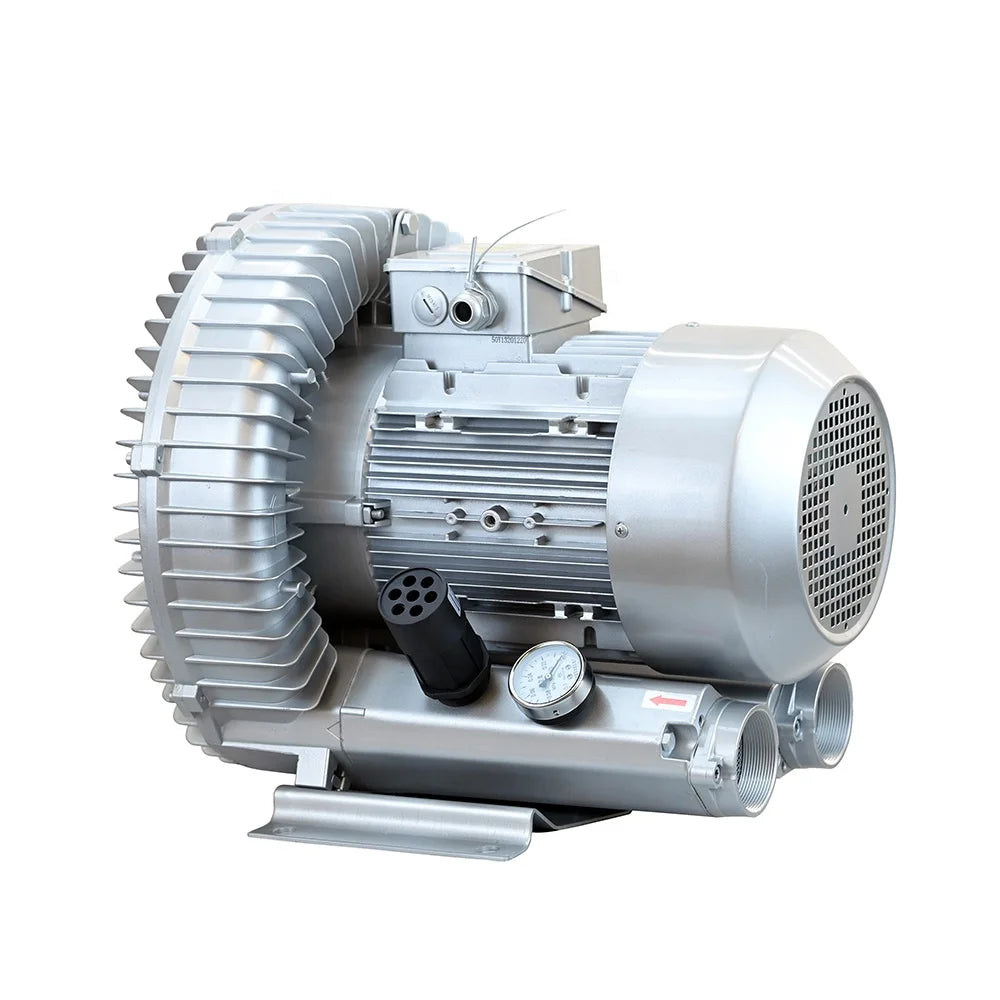

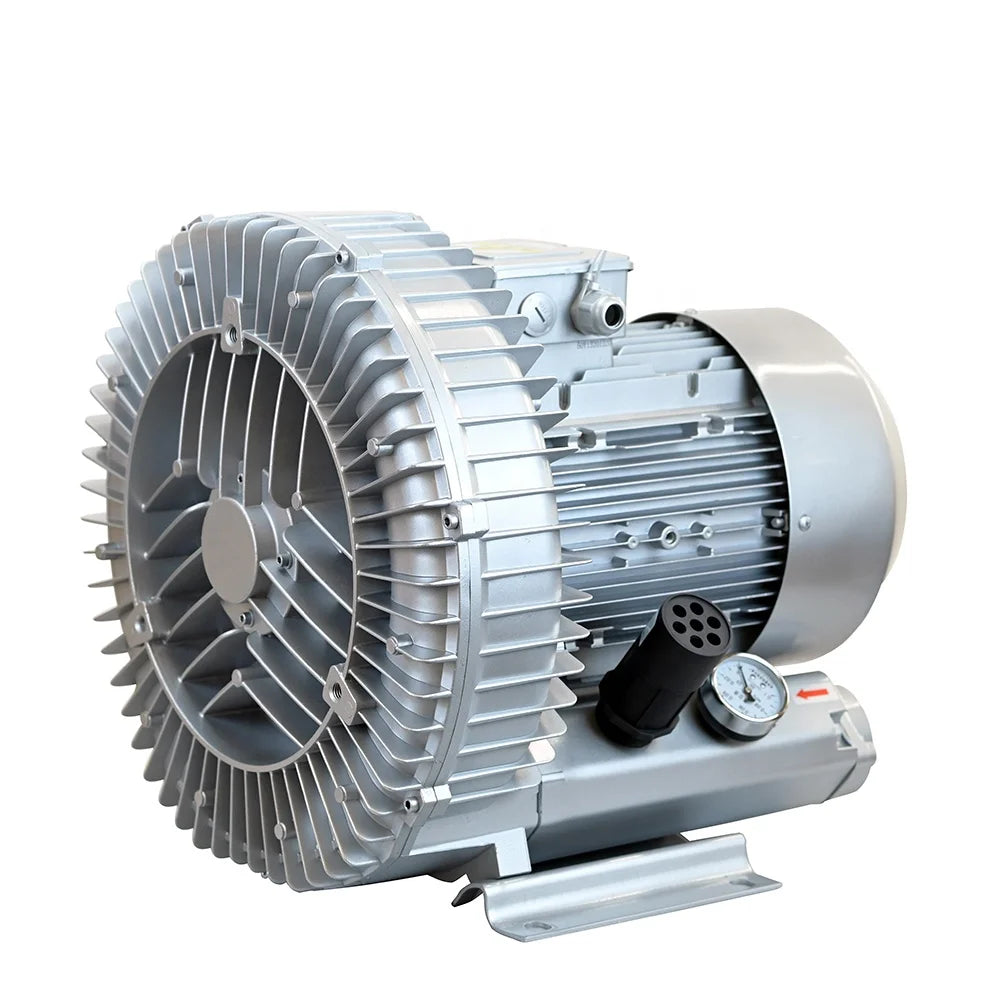

2GH 810-H17 Golden Bridge Vortex Air Blower, 5.5kW 30kPa Ring Blower
The 2GH 810-H17 Golden Bridge (JQT) vortex air blower is a high-performance single-stage ring blower designed for industrial air movement, vacuum, and pressure applications.
- 530 – 620 m³/h Flow Rate
- 30 kPa / 28 kPa Max Continuous Pressure
- 5.5 kW (7.3 HP) Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 2GH 810-H17 Golden Bridge (JQT) vortex air blower is a high-performance single-stage ring blower designed for industrial air movement, vacuum, and pressure applications. With a rated power of 5.5 kW and maximum pressure up to 30 kPa, it delivers reliable airflow for demanding environments.
Capable of producing up to 620 m³/h output and vacuum levels of -30 kPa, this blower is ideal for wastewater treatment, vacuum systems, and industrial processes requiring consistent air supply.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Vortex Air Blower |
| Model | 2GH 810-H17 |
| Brand | Golden Bridge (JQT) |
| Pump Type | Ring Blower |
| Structure | Single-Stage |
| Pressure | High Pressure |
| Max Continuous Pressure | 30 kPa / 28 kPa |
| Max Vacuum | -30 kPa |
| Flow Rate | 530 – 620 m³/h |
| Speed Range | Standard motor speed |
| Motor Type | Three-Phase Motor |
| Power Source | Electric |
| Power Rating | 5.5 kW (7.3 HP) |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 380V |
| Pump Body Material | Industrial Alloy |
| Outlet Type | Open Port |
| Certification | CE |
| Weight | 63 kg |
| Color | Silver |
| MOQ | 1 Set |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- High pressure up to 30 kPa
- Vacuum capability up to -30 kPa
- Airflow up to 620 m³/h
- 5.5 kW high-performance motor
- Reliable continuous-duty operation
- Suitable for industrial and environmental systems
Typical Applications
- Wastewater treatment
- Water treatment systems
- Vacuum packaging
- CNC router systems
- Fish pond aeration
- Industrial ventilation
- Gas boosting and analysis
- Printing and packaging industries
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
