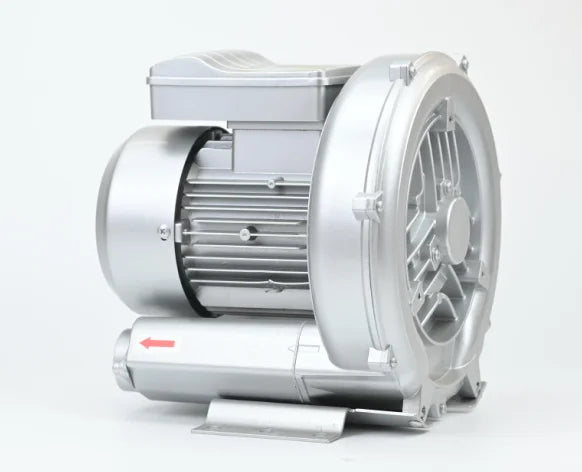

2GH310-A11 JQT Ring Blower, 0.7–0.8kW 220V 130m³/h Side Channel Blower
The 2GH310-A11 JQT (Golden Bridge) ring blower is a compact, high-efficiency side channel blower designed for air delivery and vacuum applications.
- 110 – 130 m³/h Flow Rate
- 15 – 16 mbar Max Continuous Pressure
- 0.7 – 0.8 kW Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 2GH310-A11 JQT (Golden Bridge) ring blower is a compact, high-efficiency side channel blower designed for air delivery and vacuum applications. Operating on single-phase 220V power with 0.7–0.8 kW output, it provides reliable airflow and vacuum performance for wastewater treatment, aeration, and industrial systems.
With airflow up to 130 m³/h and vacuum capability of -150 mbar, this blower is ideal for continuous-duty applications requiring stable and efficient air movement.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Side Channel Ring Blower |
| Model | 2GH310-A11 |
| Brand | JQT (Golden Bridge) |
| Pump Type | Vortex Blower |
| Structure | Single-Stage |
| Pressure | Medium to High Pressure |
| Max Continuous Pressure | 15 – 16 mbar |
| Max Vacuum | -150 mbar |
| Flow Rate | 110 – 130 m³/h |
| Speed Range | Standard motor speed |
| Motor Type | Single-Phase Motor (100% Copper) |
| Power Source | Electric |
| Power Rating | 0.7 – 0.8 kW |
| Voltage | 220V |
| Frequency | 50 Hz / 60 Hz |
| Pump Body Material | Industrial Alloy |
| Noise Level | 55 – 57 dB(A) |
| Outlet Size | Standard |
| Suitable Media | Air |
| Weight | Approx. 11 kg |
| Color | Silver |
| MOQ | 1 Set |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Compact 0.7–0.8 kW design
- Airflow up to 130 m³/h
- Vacuum capability up to -150 mbar
- Low noise operation (55–57 dB)
- 100% copper motor for durability
- Energy-efficient continuous operation
Typical Applications
- Wastewater treatment
- Fish pond aeration
- Industrial vacuum systems
- Packaging and printing
- Textile and plastic industries
- Air supply and ventilation systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
