2SK Sinyane Liquid Ring Vacuum Pump, 120m³/h Double Stage Cast Iron Compressor Unit
The 2SK Sinyane liquid ring vacuum pump is a double-stage vacuum system with integrated compressor functionality, designed for efficient gas handling and vacuum generation in industrial and water treatment applications.
- Vacuum (-0.099 MPa) Pressure
- 3 – 75 HP Power Range
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

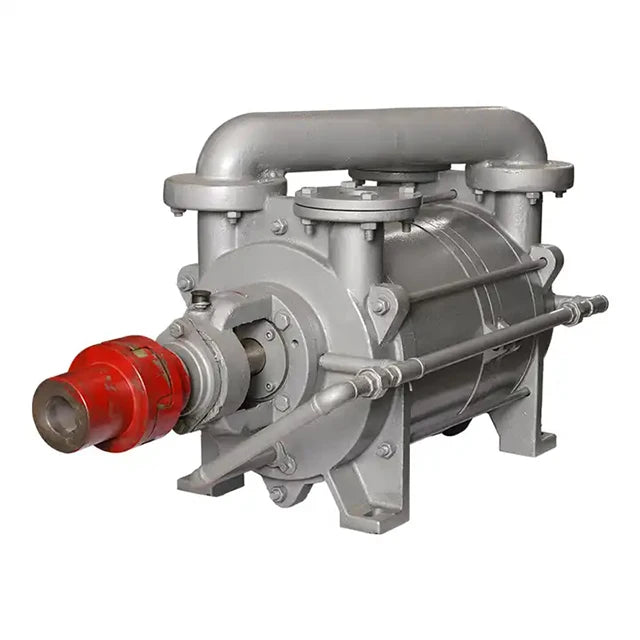

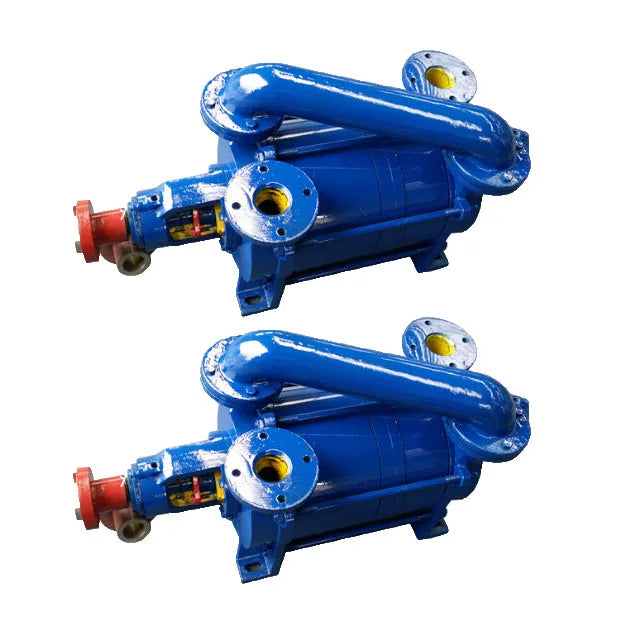

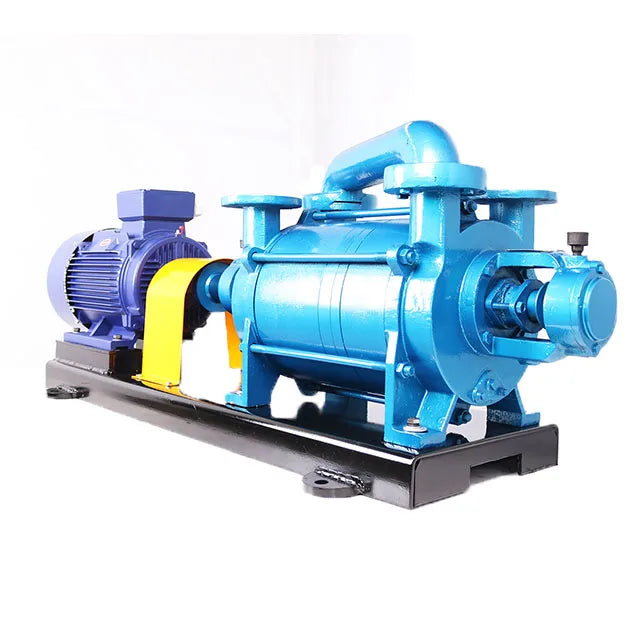

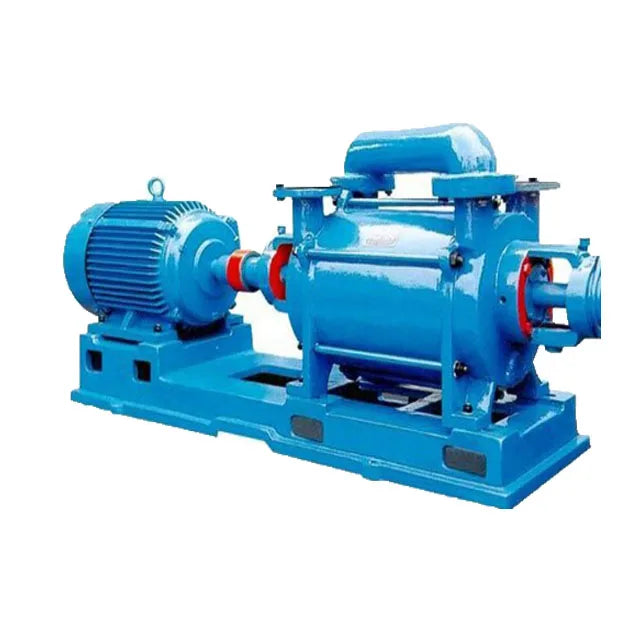

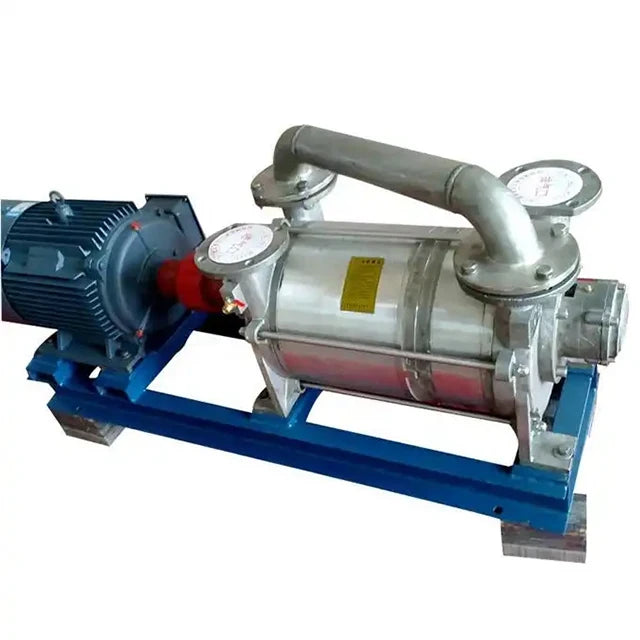

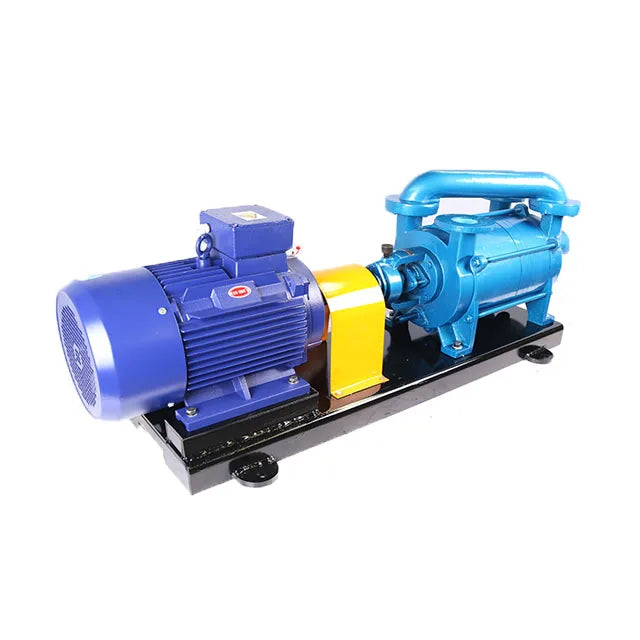

The 2SK Sinyane liquid ring vacuum pump is a double-stage vacuum system with integrated compressor functionality, designed for efficient gas handling and vacuum generation in industrial and water treatment applications. Built from durable cast iron, it offers reliable performance in continuous-duty environments.
With a maximum gas volume of 120 m³/h and vacuum pressure up to -0.099 MPa, this unit is ideal for applications requiring stable suction and efficient air removal.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Liquid Ring Vacuum Pump with Compressor |
| Model | 2SK |
| Brand | Sinyane |
| Pump Type | Vacuum Pump |
| Structure | Double Stage Liquid Ring |
| Pressure | Vacuum (-0.099 MPa) |
| Max Gas Volume | 120 m³/h |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Range | 3 – 75 HP |
| Voltage | 220V / 380V / 440V |
| Frequency | 50 / 60 Hz |
| Pump Body Material | Cast Iron |
| Sealing Type | Mechanical Seal |
| Outlet Size | 40 – 125 mm |
| Certification | CE / ISO |
| Cooling Method | Liquid Ring Cooling |
| Suitable Media | Air / Gas |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Water Treatment |
| Warranty | 12 Months |
Key Features
- Double-stage liquid ring vacuum design
- Vacuum level up to -0.099 MPa
- Integrated compressor functionality
- Durable cast iron construction
- High efficiency and stable performance
- Wide power range for flexible applications
Typical Applications
- Drinking water treatment systems
- Industrial vacuum processes
- Chemical processing
- HVAC systems
- Mining and marine industries
- Gas handling and compression
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
