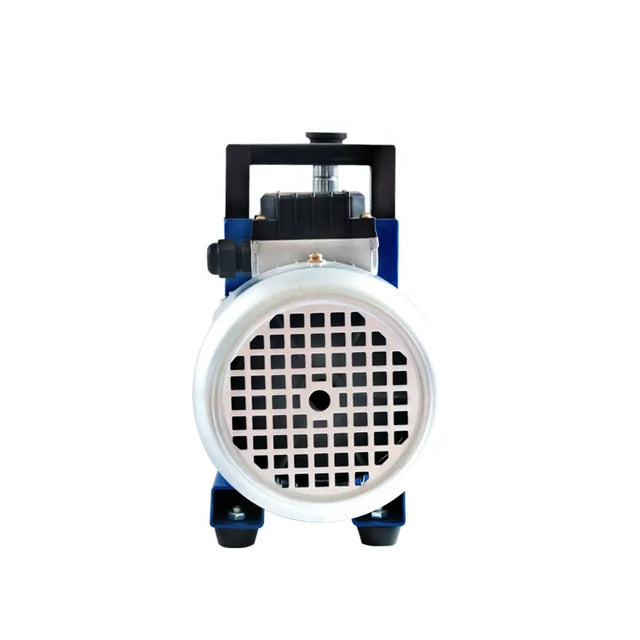

2XZ-0.25 TSVP Rotary Vane Vacuum Pump, 0.12kW 0.5L/s 1.13Pa HVAC Pump
The 2XZ-0.25 TSVP rotary vane vacuum pump is a compact oil-sealed vacuum pump designed for laboratory, HVAC, and freeze-drying applications.
- 0.5 L/s Flow Rate
- 1.13 Pa Ultimate Pressure
- 0.12 kW Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 2XZ-0.25 TSVP rotary vane vacuum pump is a compact oil-sealed vacuum pump designed for laboratory, HVAC, and freeze-drying applications. Its multistage rotary vane structure ensures stable vacuum performance and efficient air evacuation.
With a pumping speed of 0.5 L/s and ultimate pressure of 1.13 Pa, this unit is suitable for precision vacuum processes requiring consistent low-pressure operation.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Rotary Vane Vacuum Pump |
| Model | 2XZ-0.25 |
| Brand | TSVP |
| Pump Type | Vacuum Pump |
| Structure | Multistage Rotary Vane |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Pressure | 1.13 Pa |
| Flow Rate | 0.5 L/s |
| Speed | 1400 RPM |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 0.12 kW |
| Voltage | 220V / 380V AC |
| Pump Body Material | Industrial Alloy |
| Sealing Type | Oil-Sealed |
| Outlet Size | 15 mm |
| Oil Capacity | 0.6 L |
| Noise Level | 65 dB(A) |
| Dimensions | 447 × 150 × 260 mm |
| Weight | 16 – 17 kg |
| Suitable Media | Air |
| Certification | CE |
| Application Scope | Laboratory / HVAC |
| Warranty | 12 Months |
Key Features
- Compact rotary vane vacuum design
- Stable vacuum down to 1.13 Pa
- Low noise operation at 65 dB
- Oil-sealed system for efficient performance
- Suitable for continuous laboratory use
- Durable and lightweight construction
Typical Applications
- Laboratory vacuum systems
- Freeze drying equipment
- HVAC servicing
- Air evacuation systems
- Scientific research
- Small-scale industrial processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
