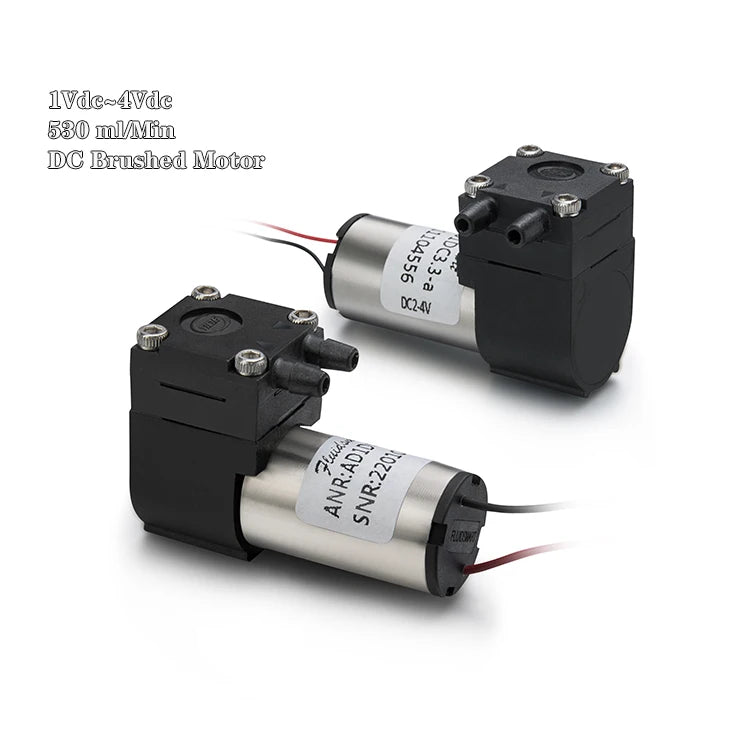

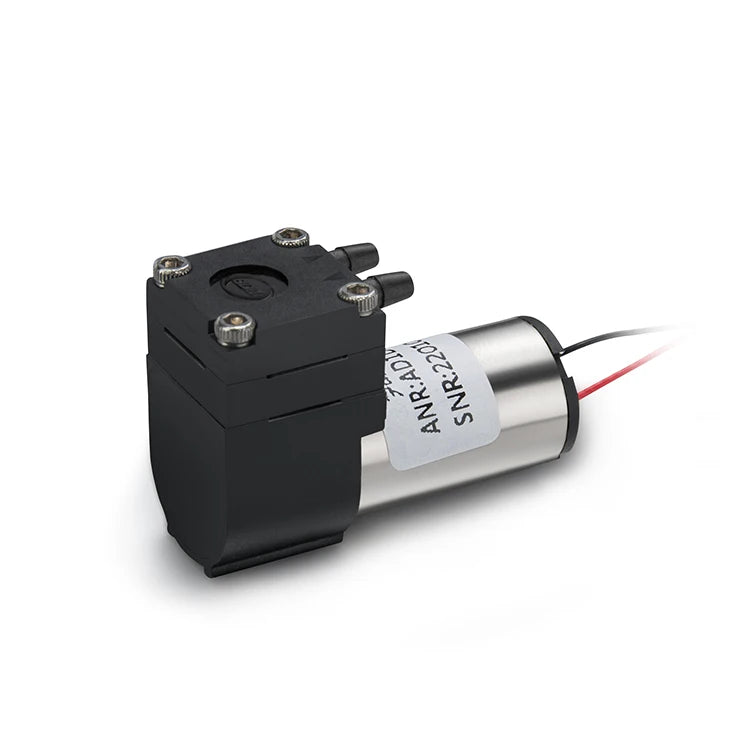

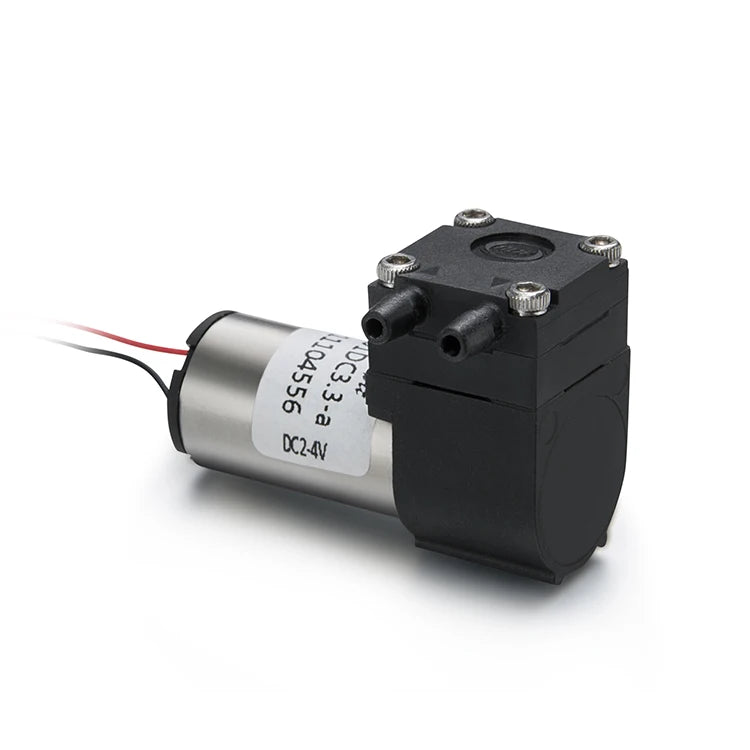

530mL/min Mini Medical Vacuum Pump, Electric Lab Sampling Pump
The 530mL/min mini medical vacuum pump is designed for precise air and gas sampling in laboratory and medical applications.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 530mL/min mini medical vacuum pump is designed for precise air and gas sampling in laboratory and medical applications. Its compact design and stable suction performance make it ideal for low-flow, high-accuracy environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Mini Medical Vacuum Pump |
| Model | 530mL/min Pump |
| Pump Type | Diaphragm Vacuum Pump |
| Structure | Micro Pump |
| Pressure | Low Pressure |
| Max Continuous Pressure | Designed for vacuum sampling |
| Flow Rate | 530 mL/min |
| Speed Range | Controlled operation |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Voltage | 12V / 24V DC |
| Pump Body Material | Engineering plastic |
| Connector Size | Micro fittings |
| Dimensions | Compact design |
| Warranty | 12 Months |
Key Features
- 530mL/min precise airflow capacity
- Compact and lightweight design
- Suitable for medical and lab sampling
- Stable and reliable vacuum performance
- Low power consumption
- Easy integration into small systems
Typical Applications
- Medical devices
- Laboratory sampling
- Gas analysis systems
- Environmental monitoring
- Analytical equipment
- Small vacuum systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
