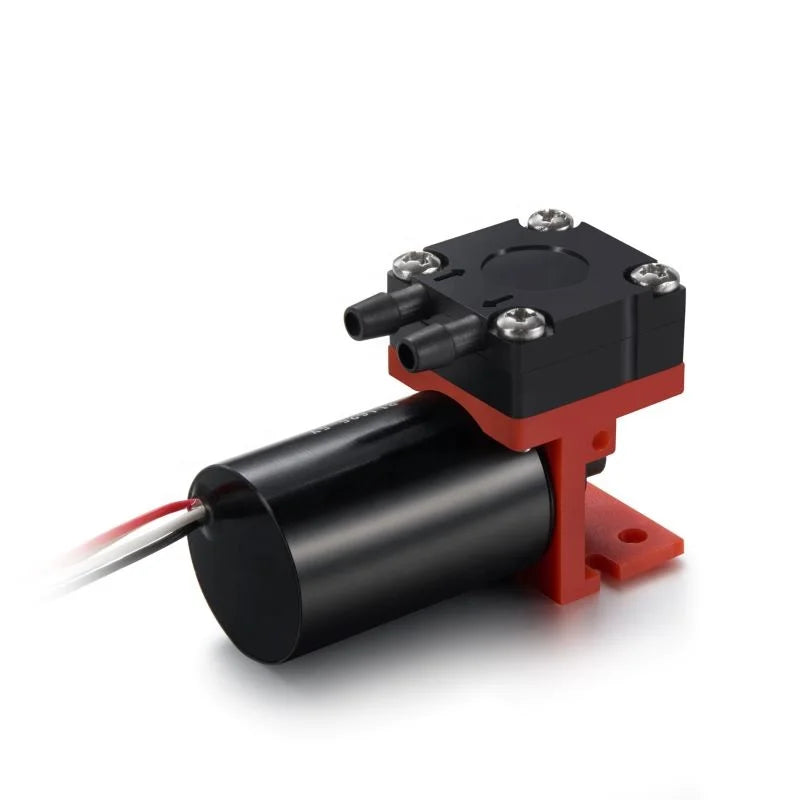

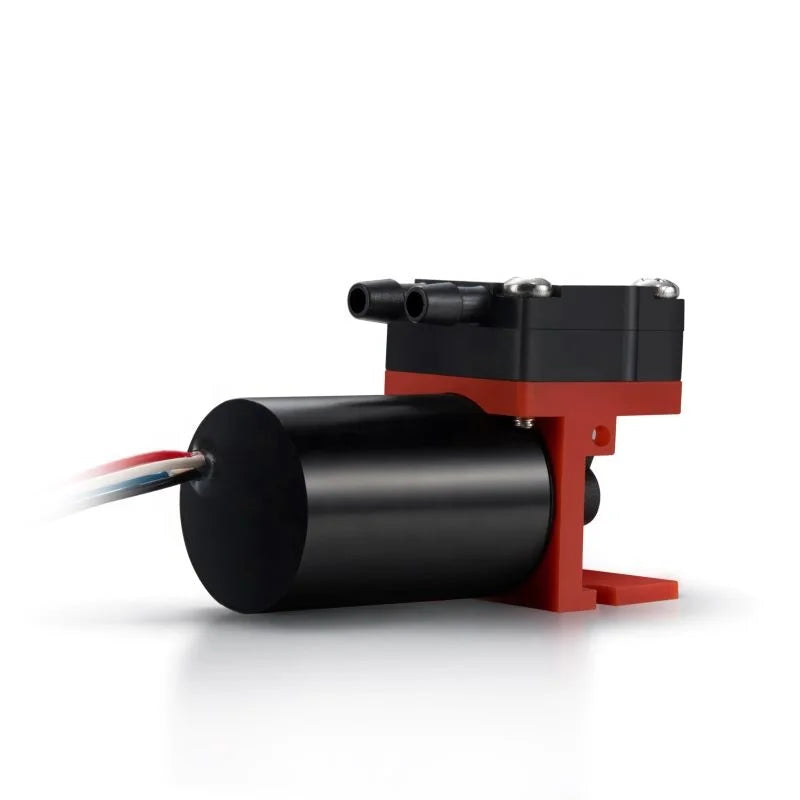

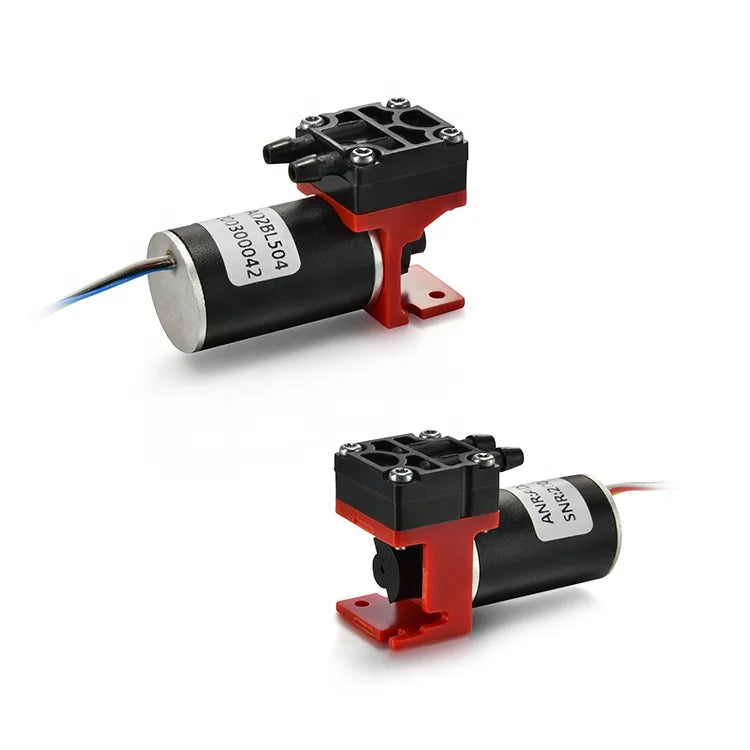

5V DC Micro Diaphragm Pump, Brushless Mini Gas Pump
The 5V DC micro diaphragm pump is designed for compact gas transfer and air circulation applications.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The 5V DC micro diaphragm pump is designed for compact gas transfer and air circulation applications. Equipped with a brushless motor, it delivers efficient, low-noise operation and long service life in small-scale systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Micro Diaphragm Gas Pump |
| Model | 5V DC Pump |
| Pump Type | Diaphragm Pump |
| Structure | Micro Pump |
| Pressure | Low Pressure |
| Max Continuous Pressure | Designed for gas systems |
| Flow Rate | Micro flow output |
| Speed Range | Controlled operation |
| Motor Type | Brushless DC Motor |
| Power Source | Electric |
| Voltage | 5V DC |
| Pump Body Material | Engineering plastic |
| Connector Size | Micro fittings |
| Dimensions | Ultra-compact |
| Warranty | 12 Months |
Key Features
- 5V DC low-voltage operation
- Brushless motor for long lifespan
- Compact and lightweight design
- Low noise performance
- Suitable for gas and air transfer
- Energy-efficient operation
Typical Applications
- Portable devices
- Gas sampling systems
- Medical equipment
- Small automation systems
- Air circulation
- Analytical instruments
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
