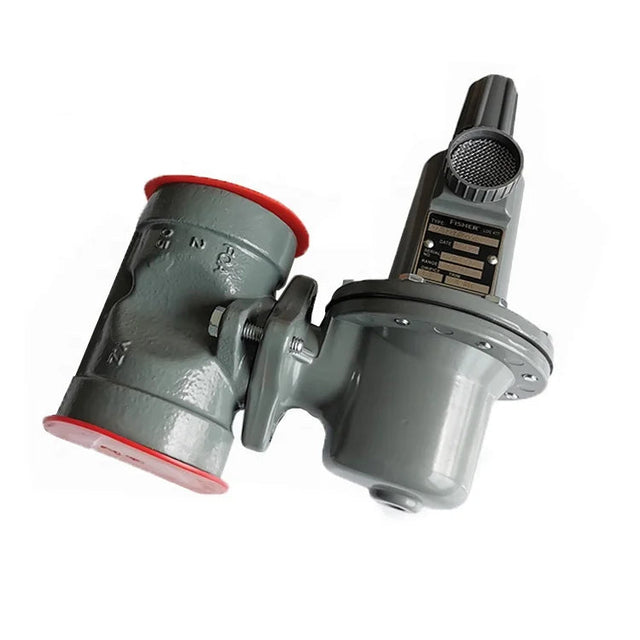

627-596 Fisher 627 Series Pressure Regulator, Direct-Operated Gas Reducing Valve
The 627-596 pressure regulator is part of the Fisher 627 series by Emerson, designed for direct-operated pressure reduction in industrial gas systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The 627-596 pressure regulator is part of the Fisher 627 series by Emerson, designed for direct-operated pressure reduction in industrial gas systems. Built with a ductile iron body, it provides strength, durability, and reliable performance under medium to high-pressure conditions.
This regulator utilizes a diaphragm-based direct-operated mechanism (correcting the “ball” misclassification), ensuring stable downstream pressure control. With an inlet pressure rating up to 69 bar and adjustable working pressure between 5–150 PSIG, it is suitable for demanding gas regulation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pressure Reducing Valve |
| Model | 627-596 |
| Series | 627 Series |
| Valve/Pump Type | Pressure Regulator |
| Structure | Direct-Operated Diaphragm |
| Control Type | Pneumatic |
| Power Source | Gas Pressure |
| Voltage | Not Applicable |
| Material | Ductile Iron |
| Working Medium | Gas |
| Application Scope | Industrial Gas Systems |
| Key Performance Data | Inlet 69 bar, outlet 5–150 PSIG |
| Weight | Approx. 10–15 kg |
| Condition | New |
| Warranty | 1 Year |
Key Features
- Direct-operated design for reliable pressure reduction
- Handles high inlet pressure up to 69 bar
- Adjustable outlet pressure range (5–150 PSIG)
- Durable ductile iron construction for industrial use
- NBR sealing for effective gas containment
- Suitable for 2" NPT pipeline installations
Typical Applications
- Industrial gas distribution systems
- Natural gas and LPG regulation
- Pressure reducing stations
- Manufacturing and processing plants
- Utility gas supply systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 1-year warranty
