66605J-3EB ARO Pneumatic Diaphragm Pump, 0.5-Inch 49.2L/min PP Santoprene AODD Pump
The 66605J-3EB ARO pneumatic diaphragm pump is a compact air-operated double diaphragm (AODD) pump designed for precise fluid transfer in industrial and pharmaceutical applications.
- 49.2 L/min Flow Rate
- Low Pressure (Up to 8.3 Bar) Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

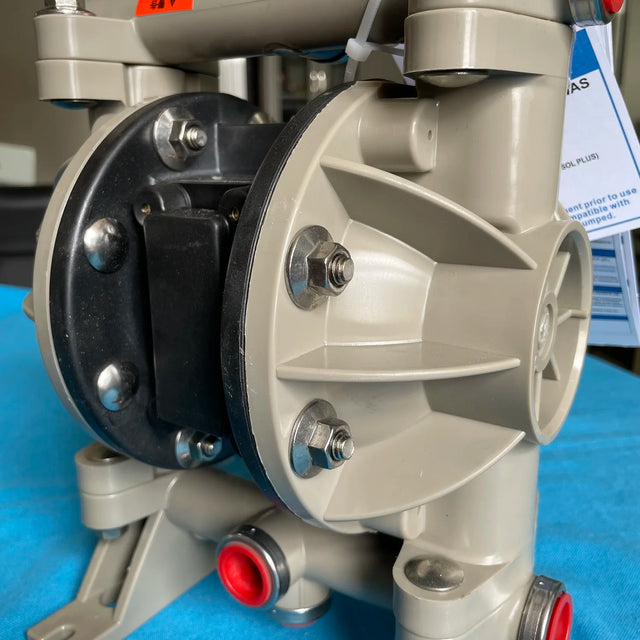

The 66605J-3EB ARO pneumatic diaphragm pump is a compact air-operated double diaphragm (AODD) pump designed for precise fluid transfer in industrial and pharmaceutical applications. Built with a polypropylene body and Santoprene diaphragm, it offers excellent chemical resistance and durability.
With a flow rate of 49.2 L/min and compact 0.5-inch configuration, this pump is ideal for handling sensitive and corrosive liquids in controlled environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump (AODD) |
| Model | 66605J-3EB |
| Brand | ARO |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Low Pressure (Up to 8.3 Bar) |
| Flow Rate | 49.2 L/min |
| Motor Type | Pneumatic |
| Power Source | Compressed Air |
| Pump Body Material | Polypropylene |
| Diaphragm Material | Santoprene |
| Sealing Type | Diaphragm |
| Outlet Size | 13 mm (0.5 inch) |
| Weight | 4.2 kg |
| Certification | ISO9001:2008 |
| Suitable Media | Chemical / Pharmaceutical Liquids |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Pharmaceutical |
| Warranty | 12 Months |
Key Features
- Air-operated double diaphragm (AODD) design
- Polypropylene body for chemical resistance
- Santoprene diaphragm for durability
- Compact 0.5-inch pump size
- Flow rate up to 49.2 L/min
- Lightweight and easy to install
Typical Applications
- Pharmaceutical liquid handling
- Chemical transfer systems
- Laboratory fluid transfer
- Industrial dosing applications
- Cleaning and washing systems
- Small-scale fluid processing
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
