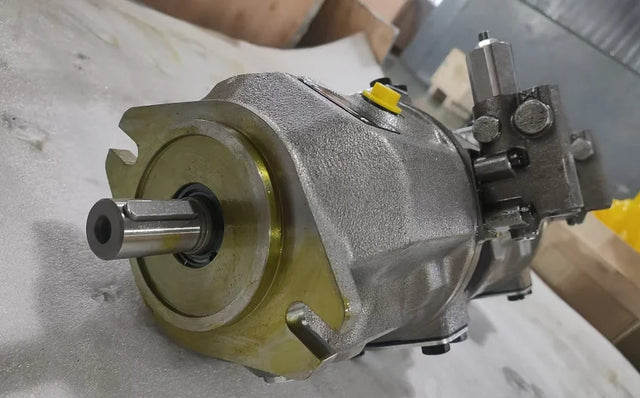

A10VSO45 R910929630 AA10VO100DFR1 Hydraulic Piston Pump
The A10VSO and AA10VO100 hydraulic piston pump series are high-performance variable displacement axial piston pumps designed for open circuit hydraulic systems.
- 45 cc/rev / 100 cc/rev Displacement
- Up to 280 bar Max Continuous Pressure
- Right-Hand (Model Dependent) Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The A10VSO and AA10VO100 hydraulic piston pump series are high-performance variable displacement axial piston pumps designed for open circuit hydraulic systems. Models including A10VSO45, R910929630, A10VO100DFR1/31R-PSC62K02, and AA10VO100DFR1 deliver precise pressure control, stable flow regulation, and reliable operation in demanding industrial and mobile applications.
Built with a proven swash plate design, the A10VSO series offers high volumetric efficiency, reduced internal leakage, and consistent hydraulic output under medium to high-pressure conditions. These pumps are widely used in hydraulic power units, construction equipment, and manufacturing systems requiring dependable continuous-duty performance.
Technical Specifications
| Specification | Value |
|---|---|
| Series | A10VSO / AA10VO |
| Available Models | A10VSO45 / A10VO100DFR1 / AA10VO100DFR1 |
| Reference Part Number | R910929630 |
| Pump Type | Hydraulic Axial Piston Pump (Variable Displacement) |
| Circuit Type | Open Circuit |
| Displacement | 45 cc/rev / 100 cc/rev |
| Control Type | DFR1 Pressure & Flow Control |
| Rotation | Right-Hand (Model Dependent) |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 280 bar |
| Peak Pressure | Up to 350 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Variable displacement hydraulic piston pump
-
Swash plate axial design for efficiency
-
DFR1 pressure and flow control configuration
-
High volumetric efficiency and stable output
-
Durable cast iron construction
-
Suitable for industrial and mobile hydraulic systems
Typical Applications
-
Hydraulic power packs
-
Construction machinery
-
Industrial automation systems
-
Agricultural equipment
-
Manufacturing equipment
-
Material handling systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
