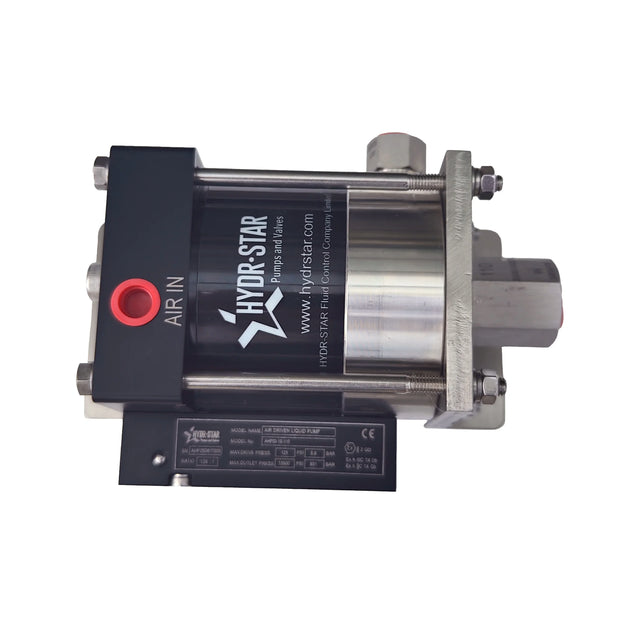

AHP03-1S-188 HYDR-STAR Pneumatic High-Pressure Piston Pump, 25,000 PSI Air-Driven Liquid Pump
The AHP03-1S-188 HYDR-STAR pneumatic piston pump is a high-pressure air-driven liquid pump designed for demanding industrial applications such as water cutting, cleaning, and hydraulic fluid transfer.
- 0.34 ml Displacement per Cycle
- Up to 25,000 psi Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The AHP03-1S-188 HYDR-STAR pneumatic piston pump is a high-pressure air-driven liquid pump designed for demanding industrial applications such as water cutting, cleaning, and hydraulic fluid transfer. Powered by compressed air, it delivers extremely high pressure without the need for electrical components, ensuring safe operation in hazardous environments.
Constructed from 316 stainless steel, this pump offers excellent durability and chemical resistance, making it suitable for handling water, hydraulic fluids, solvents, and mild chemicals.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic High-Pressure Piston Pump |
| Model | AHP03-1S-188 |
| Brand | HYDR-STAR |
| Pump Type | Piston Pump |
| Structure | Reciprocating Pump |
| Pressure | Up to 25,000 psi |
| Pressure Ratio | 237:1 |
| Displacement per Cycle | 0.34 ml |
| Power Source | Pneumatic (Compressed Air) |
| Pump Body Material | 316 Stainless Steel |
| Inlet Port | 3/8" FNPT |
| Outlet Port | 1/4" FNPT |
| Suitable Media | Water / Hydraulic Fluids / Solvents / Mild Chemicals / Liquefied Gases |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial |
| Warranty | 1 Year |
Key Features
- Ultra-high pressure output up to 25,000 psi
- Air-driven operation for safety in hazardous environments
- Compact and portable design
- 316 stainless steel construction for corrosion resistance
- Suitable for a wide range of industrial fluids
- High precision with low displacement per cycle
Typical Applications
- High-pressure water cutting
- Industrial cleaning systems
- Hydraulic pressure testing
- Chemical and solvent transfer
- Automotive and manufacturing processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
