AOGU Roots Blower Vacuum Pump, 1.5–132kW 9.8–98kPa Grain Conveying Blower

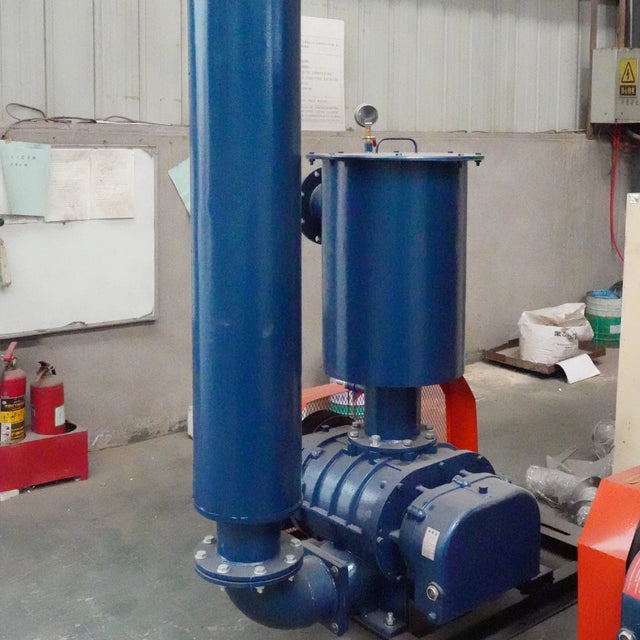

The AOGU roots blower vacuum pump is a high-efficiency lobe-type blower designed for negative pressure conveying systems such as grain and pellet transport.
- 9.8 – 98 kPa Max Continuous Pressure
- 1.5 – 132 kW Power Rating
- 800 – 1800 RPM (Typical 1100 RPM) Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The AOGU roots blower vacuum pump is a high-efficiency lobe-type blower designed for negative pressure conveying systems such as grain and pellet transport. Built with durable cast iron and optional stainless steel components, it delivers stable airflow and consistent vacuum performance in industrial environments.
With power ranging from 1.5 kW to 132 kW and pressure up to 98 kPa, this blower is ideal for bulk material handling, pneumatic conveying, and continuous-duty operations.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Roots Blower Vacuum Pump |
| Model | AOGU Series |
| Brand | AOGU |
| Pump Type | Roots Blower |
| Structure | Lobe / Positive Displacement |
| Pressure | Negative Pressure |
| Max Continuous Pressure | 9.8 – 98 kPa |
| Flow Rate | Model dependent |
| Speed | 800 – 1800 RPM (Typical 1100 RPM) |
| Motor Type | Induction Motor |
| Power Source | Electric |
| Power Rating | 1.5 – 132 kW |
| Voltage | 220V / 380V |
| Current Type | AC |
| Pump Body Material | Cast Iron / SS304 / SS316 |
| Impeller Material | Cast Iron |
| Noise Level | 70 – 85 dB |
| Size Range | 2 – 14 inch |
| Weight | 87 – 4500 kg |
| Cable Length | 30 ft (9.14 m) |
| Certification | ISO9001 / CE |
| Application Scope | Industrial / Conveying |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Lobe-type roots blower for negative pressure systems
- Wide power range up to 132 kW
- Pressure capability up to 98 kPa
- Durable cast iron and stainless steel construction
- Stable airflow for pneumatic conveying
- Suitable for continuous industrial operation
Typical Applications
- Grain conveying systems
- Pellet transport systems
- Pneumatic conveying
- Aquaculture systems
- Wastewater treatment
- Industrial air supply
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
