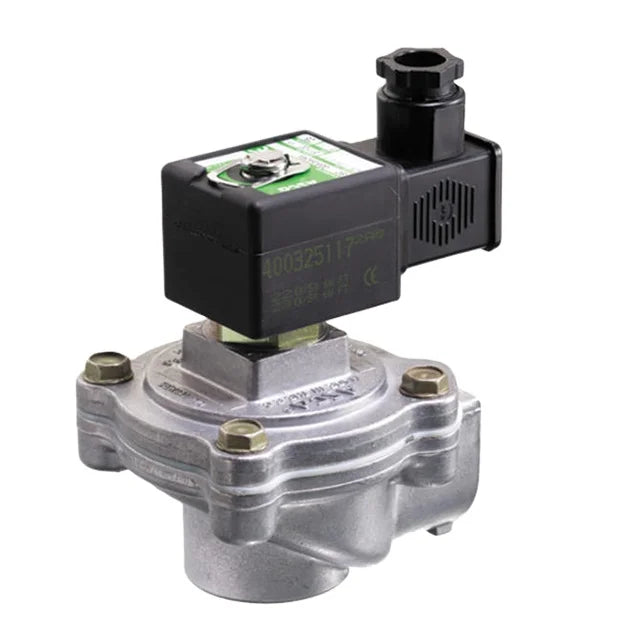

ASCO SCG353A043 Single Stage Integral Pilot Pulse Valve 3/4" G
The ASCO SCG353A043 Pulse Valve is a high-performance, single-stage dust collector diaphragm valve engineered for reverse-pulse jet filter cleaning systems.
- 0.35 to 8.5 bar (5 to 123 psi) Operating Pressure Range
- Kv 14 m³/h (Cv 16.2) Flow Coefficient
- Integral Solenoid Pilot Operated Actuation Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The ASCO SCG353A043 Pulse Valve is a high-performance, single-stage dust collector diaphragm valve engineered for reverse-pulse jet filter cleaning systems. Manufactured by Emerson under the ASCO Series 353 product line, this valve delivers short, high-energy sonic pressure pulses designed to dislodge accumulated dust cake from filter bags, sintered metal elements, and pleated filter cartridges. Its rapid opening and closing response maximizes cleaning shock wave efficiency while optimizing compressed air consumption across industrial dust collection baghouses.
Constructed with a rugged die-cast aluminium body and an integral solenoid pilot, the SCG353A043 features standard 3/4-inch G (ISO 228/1) threaded connections for clean in-line installation. It is equipped with a high-durability Hytrel thermoplastic elastomer diaphragm that ensures extended flex life and fast opening times across millions of operating cycles. The valve operates across an operating pressure range of 0.35 to 8.5 bar, providing dependable particulate removal in cement plants, metal smelting, mining, grain processing, and industrial environmental pollution control applications.
Technical Specifications
| Specification | Value |
| Product Name | Single-Stage Integral Pilot Pulse Valve |
| Manufacturer / Brand | ASCO / Emerson |
| Model Number | SCG353A043 |
| Product Series | Series 353 Dust Collector Valves |
| Valve Operation | 2/2-Way Normally Closed Pulse Diaphragm Valve |
| Actuation Type | Integral Solenoid Pilot Operated |
| Pipe / Port Connection | 3/4 Inch G Female (ISO 228/1) |
| Operating Pressure Range | 0.35 to 8.5 bar (5 to 123 psi) |
| Flow Coefficient | Kv 14 m³/h (Cv 16.2) |
| Body Material | Die-Cast Aluminium |
| Diaphragm Material | Hytrel (Thermoplastic Polyester Elastomer) |
| Core Tube / Armature | Stainless Steel |
| Solenoid Coil Enclosure | Epoxy Molded Coil (IP65 Protection) |
| Electrical Connection | DIN 43650 Form A Plug Connector |
| Standard Operating Voltage | 230V AC / 24V DC Options |
| Ambient Temperature Range | -20°C to +85°C (-4°F to +185°F) |
| Fluid Temperature Range | -20°C to +85°C (-4°F to +185°F) |
| Mounting Orientation | Mountable in any position (Upright preferred) |
| Operating Medium | Clean, Dry Compressed Air |
| Approximate Net Weight | 0.65 kg (1.43 lb) |
| Condition | New |
| Warranty | 1 Year |
Key Features
Rapid opening and closing speed delivers high-peak pressure pulses for effective bag cleaning
Integral solenoid pilot simplifies pneumatic piping and reduces installation space
Durable Hytrel diaphragm offers high tensile strength and long operational flex life
Heavy-duty die-cast aluminium body engineered for harsh industrial dust collection systems
Standard 3/4-inch G threaded ports ensure secure mechanical connection into air headers
High flow capacity optimizes peak shock velocity while minimizing air usage per cycle
IP65-rated molded solenoid coil protects electrical connections against heavy dust ingress
Wide operating pressure threshold starting from 0.35 bar up to 8.5 bar
Easy field servicing with readily accessible replacement diaphragm and seal repair kits
Typical Applications
Reverse-pulse jet dust collector cleaning systems and industrial baghouses
Cartridge filter pulsing in powder handling and bulk solids processing
Cement manufacturing kiln exhaust, milling, and clinker dust filtration
Mining, mineral extraction, and stone crushing dust extraction units
Metal fabrication, foundry smelting, and shot blasting exhaust systems
Grain handling, agricultural silos, and flour milling filtration plants
Pharmaceutical and food processing dry particulate collection skids
Shipping & Support
Fast dispatch: Australia & Worldwide Shipping
Technical assistance available
1-year warranty
