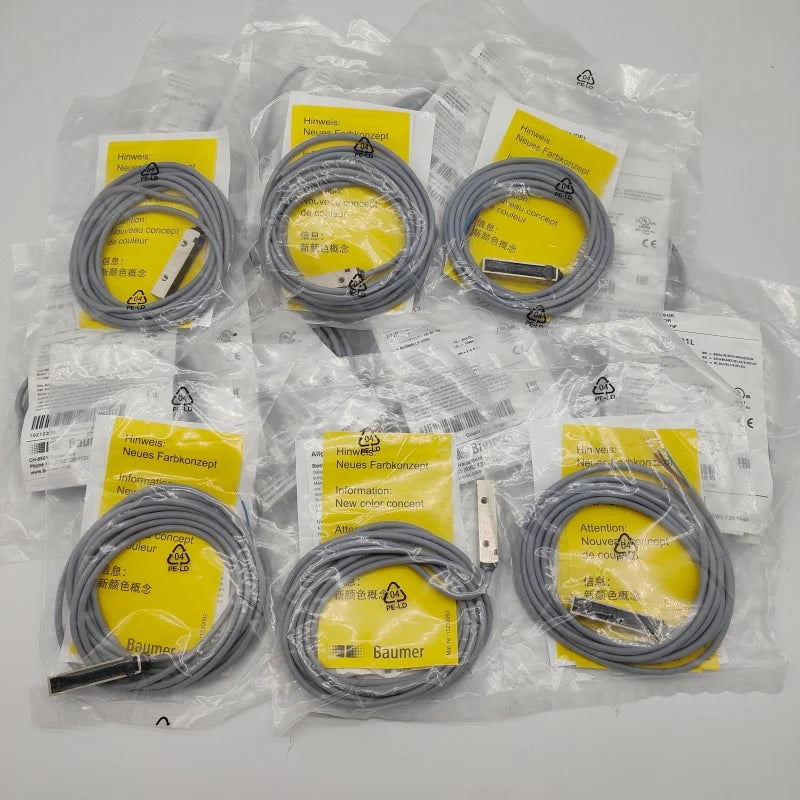

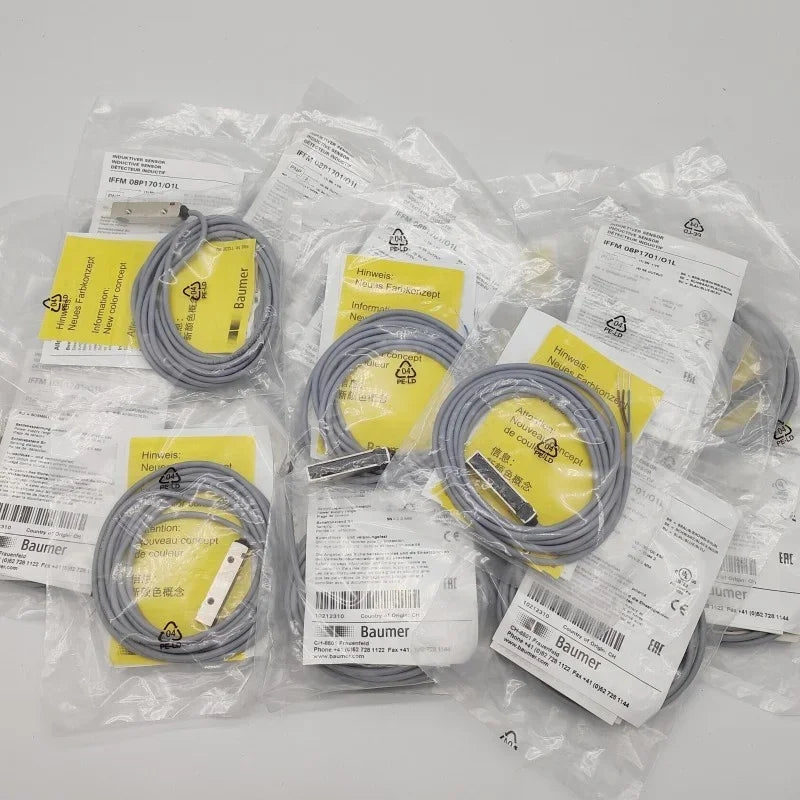

Baumer IFFM 08P1701/O1L and IFFM 08P1703/O2S35L Inductive Proximity Sensors
The Baumer IFFM 08P1701/O1L and IFFM 08P1703/O2S35L Inductive Proximity Sensors are precision industrial sensing devices designed for reliable, non-contact detection of metallic objects in automated machinery and control systems. Manufactured by Baumer,...
- PNP Normally Open (NO) Output Configuration
- 6–36 V DC, 2021 Datasheet Supply Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Baumer IFFM 08P1701/O1L and IFFM 08P1703/O2S35L Inductive Proximity Sensors are precision industrial sensing devices designed for reliable, non-contact detection of metallic objects in automated machinery and control systems. Manufactured by Baumer, these IFFM 08 Series sensors feature a nominal sensing distance of 2 mm, PNP normally open switching outputs, and high-speed detection capabilities. Their compact rectangular design supports accurate object detection in confined installation spaces, while the solid-state sensing technology eliminates mechanical contact and reduces component wear.

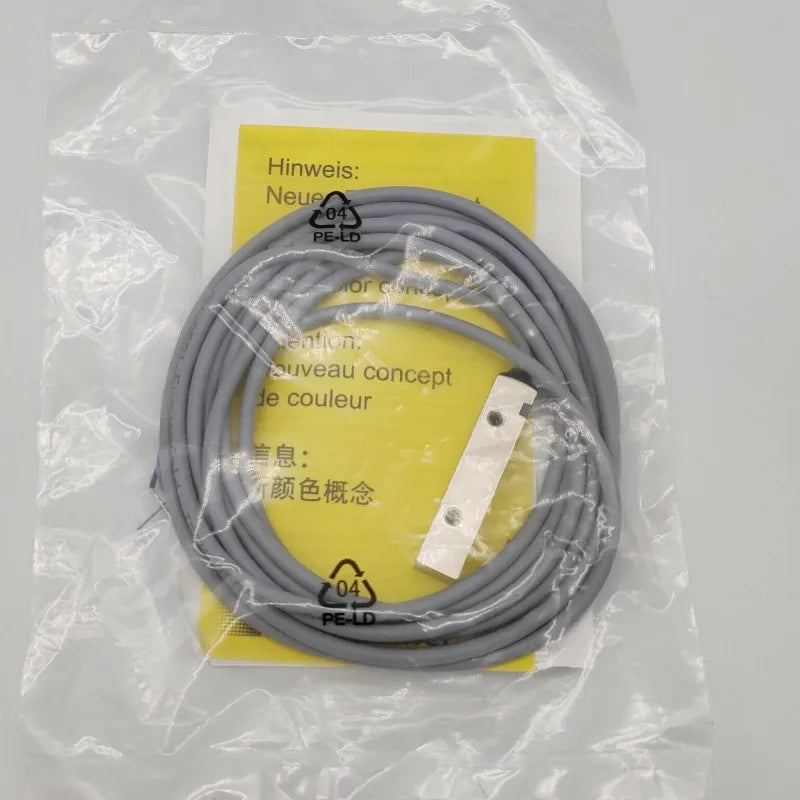

The IFFM 08P1701/O1L features a 2-metre cable connection and a nickel-plated die-cast zinc housing, while the IFFM 08P1703/O2S35L incorporates an M8 connector and a nickel-plated brass housing. Both models provide LED switching indication, short-circuit protection, reverse-polarity protection, and IP67 environmental protection. They are suitable for industrial automation, packaging machinery, material handling, manufacturing equipment, and precision position detection applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Inductive Proximity Sensor |
|
Manufacturer / Brand |
Baumer |
|
Model Number 1 |
IFFM 08P1701/O1L |
|
Model Number 2 |
IFFM 08P1703/O2S35L |
|
Product Series |
IFFM 08 |
|
Product Type |
Miniature Inductive Proximity Switch |
|
Sensing Technology |
Non-Contact Inductive Detection |
|
Primary Function |
Metallic Object Detection and Position Sensing |
|
Nominal Sensing Distance |
2 mm |
|
Output Configuration |
PNP Normally Open (NO) |
|
Supply Voltage |
6–36 V DC, 2021 Datasheet |
|
Switching Frequency |
Up to 5 kHz |
|
Maximum No-Load Current |
12 mA |
|
Maximum Output Current |
200 mA |
|
Voltage Drop |
Less Than 2 V DC |
|
Switching Hysteresis |
3–20% of Actual Sensing Distance |
|
Output Indicator |
Red LED |
|
Short-Circuit Protection |
Integrated |
|
Reverse-Polarity Protection |
Integrated |
|
Mounting Configuration |
Flush Mounting |
|
Sensor Housing Design |
Rectangular |
|
Housing Width |
8 mm |
|
Housing Length, 08P1701/O1L |
38.5 mm |
|
Housing Length, 08P1703/O2S35L |
49 mm |
|
Housing Material, 08P1701/O1L |
Nickel-Plated Die-Cast Zinc |
|
Housing Material, 08P1703/O2S35L |
Nickel-Plated Brass |
|
Sensing Face Material |
PBT |
|
Electrical Connection, 08P1701/O1L |
Integrated Cable |
|
Cable Length, 08P1701/O1L |
2 m |
|
Electrical Connection, 08P1703/O2S35L |
M8 Connector |
|
Protection Rating |
IP67 |
|
Operating Temperature |
−25°C to +75°C |
|
Sensor Compatibility |
Compatible PLC and Industrial Control Inputs |
|
Operating Application |
Industrial Object and Position Detection |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
High-precision non-contact metallic object detection
Nominal sensing distance of 2 mm
PNP normally open switching output
High switching frequency up to 5 kHz
Compact 8 mm rectangular sensor housing
Integrated red LED switching status indicator
IP67 protection against dust and water ingress
Built-in short-circuit protection
Integrated reverse-polarity protection
Durable nickel-plated metal housing construction
Flush mounting for compact machinery installations
2-metre cable connection on IFFM 08P1701/O1L
M8 connector interface on IFFM 08P1703/O2S35L
Reliable operation in industrial automation environments
Solid-state sensing technology for reduced mechanical wear
Compatible with industrial PLC monitoring and control systems
Typical Applications
Industrial automation and control systems
Metallic object presence detection
Automated manufacturing and assembly lines
Industrial packaging and processing machinery
Conveyor belt position monitoring
Material handling and sorting equipment
Machine component position detection
Industrial robotics and automated production equipment
Mechanical movement and travel limit detection
Factory equipment monitoring and control
Precision metal component detection
PLC-based machinery automation
Industrial equipment maintenance and sensor replacement
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
