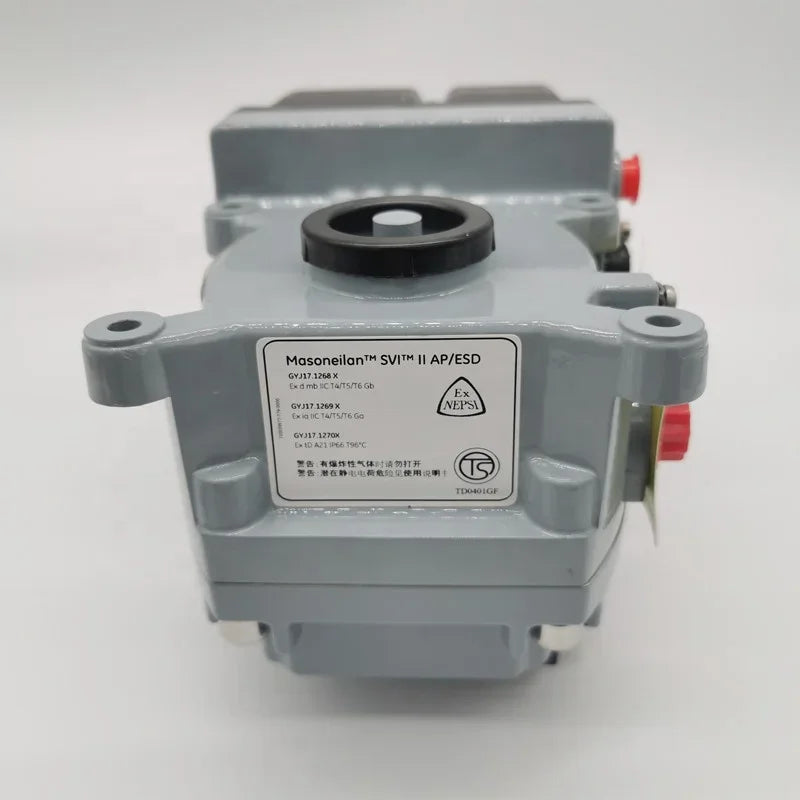

Masoneilan SVI2-21123121 22113121 Intelligent Digital Valve Positioners
The Masoneilan SVI2-21123121 and SVI2-22113121 Intelligent Digital Valve Positioners are advanced electro-pneumatic instruments designed for accurate positioning and control of industrial pneumatic valve actuators.
- Standard Diagnostics Diagnostic Configuration
- Up to 150 psig, Subject to Actuator Configuration Pneumatic Supply Pressure
- Single Acting SVI2-21123121 Actuator Operation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan SVI2-21123121 and SVI2-22113121 Intelligent Digital Valve Positioners are advanced electro-pneumatic instruments designed for accurate positioning and control of industrial pneumatic valve actuators. Manufactured by Masoneilan, a Baker Hughes brand, these SVI II AP Series positioners combine microprocessor-based technology, HART digital communication, and contactless magnetic position sensing for reliable valve positioning. Their 4–20 mA control input enables integration with distributed control systems, supporting precise process regulation and industrial automation.

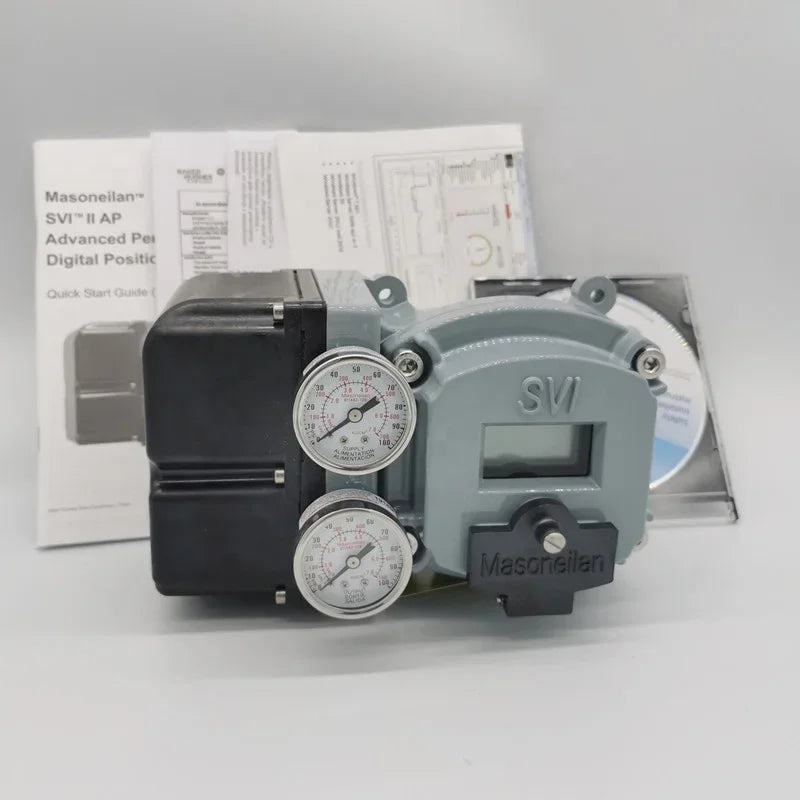

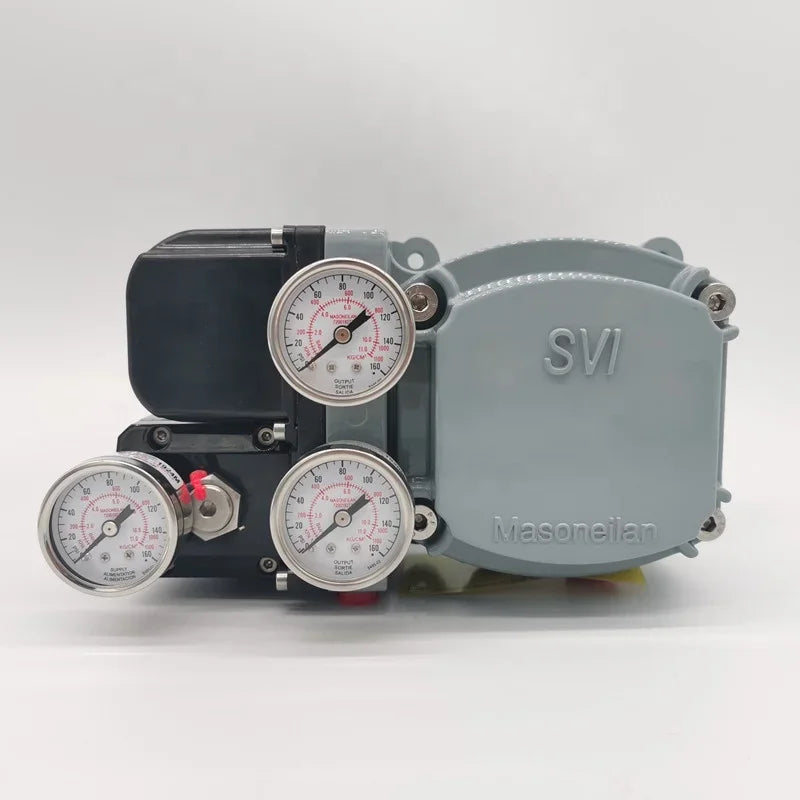

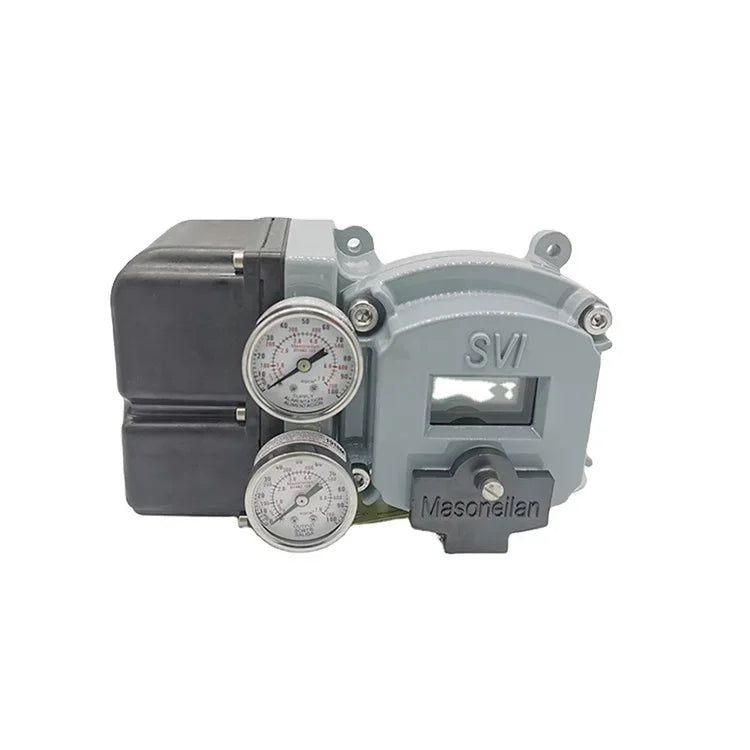

The SVI2-21123121 features standard diagnostics, single-acting pneumatic control, and an integrated LCD display with pushbuttons. The SVI2-22113121 provides double-acting pneumatic control without a local display. Both configurations include standard-flow pneumatic operation, position retransmission, and limit switch functionality. Their rugged construction and automatic calibration capabilities make them suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Model Number 1 |
SVI2-21123121 |
|
Model Number 2 |
SVI2-22113121 |
|
Product Series |
SVI II AP |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Diagnostic Configuration |
Standard Diagnostics |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
SVI2-21123121 Actuator Operation |
Single Acting |
|
SVI2-22113121 Actuator Operation |
Double Acting |
|
Pneumatic Flow Configuration |
Standard Flow |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Position Sensing Technology |
Contactless Magnetic Position Sensor |
|
Position Feedback |
4–20 mA Position Retransmission |
|
Limit Switch Function |
Included in Option Board Configuration |
|
SVI2-21123121 Display |
LCD Display and Pushbuttons |
|
SVI2-22113121 Display |
Without Display or Pushbuttons |
|
Electronics Configuration |
Plug-In Electronics Module |
|
Calibration |
Automatic Calibration and Tuning |
|
Pneumatic Supply Pressure |
Up to 150 psig, Subject to Actuator Configuration |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Housing Material |
Industrial Aluminium Housing |
|
Enclosure Protection |
IP66 / Type 4X |
|
Hazardous Area Approval Code |
ATEX / FM / CSA, Intrinsic Safety and Explosion-Proof Configuration |
|
Actuator Compatibility |
Compatible Linear and Rotary Pneumatic Actuators |
|
Control System Integration |
HART-Compatible DCS and Asset Management Systems |
|
Operating Application |
Industrial Valve Positioning and Process Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Accurate 4–20 mA electrical control signal
Integrated HART digital communication technology
Single-acting pneumatic control on SVI2-21123121
Double-acting pneumatic control on SVI2-22113121
Standard diagnostic functions for valve monitoring
Contactless magnetic valve position sensing technology
4–20 mA valve position retransmission capability
Integrated limit switch functionality
LCD display and pushbutton operation on SVI2-21123121
Automatic calibration and digital valve tuning
Standard-flow pneumatic output configuration
Durable aluminium housing with IP66 enclosure protection
Hazardous-area approval configuration for suitable installations
Compatible with linear and rotary pneumatic actuators
Reliable integration with industrial process control systems
Typical Applications
Industrial pneumatic control valve positioning
Single-acting and double-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Pneumatic actuator position feedback systems
Distributed control system integration
Industrial valve diagnostics and monitoring
Process automation and instrumentation systems
Industrial valve maintenance and replacement
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
