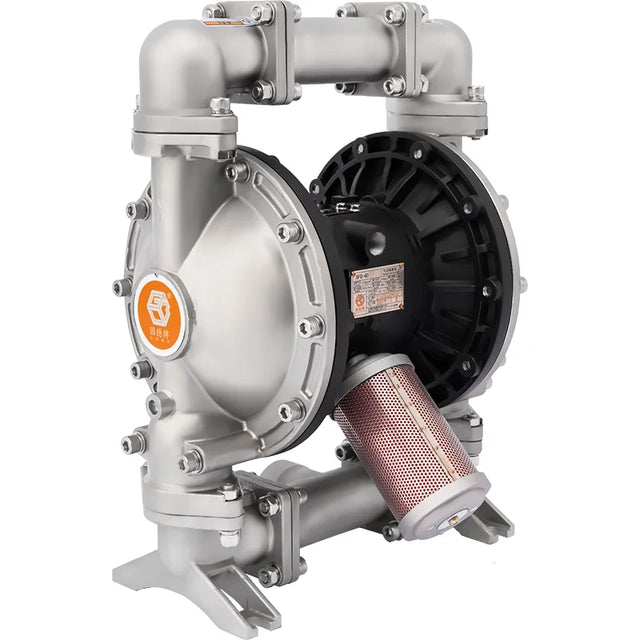

BFQ-40F GODO Pneumatic Diaphragm Pump, 8.4Bar 378.5L/min Stainless Steel AODD Pump
The BFQ-40F GODO pneumatic diaphragm pump is a high-performance air-operated double diaphragm (AODD) pump designed for reliable transfer of sewage, chemicals, and slurry fluids.
- 378.5 L/min Flow Rate
- Up to 8.4 Bar Pressure
- 5.48 m Suction Head
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The BFQ-40F GODO pneumatic diaphragm pump is a high-performance air-operated double diaphragm (AODD) pump designed for reliable transfer of sewage, chemicals, and slurry fluids. Constructed from stainless steel, it provides excellent corrosion resistance and durability in harsh environments.
With a maximum flow rate of 378.5 L/min and pressure up to 8.4 bar, this pump delivers efficient and safe fluid handling without electrical components, making it ideal for hazardous and industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump (AODD) |
| Model | BFQ-40F |
| Brand | GODO |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Up to 8.4 Bar |
| Flow Rate | 378.5 L/min |
| Control Method | Pneumatic |
| Power Source | Compressed Air |
| Pump Body Material | Stainless Steel |
| Sealing Type | Diaphragm |
| Outlet Size | 1-1/2 inch BSP (F) |
| Discharge Pipe Size | 1-1/2 inch BSP (F) |
| Suction Head | 5.48 m |
| Max Particle Size | 4.8 mm |
| Suitable Media | Sewage / Chemicals / Slurry |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Chemical |
| Warranty | 12 Months |
Key Features
- Air-operated diaphragm (AODD) pump design
- No electrical components for hazardous environments
- Stainless steel corrosion-resistant construction
- High flow rate up to 378.5 L/min
- Handles solids up to 4.8 mm
- Reliable self-priming and dry-run capability
Typical Applications
- Sewage and wastewater treatment
- Chemical transfer systems
- Slurry and abrasive fluid handling
- Industrial processing
- Marine and mining operations
- Oil and fluid transfer
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
