BFQ-40L GODO Pneumatic Diaphragm Pump, 8.4Bar 378.5L/min Aluminum AODD Pump
The BFQ-40L GODO pneumatic diaphragm pump is a reliable air-operated double diaphragm (AODD) pump designed for efficient transfer of sewage, chemicals, and slurry fluids.
- 378.5 L/min Flow Rate
- Up to 8.4 Bar Pressure
- 5.48 m Suction Head
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

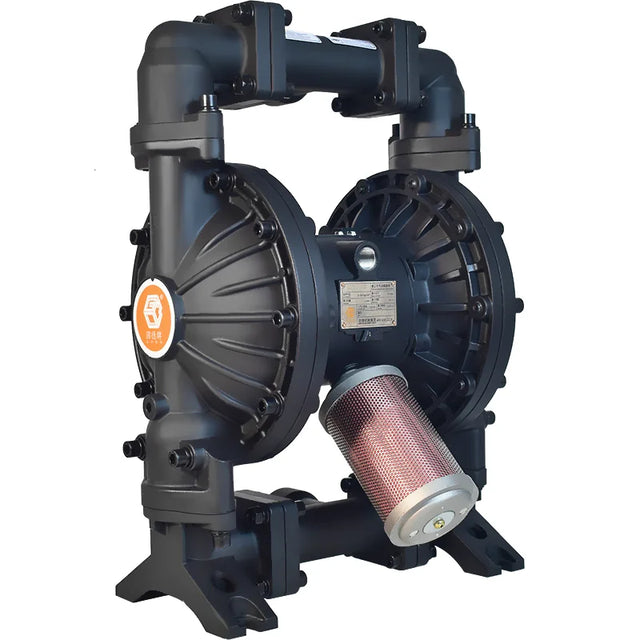

The BFQ-40L GODO pneumatic diaphragm pump is a reliable air-operated double diaphragm (AODD) pump designed for efficient transfer of sewage, chemicals, and slurry fluids. Built with a lightweight aluminum alloy body, it offers durability while maintaining ease of handling and installation.
With a maximum flow rate of 378.5 L/min and pressure up to 8.4 bar, this pump ensures stable and safe operation in industrial environments, especially where electrical equipment is not suitable.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump (AODD) |
| Model | BFQ-40L |
| Brand | GODO |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Up to 8.4 Bar |
| Flow Rate | 378.5 L/min |
| Control Method | Pneumatic |
| Power Source | Compressed Air |
| Pump Body Material | Aluminum Alloy |
| Sealing Type | Diaphragm |
| Outlet Size | 1-1/2 inch BSP (F) |
| Inlet Size | 1-1/2 inch BSPP (G) |
| Discharge Pipe Size | 1-1/2 inch BSP (F) |
| Suction Head | 5.48 m |
| Max Particle Size | 4.8 mm |
| Suitable Media | Sewage / Chemicals / Slurry |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Chemical |
| Warranty | 12 Months |
Key Features
- Air-operated diaphragm (AODD) pump design
- Lightweight aluminum alloy construction
- High flow rate up to 378.5 L/min
- Pressure capability up to 8.4 bar
- Handles solids up to 4.8 mm
- Safe for hazardous and explosion-risk environments
Typical Applications
- Sewage and wastewater treatment
- Chemical transfer systems
- Slurry and abrasive fluid handling
- Industrial processing
- Marine and mining operations
- Oil and fluid transfer
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
