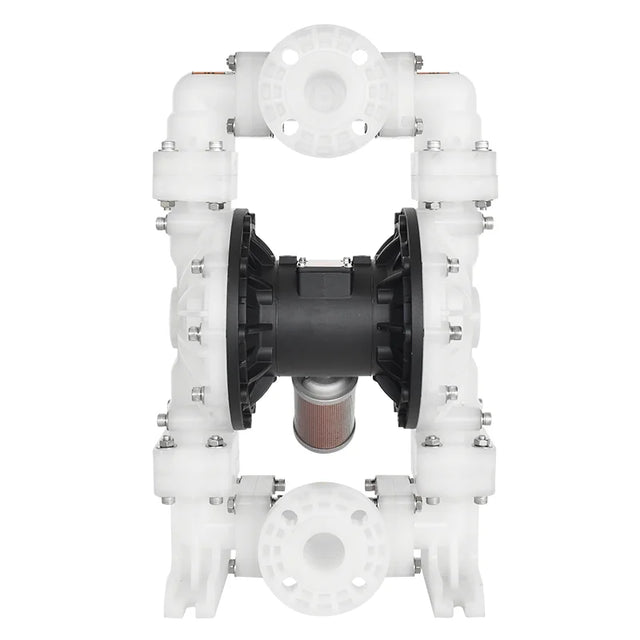

BFQ-40S GODO Pneumatic Diaphragm Pump, PP 1-1/2" 8.4Bar 378.5L/min
The BFQ-40S GODO pneumatic diaphragm pump is a high-efficiency air-operated pump designed for transferring water, oil, chemicals, and sewage.
- 378.5 L/min Flow Rate
- 8.4 Bar Max Continuous Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The BFQ-40S GODO pneumatic diaphragm pump is a high-efficiency air-operated pump designed for transferring water, oil, chemicals, and sewage. Constructed from durable engineering plastic (PP), it provides excellent chemical resistance and reliable performance in corrosive environments.
With a maximum pressure of 8.4 bar and flow rate up to 378.5 L/min, this double diaphragm pump is ideal for high-volume industrial fluid handling applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump |
| Model | BFQ-40S |
| Brand | GODO |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Medium to High Pressure |
| Max Continuous Pressure | 8.4 Bar |
| Flow Rate | 378.5 L/min |
| Speed Range | Air-controlled operation |
| Motor Type | Pneumatic |
| Power Source | Compressed Air |
| Voltage | Not Applicable |
| Pump Body Material | Engineering Plastic (PP) |
| Inlet/Outlet Size | 1-1/2" BSP (F) |
| Connector Type | Threaded |
| Suitable Media | Water / Oil / Chemicals / Sewage |
| Certification | CE |
| Feature | High Efficiency |
| Application Scope | Industrial fluid transfer |
| Standard | Standard |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Air-operated double diaphragm design
- High flow rate up to 378.5 L/min
- Max pressure up to 8.4 bar
- PP construction for chemical resistance
- Suitable for oil, water, and chemical transfer
- Reliable and low maintenance operation
Typical Applications
- Chemical transfer
- Sewage systems
- Oil and water handling
- Industrial fluid transfer
- Wastewater treatment
- Manufacturing processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
