SAMSON 1180-9116 24V DC Circuit Board for Type 3372 Actuator
The SAMSON 1180-9116 Circuit Board is an electronic replacement component associated with SAMSON Type 3372 pneumatic valve actuator assemblies.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

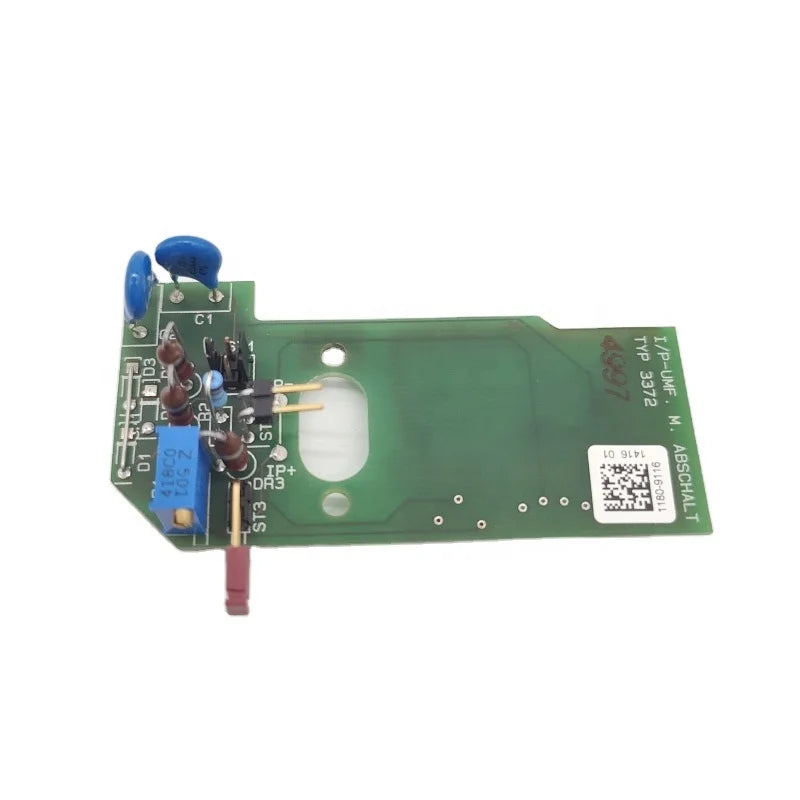

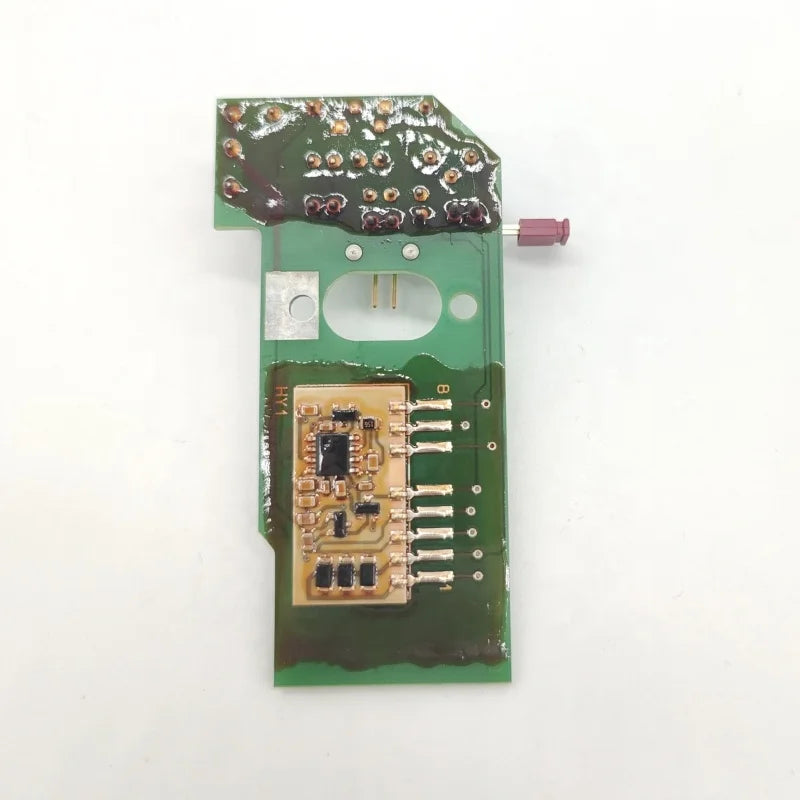

The SAMSON 1180-9116 Circuit Board is an electronic replacement component associated with SAMSON Type 3372 pneumatic valve actuator assemblies. Identified in industrial parts records as a 24V DC power board, this component is intended for servicing compatible electrical control equipment used alongside pneumatic control valves. It provides a replacement option for technicians maintaining actuator assemblies and associated control electronics in industrial process automation systems.

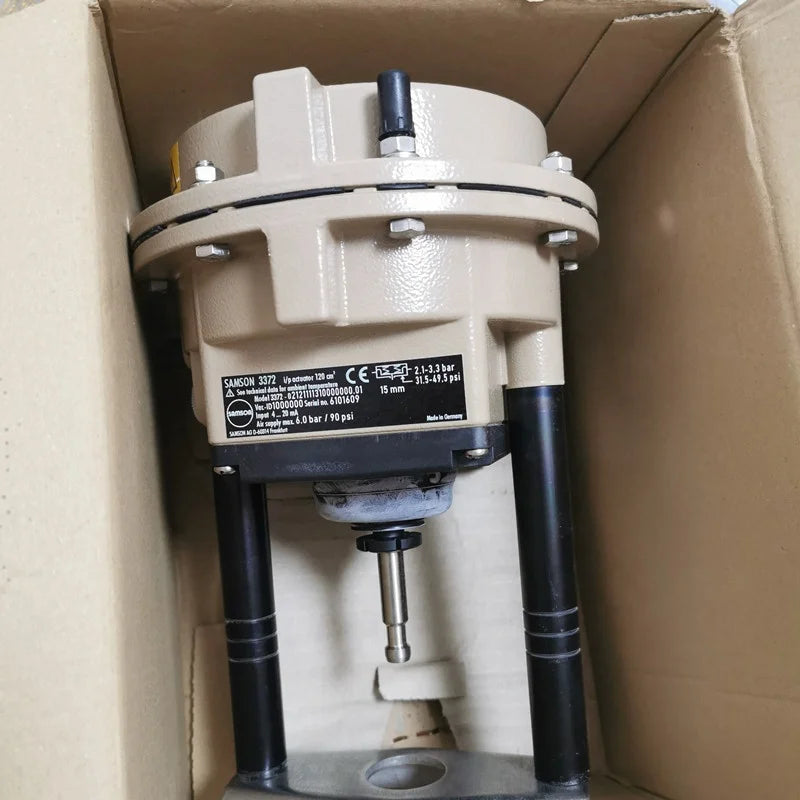

The SAMSON Type 3372 is a pneumatic diaphragm actuator used to operate compatible industrial control valves. Unlike the actuator's mechanical diaphragm and spring assembly, the 1180-9116 is an electronic circuit board associated with a specific equipment configuration. Its replacement requires verification of the installed electrical assembly, board revision, and connection arrangement. The component is relevant to maintenance operations in food and beverage production, chemical processing, water treatment, manufacturing, and industrial utilities. Historical industrial shipment records identify part number 1180-9116 as a 24V DC power board associated with a SAMSON Type 3372 actuator used in a brewery.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Industrial Actuator Circuit Board |
|
Manufacturer / Brand |
SAMSON |
|
Main Part Number |
1180-9116 |
|
Product Type |
Electronic Circuit Board |
|
Component Category |
Actuator Electrical Spare Parts |
|
Component Description |
DC Power Board |
|
Reported Nominal Voltage |
24V DC |
|
Associated Equipment |
SAMSON Type 3372 |
|
Associated Equipment Type |
Pneumatic Valve Actuator |
|
Primary Application |
Industrial Valve Equipment Maintenance |
|
Technology |
Electronic Circuit Assembly |
|
Installation Type |
Internal Equipment Replacement Component |
|
Electrical Supply Type |
Direct Current |
|
Exact Board Function |
Requires Verification Against Installed Assembly |
|
Circuit Board Revision |
Requires Matching to Original Component |
|
Electrical Connectors |
Match Original Board Configuration |
|
Mechanical Dimensions |
Verify Against Original Component |
|
Mounting Arrangement |
Equipment-Specific |
|
Installation Requirement |
Compatible Electrical Assembly |
|
Maintenance Function |
Replacement of Compatible Electronic Board |
|
Application Scope |
Industrial Valve and Actuator Control Equipment |
|
Condition |
New |
|
Warranty |
1 Year |
The 24V DC description and association with Type 3372 are supported by historical parts shipment records, not an independently verified SAMSON datasheet for part 1180-9116. SAMSON's official Type 3372 documentation identifies the actuator as pneumatic and requires complete equipment identification when selecting spare parts.
Key Features
SAMSON replacement electronic circuit board identified by part number 1180-9116
Reported 24V DC electrical power board configuration
Associated with compatible SAMSON Type 3372 actuator equipment
Designed for replacement within a matching industrial electrical assembly
Supports maintenance of electronic equipment used in pneumatic valve control installations
Part-number identification for accurate industrial spare-part procurement
Suitable for replacing a failed board where the original part number matches
Useful for servicing automated industrial valve systems
Separate electronic component that does not require purchasing a complete actuator when an appropriate replacement is available
Designed for installation by qualified industrial electrical and instrumentation technicians
Supports equipment refurbishment and planned maintenance activities
Suitable for industrial spare-part inventory and maintenance operations
Typical Applications
SAMSON Type 3372 actuator assembly servicing
Industrial valve control equipment maintenance
Replacement of compatible 24V DC power boards
Food and beverage processing plants
Brewery production and process control systems
Chemical and petrochemical facilities
Water and wastewater treatment equipment
Power generation and utility installations
Industrial manufacturing and production machinery
Pneumatic control valve instrumentation servicing
Industrial automation equipment refurbishment
Electrical maintenance and spare-part replacement
Planned industrial equipment shutdowns
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
