BSJ Super Q Roots Vacuum Pump, 100–4140m³/h Low-Noise Oil-Free Vacuum Pump
The BSJ Super Q roots vacuum pump is a high-capacity, oil-free vacuum pump designed for industrial applications requiring large pumping rates and low-noise operation.
- 100 – 4140 m³/h Flow Rate
- 0.4 – 11 kW Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The BSJ Super Q roots vacuum pump is a high-capacity, oil-free vacuum pump designed for industrial applications requiring large pumping rates and low-noise operation. Built with mechanical roots technology, it ensures efficient gas transfer and stable vacuum performance without contamination.
With a pumping capacity of 100–4140 m³/h and corrosion-resistant construction, this pump is ideal for demanding vacuum systems such as furnaces, chambers, and industrial processing equipment.

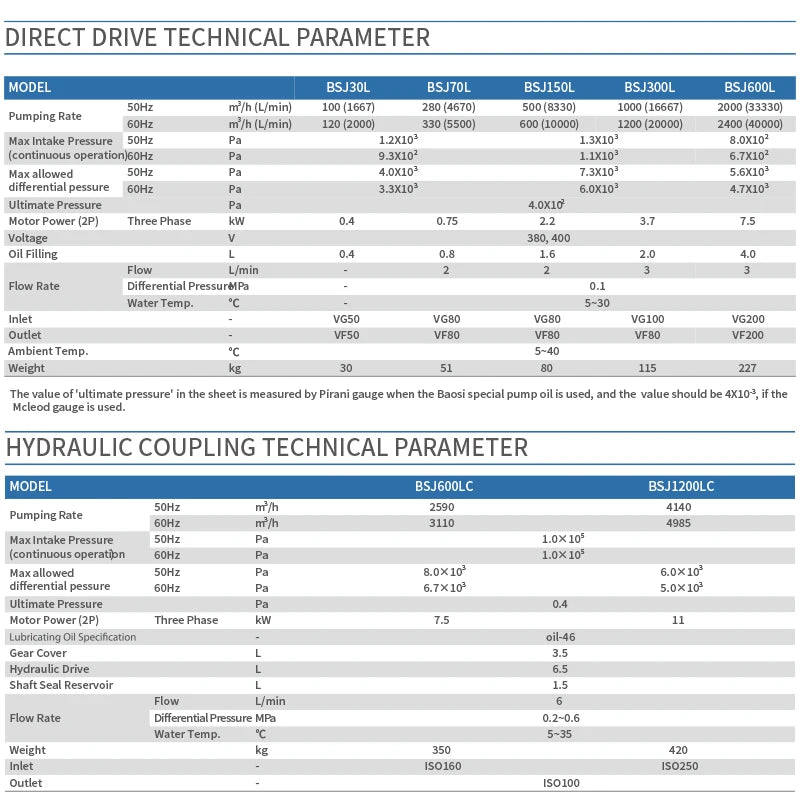

Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Roots Vacuum Pump |
| Model | BSJ |
| Brand | Super Q |
| Pump Type | Vacuum Pump |
| Structure | Mechanical Roots |
| Pressure | High Vacuum |
| Max Continuous Pressure | Designed for high vacuum systems |
| Flow Rate | 100 – 4140 m³/h |
| Speed Range | Standard motor speed |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 0.4 – 11 kW |
| Voltage | 380 – 400 V |
| Pump Body Material | Aluminum Alloy / Cast Iron |
| Sealing Type | Dry (Oil-Free) |
| Fuel Type | Electric |
| Suitable Media | Air |
| Noise Level | Low Noise Design |
| Application Scope | Industrial vacuum systems |
| Dimensions | Model dependent |
| Warranty | 12 Months |

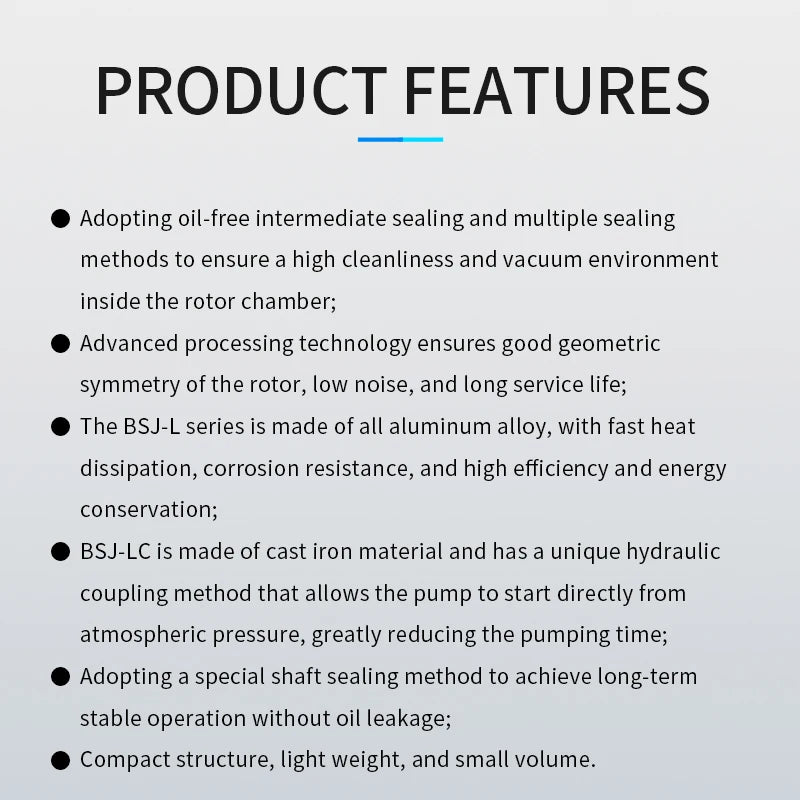

Key Features
- High pumping capacity up to 4140 m³/h
- Oil-free operation for clean vacuum
- Low noise performance
- Corrosion-resistant construction
- Stable and efficient vacuum output
- Designed for continuous industrial use
Typical Applications
- Vacuum deposition systems
- Vacuum drying processes
- Vacuum degassing
- Leak detection equipment
- Vacuum furnaces
- Heat treatment systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
