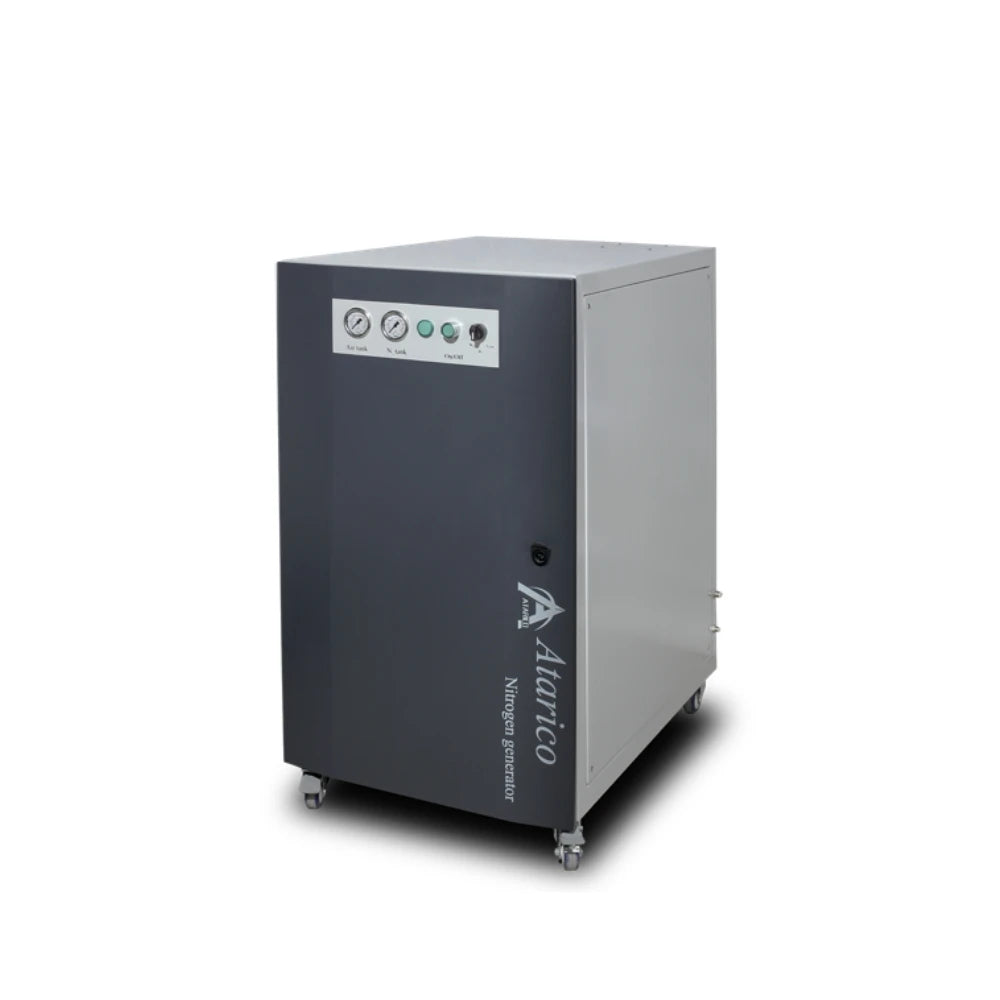

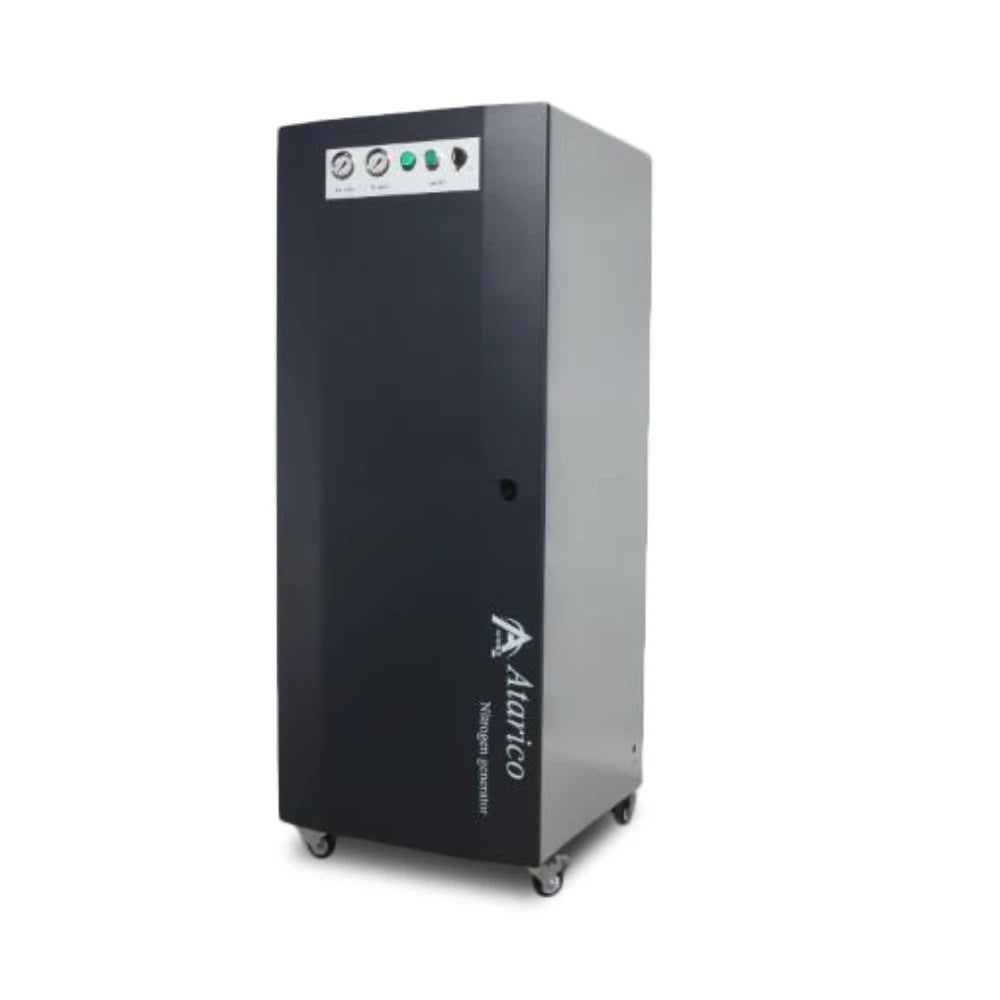

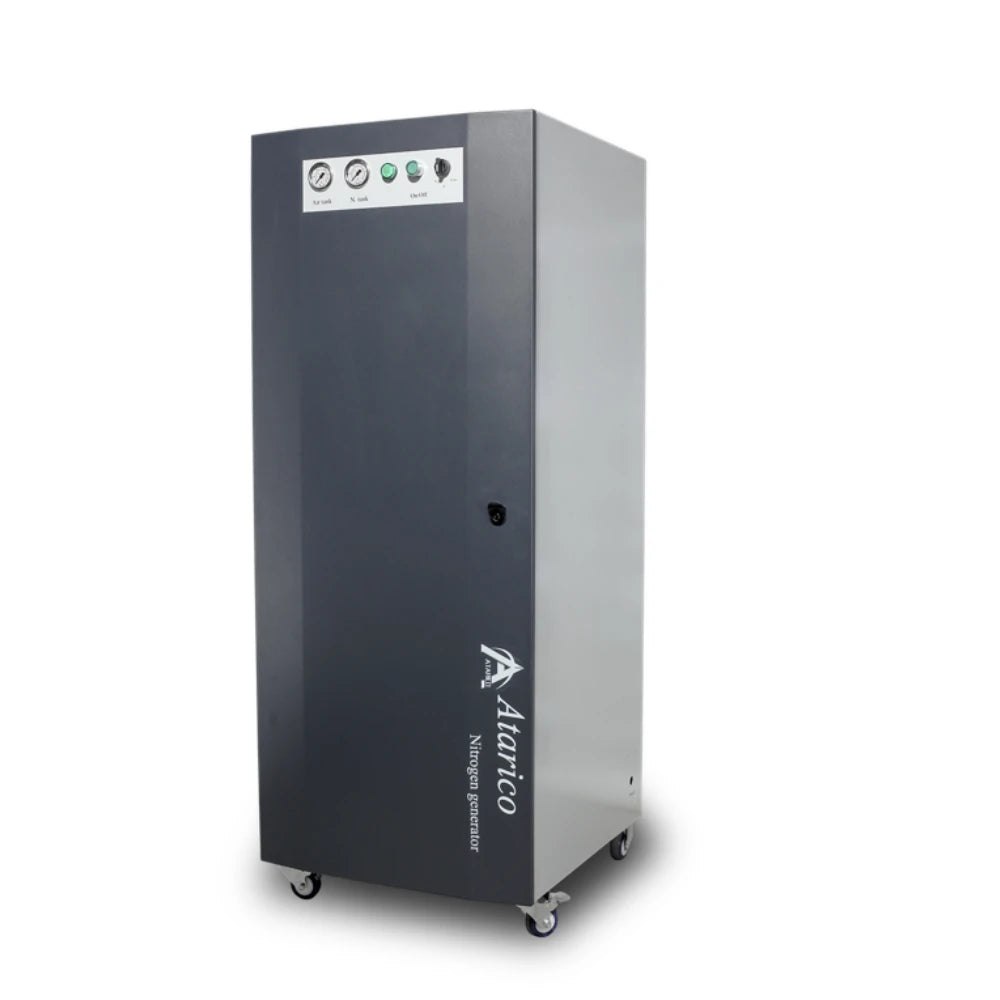

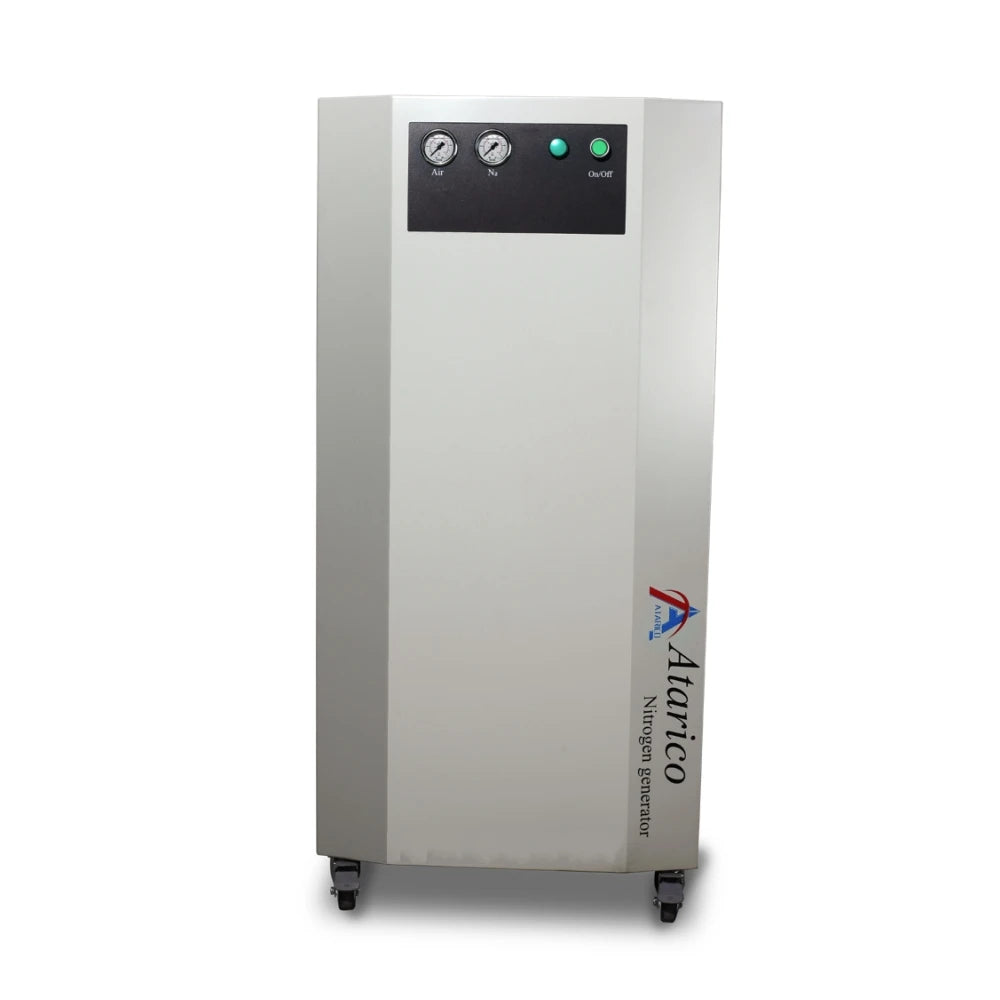

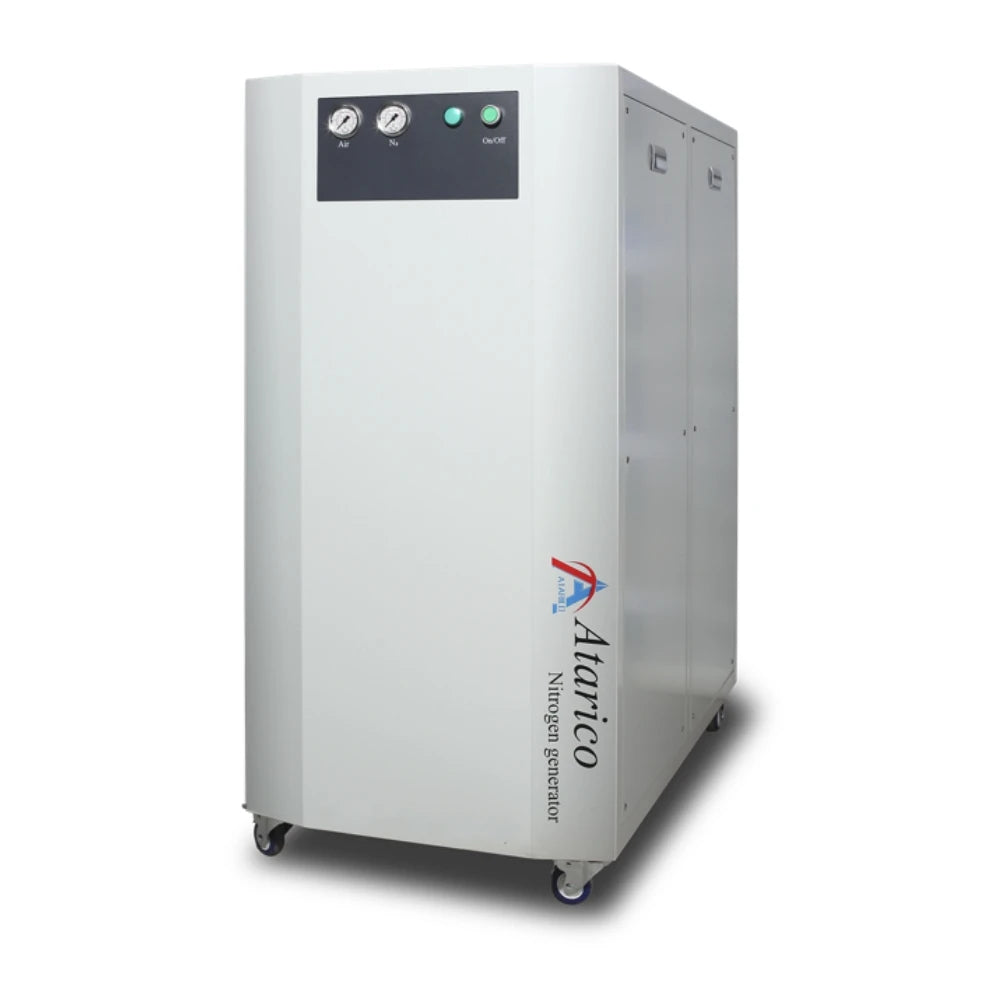

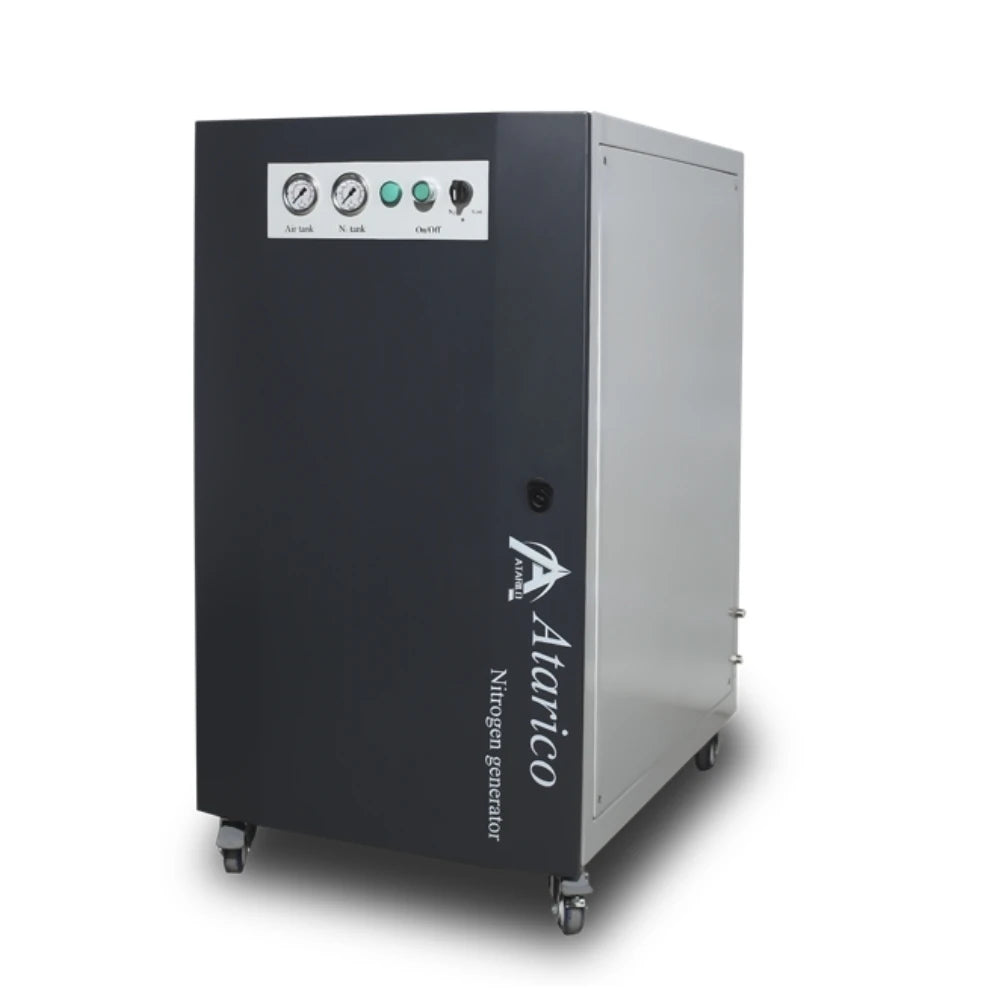

Cape Golden Lab Nitrogen Generator, 32L/min 0.75kW 99.9% Purity
The Cape Golden lab mini nitrogen generator is a compact, high-efficiency system designed for on-site nitrogen production in laboratories and industrial environments.
- 32 L/min Flow Rate
- 0.69 MPa (100 psi) Export Pressure
- 0.75 kW Power Consumption
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Cape Golden lab mini nitrogen generator is a compact, high-efficiency system designed for on-site nitrogen production in laboratories and industrial environments. Engineered for deep cooling and precision applications, it delivers high-purity nitrogen with stable pressure and low energy consumption.
With nitrogen purity up to 99.9% and flow rate of 32 L/min, this system provides reliable and continuous nitrogen supply for research, processing, and analytical applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Nitrogen Generator |
| Model | Lab Mini Nitrogen System |
| Brand | Cape Golden |
| System Type | Gas Generation System |
| Structure | Integrated Unit |
| Gas Type | Nitrogen |
| Nitrogen Purity | 97% – 99.9% |
| Flow Rate | 32 L/min |
| Export Pressure | 0.69 MPa (100 psi) |
| Dew Point | -50°C |
| Power Consumption | 0.75 kW |
| Motor Type | Electric |
| Power Source | Electric |
| Voltage | 220V / 380V |
| Frequency | 50 / 60 Hz |
| Control System | PLC |
| Core Components | PLC / Pressure Vessel |
| Cooling Method | Air Cooling |
| Residual Liquid | None |
| Phthalate Content | None |
| Operating Temperature | 5 – 35°C |
| Max Altitude | 2000 m |
| Dimensions | 600 × 600 × 800 mm |
| Weight | 120 kg |
| Certification | Industrial Standard |
| Application Scope | Laboratory / Industrial |
| Warranty | 12 Months |
Key Features
- Nitrogen purity up to 99.9%
- Compact lab-scale design
- Low power consumption (0.75 kW)
- Stable output pressure at 0.69 MPa
- PLC-controlled operation
- Oil-free and clean gas production
Typical Applications
- Laboratory research
- Deep cooling systems
- Food processing
- Industrial nitrogen supply
- Analytical equipment
- Manufacturing processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
