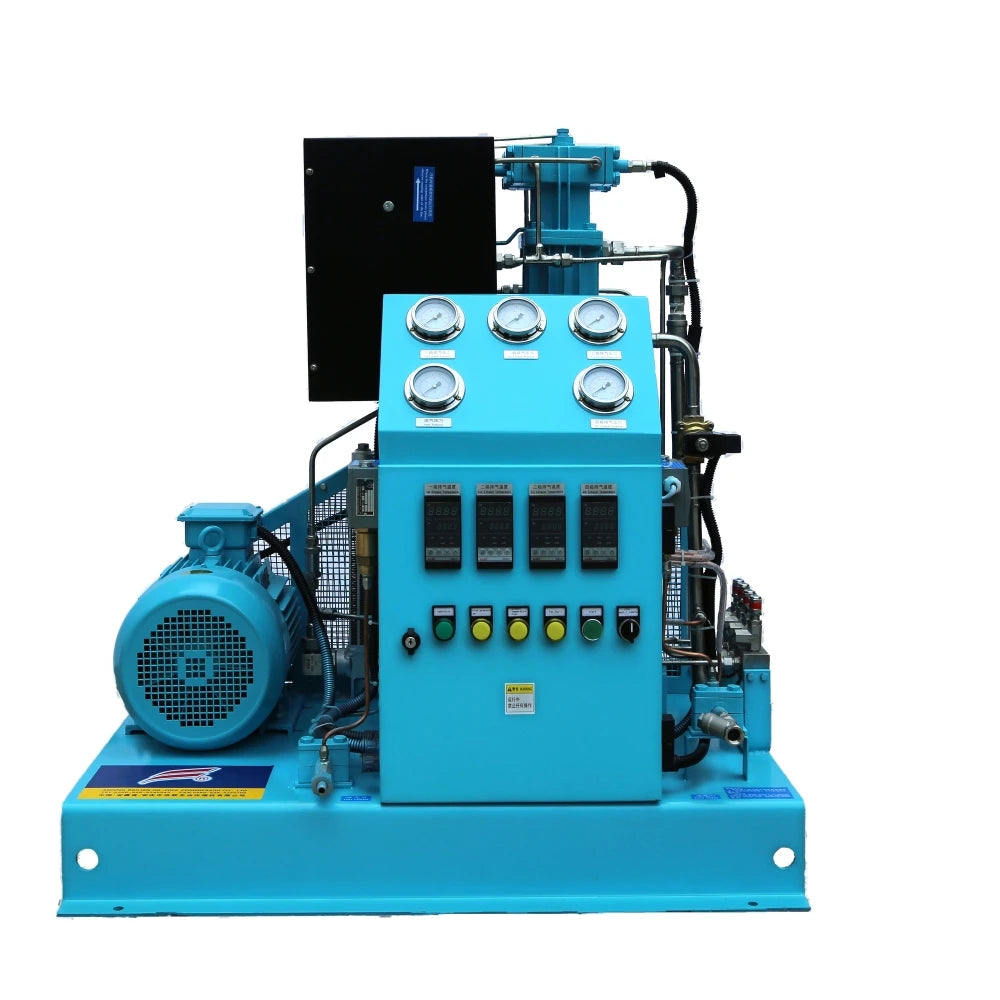

Cape Golden Oxygen Booster Compressor System, 150–300Bar Oil-Free Piston 300Nm³/h
The Cape Golden oxygen booster compressor system is a high-pressure, oil-free piston compressor with integrated tank support, designed for safe and efficient oxygen compression in industrial and medical environments.
- 1 – 300 Nm³/h Flow Rate
- 0.4 – 14 Bar Working Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Cape Golden oxygen booster compressor system is a high-pressure, oil-free piston compressor with integrated tank support, designed for safe and efficient oxygen compression in industrial and medical environments. Featuring a 4-stage, 4-cylinder configuration, it delivers stable and contamination-free gas boosting.
With discharge pressure up to 300 bar and flow capacity up to 300 Nm³/h, this system is ideal for oxygen generation plants, cylinder filling, and high-pressure gas storage applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oxygen Booster Compressor System |
| Model | -3 |
| Brand | Cape Golden |
| Compressor Type | Piston Compressor |
| Configuration | Stationary |
| Structure | Multi-Stage (4 Stage, 4 Cylinder) |
| Pressure | High Pressure |
| Inlet Pressure | 4 Bar |
| Outlet Pressure | 150 – 300 Bar |
| Working Pressure | 0.4 – 14 Bar |
| Flow Rate | 1 – 300 Nm³/h |
| Air Capacity | 80 Nm³/h |
| Speed Range | System controlled |
| Motor Type | Electric Motor |
| Power Source | AC Power |
| Voltage | 220V / 360V / 380V / 415V / 440V |
| Frequency | 50 / 60 Hz |
| Cooling Method | Air / Water Cooling |
| Lubrication Style | Oil-Free |
| Core Components | Motor / Pump / Engine |
| Noise Level | Low Noise (Mute) |
| Dimensions | 1650 × 950 × 1470 mm |
| Weight | 960 kg |
| Certification | ISO9001 / ISO13485 / CE |
| Application Scope | Industrial / Medical Oxygen Systems |
| Inspection | Test Report & Video Provided |
| Warranty | 12 Months |
Key Features
- Oil-free compression for oxygen safety
- High pressure up to 300 bar
- 4-stage, 4-cylinder compression system
- Flow capacity up to 300 Nm³/h
- Integrated system suitable for tank applications
- Reliable continuous-duty operation
Typical Applications
- Oxygen generation systems
- Cylinder filling stations
- Medical oxygen supply
- Industrial gas boosting
- Gas storage systems
- Manufacturing processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
