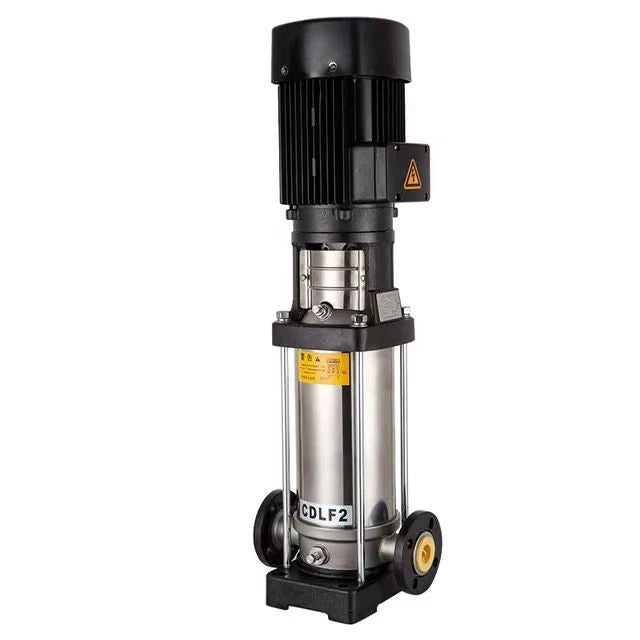

CDLF Sinyane Multistage Centrifugal Pump, 8Bar 259m Head Stainless Steel Vertical Pump
The CDLF Sinyane multistage centrifugal pump is a vertical high-pressure water pump designed for efficient fluid transfer in industrial, commercial, and municipal systems.
- Up to 85 m³/h Flow Rate
- 0 – 26 Bar Pressure
- 259 m Max Head
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The CDLF Sinyane multistage centrifugal pump is a vertical high-pressure water pump designed for efficient fluid transfer in industrial, commercial, and municipal systems. Manufactured from stainless steel, it offers excellent corrosion resistance and long-term durability.
With a maximum head of 259 m and pressure capability up to 26 bar, this pump is ideal for booster systems, jockey pump applications, and high-pressure water distribution.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Multistage Centrifugal Water Pump |
| Model | CDLF |
| Brand | Sinyane |
| Pump Type | Centrifugal Pump |
| Structure | Vertical Multistage |
| Pressure | 0 – 26 Bar |
| Max Head | 259 m |
| Flow Rate | Up to 85 m³/h |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Range | 0.37 – 75 kW |
| Power Range (HP) | 0.5 – 100 HP |
| Voltage | 110V / 220V / 380V (Customizable) |
| Pump Body Material | Stainless Steel |
| Sealing Type | Mechanical Seal |
| Outlet Size | 25 – 200 mm |
| Certification | CE / ISO |
| Suitable Media | Clean Water |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Booster Systems |
| Warranty | 12 Months |
Key Features
- Vertical multistage centrifugal design
- High pressure capability up to 26 bar
- Maximum head up to 259 m
- Stainless steel corrosion-resistant construction
- Compact footprint for vertical installations
- Efficient and stable performance
Typical Applications
- Water booster systems
- HVAC circulation systems
- Irrigation and agriculture
- Industrial water supply
- Municipal water distribution
- Fire protection and jockey pump systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
