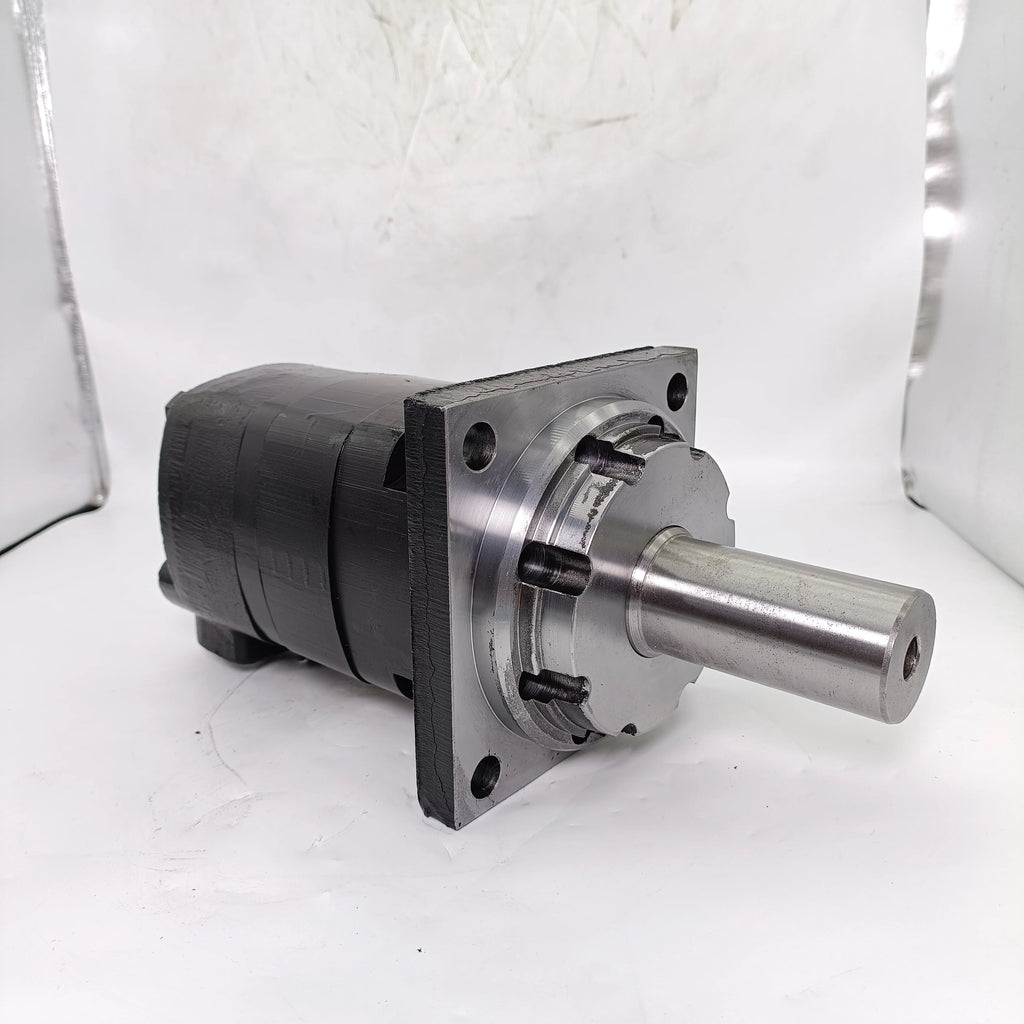

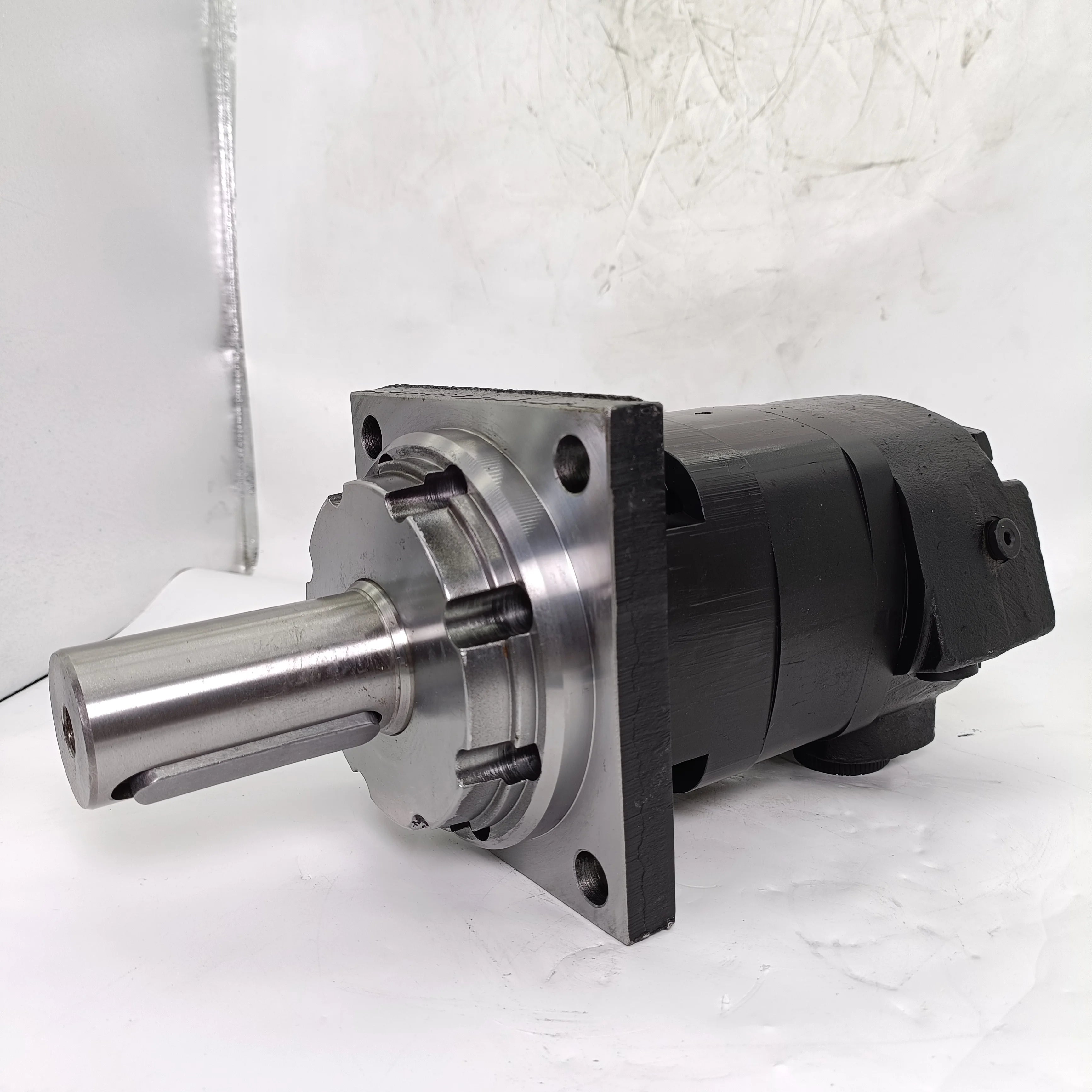

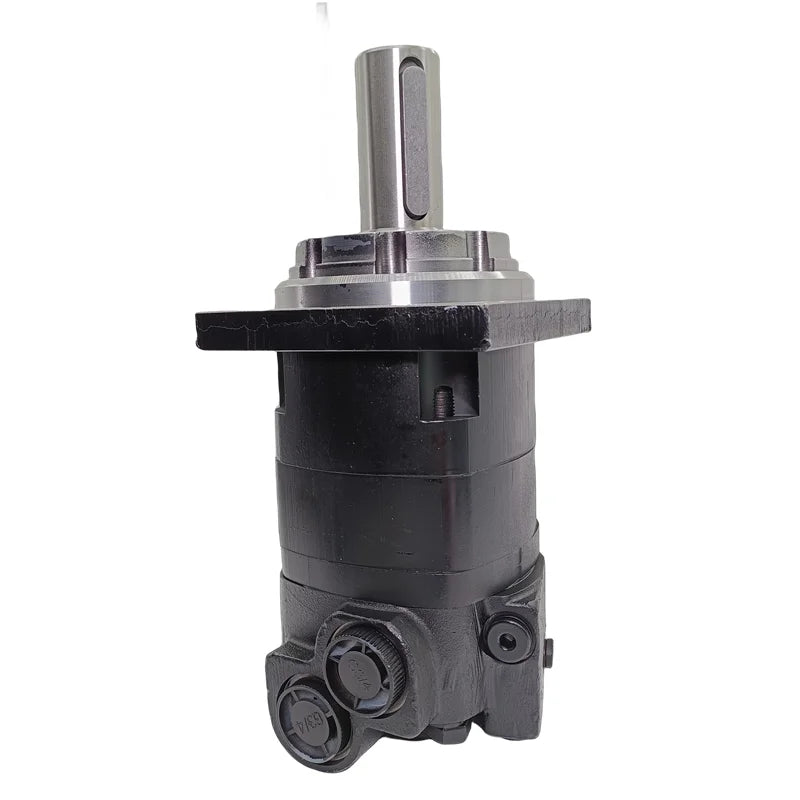

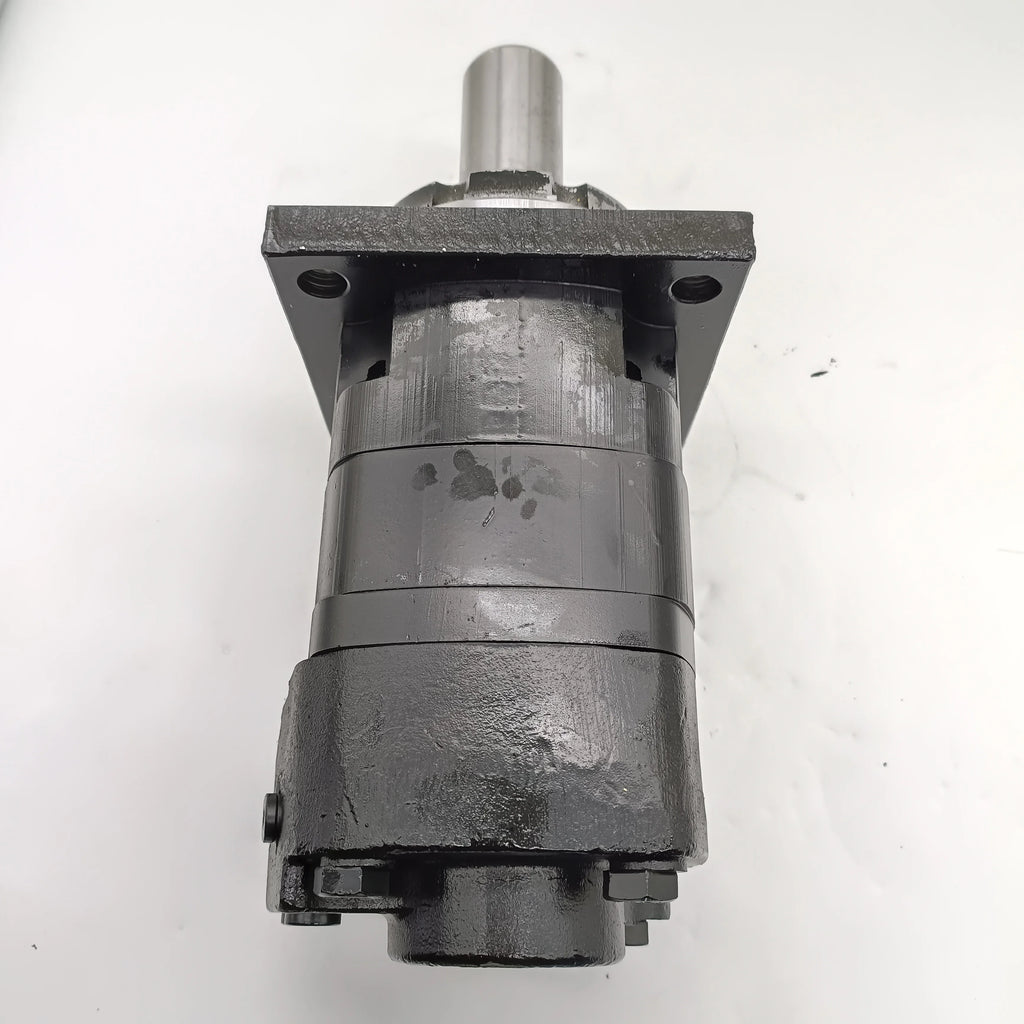

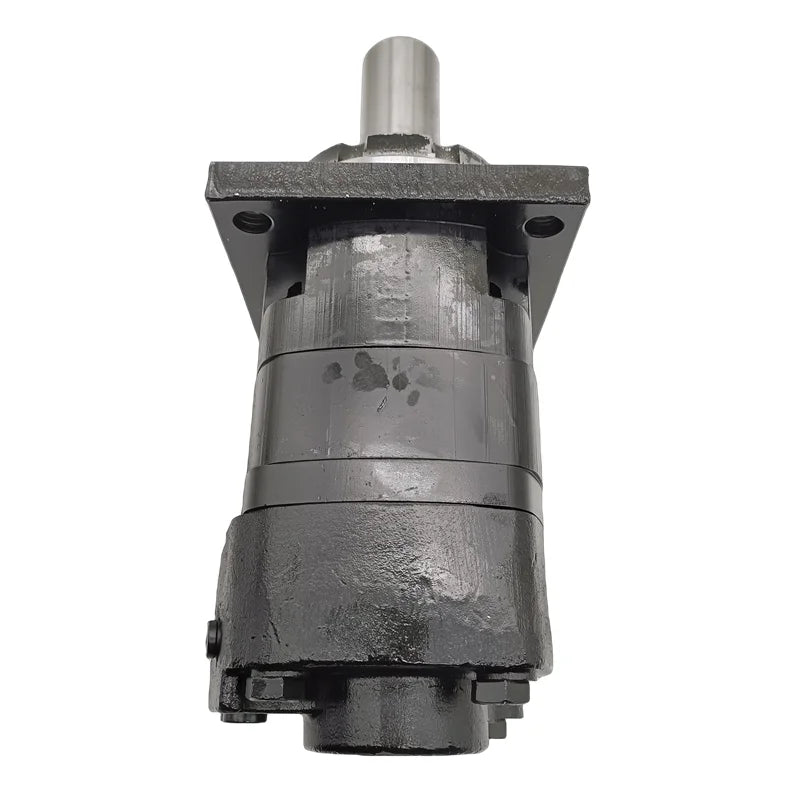

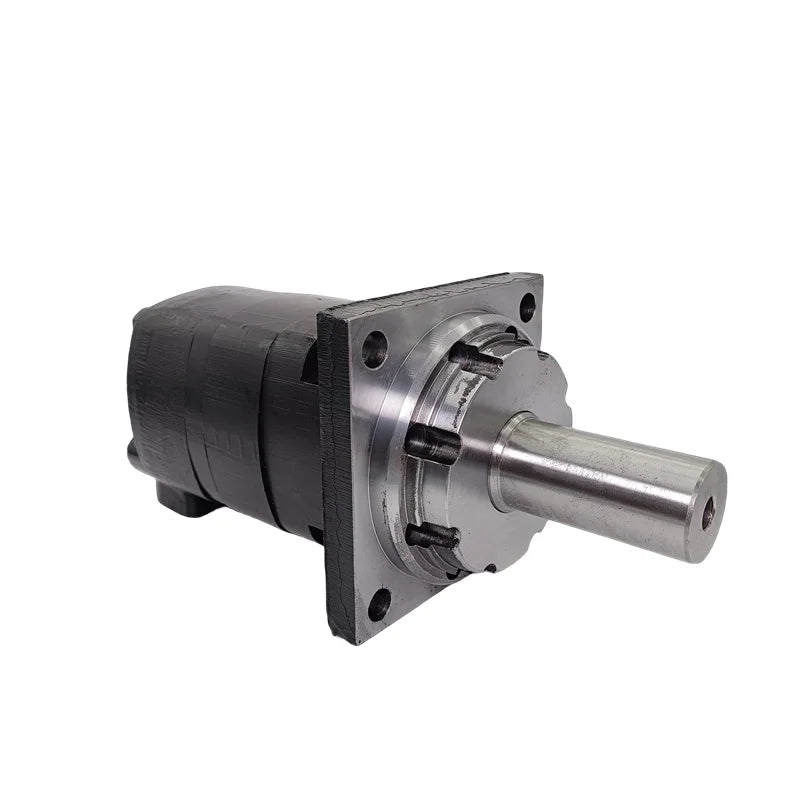

Char-Lynn 109 Series Hydraulic Orbital Motor, High Torque
The Char-Lynn 109 series hydraulic orbital motor is designed to deliver reliable high torque performance in low-speed hydraulic drive systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Char-Lynn 109 series hydraulic orbital motor is designed to deliver reliable high torque performance in low-speed hydraulic drive systems. The motor utilizes gerotor technology to provide smooth rotational output and efficient hydraulic energy conversion.
Models such as 109-1116-006, 109-1105-006, 109-1544-006, and 109-1052-006 are widely used in mobile equipment and industrial machinery where durable hydraulic drive performance is required.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Hydraulic Orbital Motor |
| Series | 109 Series |
| Brand | Char-Lynn |
| Motor Type | Orbital / Gerotor Motor |
| Operation | Low Speed High Torque |
| Mounting Type | Flange Mount |
| Working Medium | Hydraulic Oil |
| Application Type | Hydraulic Drive Systems |
| Condition | New |
| Warranty | 1 Year |
Key Features
• High torque hydraulic motor design
• Smooth low-speed rotational performance
• Durable gerotor motor construction
• Reliable operation in heavy-duty equipment
• Efficient hydraulic power conversion
• Long service life in demanding environments
Typical Applications
• Construction equipment
• Agricultural machinery
• Industrial conveyors
• Hydraulic drive systems
• Material handling equipment
Shipping & Support
• Fast dispatch – Australia & world-wide shipping
• Technical assistance available
• 1-year manufacturer warranty
