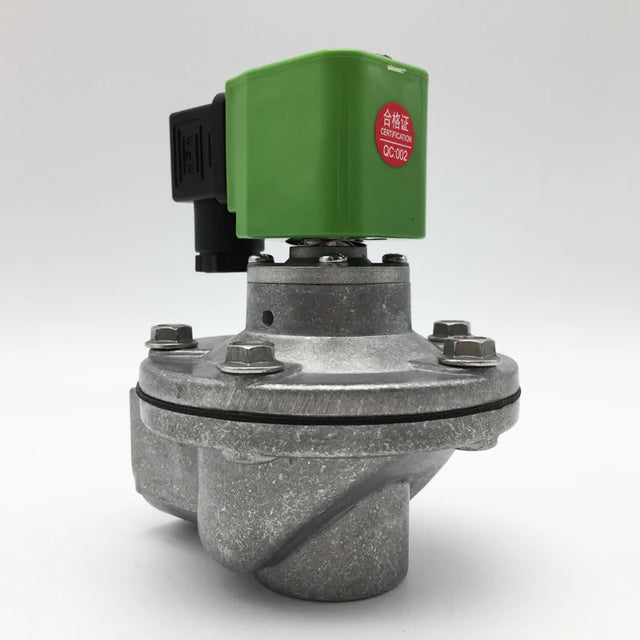

CQD-Z-25 Pulse Jet Diaphragm Valve, 1" Right Angle 25 mm Orifice
The CQD-Z-25 pulse jet diaphragm valve is designed for efficient compressed air discharge in industrial dust collection systems.
- Solenoid Diaphragm Valve Valve Type
- 0.35 – 0.85 MPa Operating Pressure
- 24V DC Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The CQD-Z-25 pulse jet diaphragm valve is designed for efficient compressed air discharge in industrial dust collection systems. Its right-angle structure enables rapid air release, ensuring effective cleaning of filter bags and maintaining stable filtration performance.
With a 1" port size and 25 mm orifice, this valve is suitable for medium-duty pulse jet systems. Its solenoid-operated diaphragm design supports reliable operation in continuous industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pulse Jet Diaphragm Valve |
| Model | CQD-Z-25 |
| Pump Type | Pulse Jet Valve |
| Structure | Right Angle |
| Open Flow Rate | System Dependent |
| Power Source | Electric (Solenoid) |
| Voltage | 24V DC |
| Port Size | 1" |
| Orifice Size | 25 mm |
| Valve Type | Solenoid Diaphragm Valve |
| Connection Type | Threaded |
| Material | Aluminium Alloy |
| Operating Pressure | 0.35 – 0.85 MPa |
| Temperature Range | -20°C to +80°C |
| Application | Dust Collection Systems |
| Warranty | 1 Year |
Key Features
-
Right-angle design for efficient air discharge
-
25 mm orifice for stable pulse performance
-
Solenoid diaphragm operation for reliable control
-
Compact structure for easy installation
-
Suitable for continuous industrial use
Typical Applications
-
Baghouse dust collectors
-
Industrial filtration systems
-
Cement and steel plants
-
Powder processing equipment
-
Bulk material handling systems
Shipping & Support
-
Fast dispatch world-wide shipping
-
Technical assistance available
-
1 Year warranty
