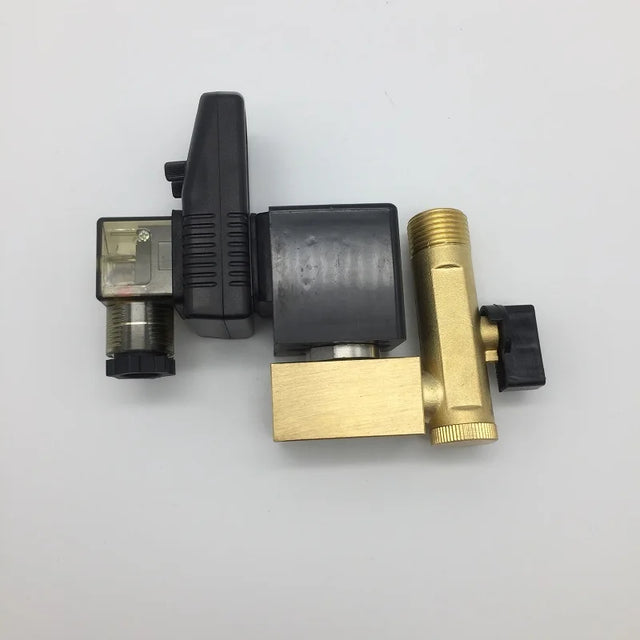

CQPC 1/2" Solenoid Auto Drain Valve with Timer, 0.2–4 MPa Brass Unit
The CQPC 1/2" solenoid auto drain valve with timer is designed for automatic condensate removal in compressed air systems.
- Electric Timer Drain Valve Valve Type
- 0.2 – 4 MPa (2 – 40 bar) Working Pressure
- Timer Controlled Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The CQPC 1/2" solenoid auto drain valve with timer is designed for automatic condensate removal in compressed air systems. It efficiently drains water, oil, and contaminants, helping maintain system performance and protect downstream equipment.
Equipped with an electric timer control, this valve enables scheduled drainage for consistent operation. Its durable brass construction and compact design make it suitable for continuous industrial use across filters, dryers, separators, and air tanks.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Solenoid Auto Drain Valve |
| Brand | CQPC |
| Valve Type | Electric Timer Drain Valve |
| Port Size | 1/2 Inch |
| Structure | Inline |
| Power Source | Electric |
| Control Type | Timer Controlled |
| Working Pressure | 0.2 – 4 MPa (2 – 40 bar) |
| Working Medium | Water / Gas / Oil |
| Body Material | Brass |
| Application Scope | Compressed Air Systems |
| Installation Type | Inline |
| Condition | New |
| Warranty | 1 Year |
Key Features
- Timer-controlled automatic condensate discharge
- Efficient removal of water, oil, and contaminants
- Durable brass construction for long service life
- Suitable for high-pressure compressed air systems
- Compact design for easy installation
- Reliable performance in continuous industrial use
Typical Applications
- Air compressors
- Air filters and separators
- Air dryers
- Gas tanks and coolers
- Industrial pneumatic systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 1-year warranty
