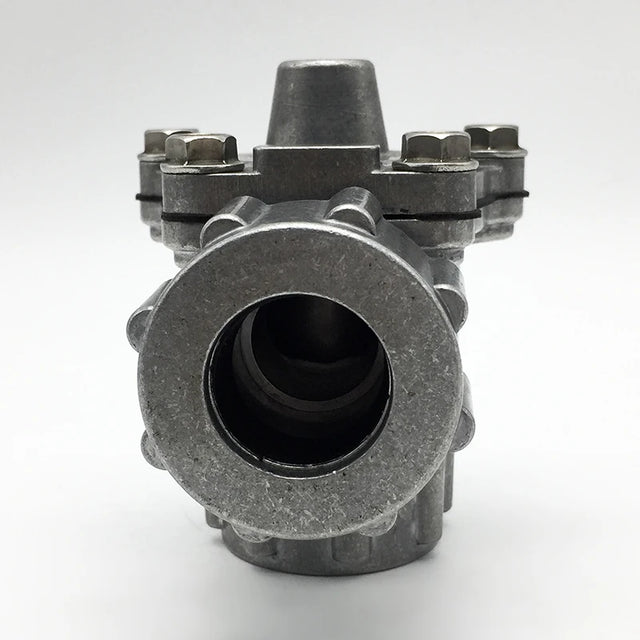

Big Nuts CQPC Pulse Jet Diaphragm Valve, Right-Angle Solenoid Dust Collector Valve
The Big Nuts CQPC pulse jet diaphragm valve is engineered for precise compressed air control in industrial dust collection systems.
- Electromagnetic Pulse Valve Valve Type
- 0.35 – 8.5 bar Working Pressure
- 24V DC / 110V AC / 220V AC Voltage Options
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Big Nuts CQPC pulse jet diaphragm valve is engineered for precise compressed air control in industrial dust collection systems. Its right-angle configuration enables rapid air discharge, ensuring efficient cleaning of filter bags and maintaining optimal filtration performance.
Designed with a reinforced “Big Nuts” threaded connection, this valve delivers enhanced sealing reliability and durability under demanding operating conditions. It is ideal for continuous-duty industrial environments requiring consistent and powerful pulse jet performance.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pulse Jet Diaphragm Valve |
| Model | Big Nuts Type |
| Brand | CQPC |
| Valve Type | Electromagnetic Pulse Valve |
| Structure | Right-Angle |
| Power Source | Electric (Solenoid) |
| Voltage Options | 24V DC / 110V AC / 220V AC |
| Working Pressure | 0.35 – 8.5 bar |
| Body Material | Die-Cast Aluminium |
| Diaphragm Material | NBR / TPE / VITON |
| Connection Type | Big Nut Threaded |
| Operating Temperature | -20°C to +85°C |
| Working Medium | Compressed Air |
| Application Scope | Industrial Dust Collection Systems |
| Warranty | 1 Year |
Key Features
- Right-angle design for fast and efficient air discharge
- Reinforced “Big Nuts” connection for improved sealing
- High response speed for effective pulse jet cleaning
- Durable diaphragm for long service life
- Reliable performance in continuous industrial operation
- Robust aluminium body for harsh environments
Typical Applications
- Baghouse dust collection systems
- Industrial air filtration units
- Cement and steel plants
- Food and pharmaceutical processing
- Mining and bulk material handling
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12 Months Warranty
