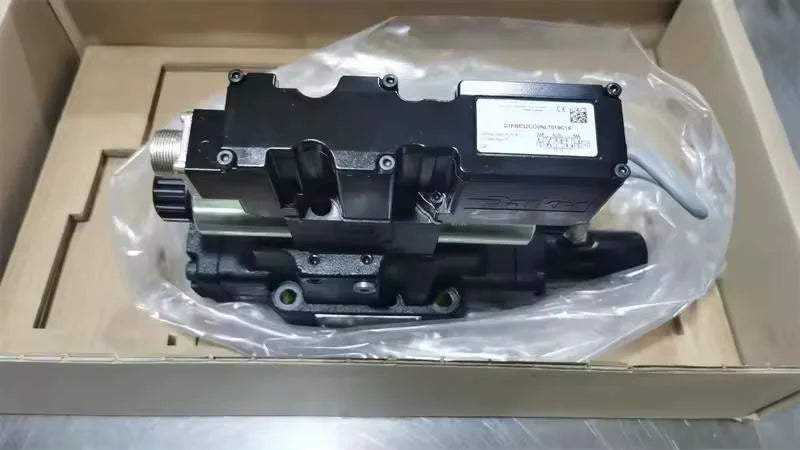

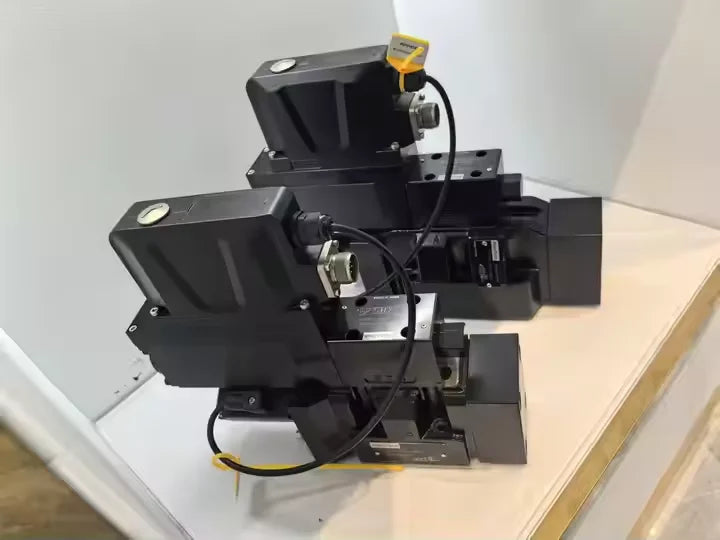

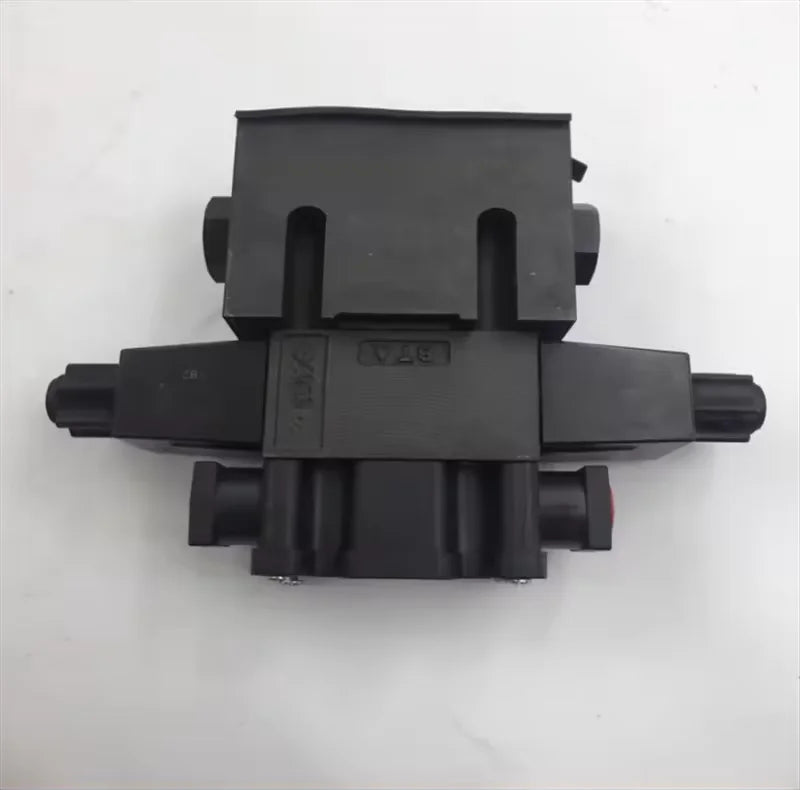

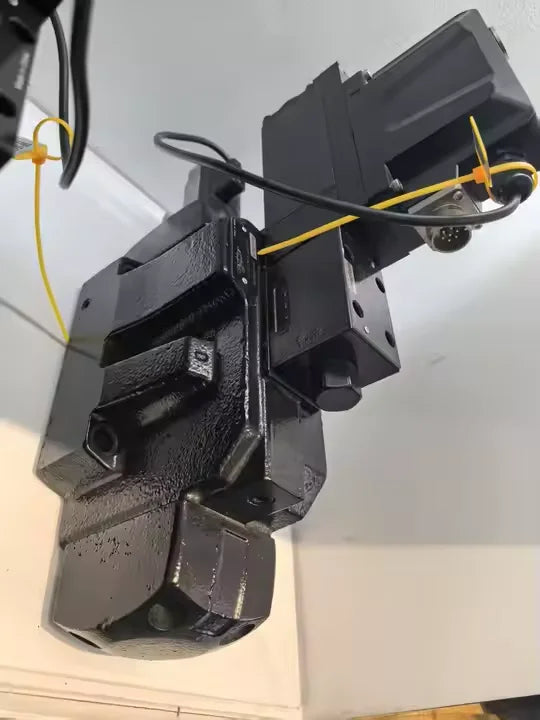

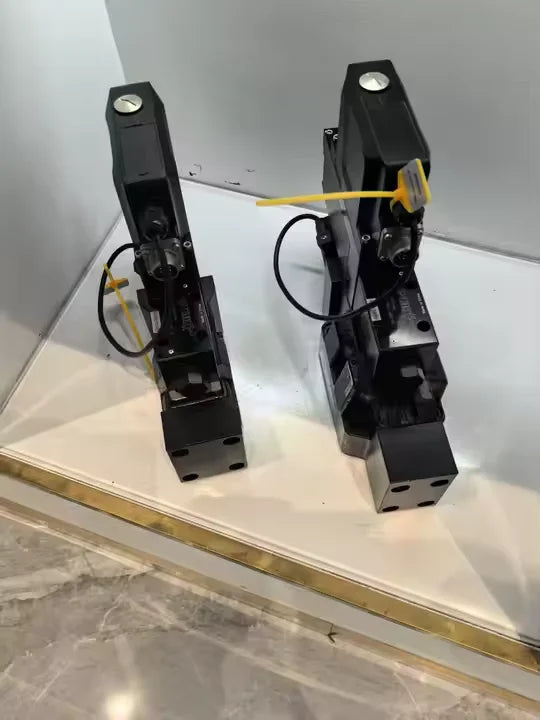

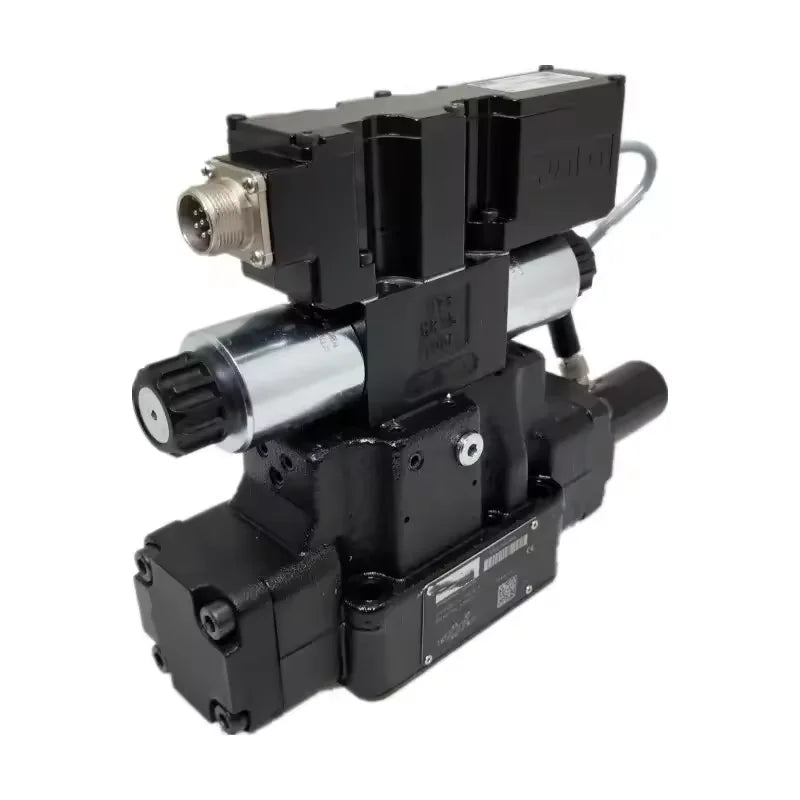

D1FPE50 D1FPE Series Proportional Directional Control Valve, Electro-Hydraulic Control
The D1FPE50 proportional directional control valve is part of the D1FPE series, designed for precise control of flow and direction in high-performance hydraulic systems.
- Directional Control Valve Valve Type
- Electro-Hydraulic Proportional Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The D1FPE50 proportional directional control valve is part of the D1FPE series, designed for precise control of flow and direction in high-performance hydraulic systems. This valve utilizes electro-hydraulic proportional control to deliver accurate and responsive system operation in demanding industrial environments.
Constructed from durable cast iron, it supports reliable performance under heavy-duty conditions. Its advanced control capability allows smooth adjustment of actuator speed and position, making it suitable for applications requiring fine motion control and system stability.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Proportional Directional Control Valve |
| Model | D1FPE50 |
| Series | D1FPE Series |
| Valve Type | Directional Control Valve |
| Structure | Spool Valve |
| Control Type | Electro-Hydraulic Proportional |
| Power Source | Electrical |
| Voltage | 24V DC (typical configuration) |
| Material | Cast Iron |
| Working Medium | Hydraulic Oil |
| Application Scope | Industrial Hydraulic Systems |
| Key Performance Data | Proportional control, smooth flow regulation |
| Weight | 60 kg |
| Condition | New |
| Warranty | 1 Year |
Key Features
- Electro-hydraulic proportional control for precise operation
- Heavy-duty cast iron construction for durability
- Smooth and responsive flow and direction control
- Suitable for high-performance hydraulic systems
- Reliable operation under continuous industrial use
- Supports advanced motion and pressure control applications
Typical Applications
- Industrial automation systems
- Heavy machinery and equipment
- Injection molding machines
- Hydraulic presses
- Manufacturing and processing lines
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 1-year warranty
