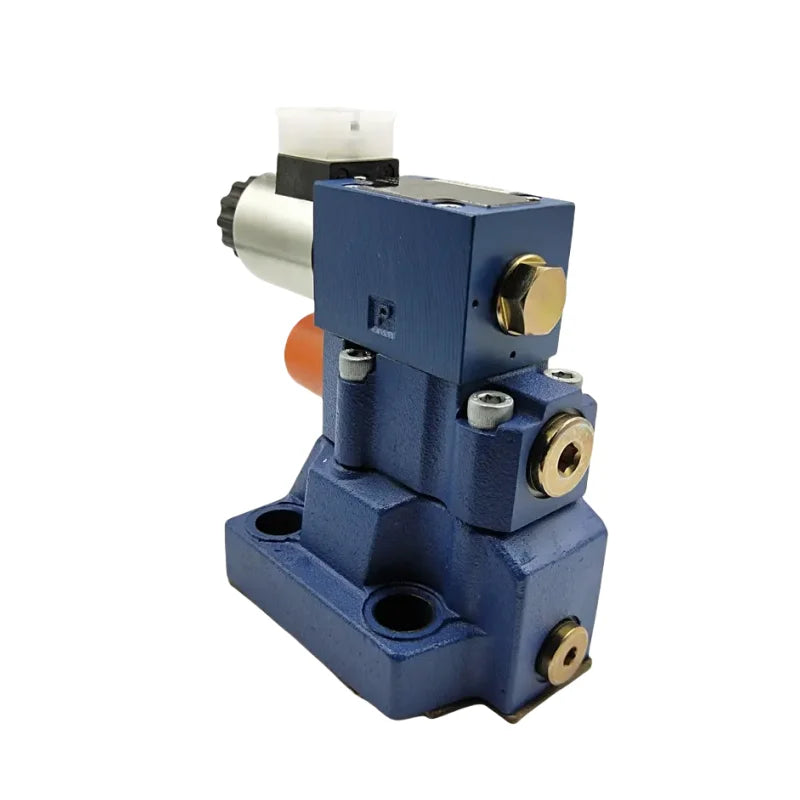

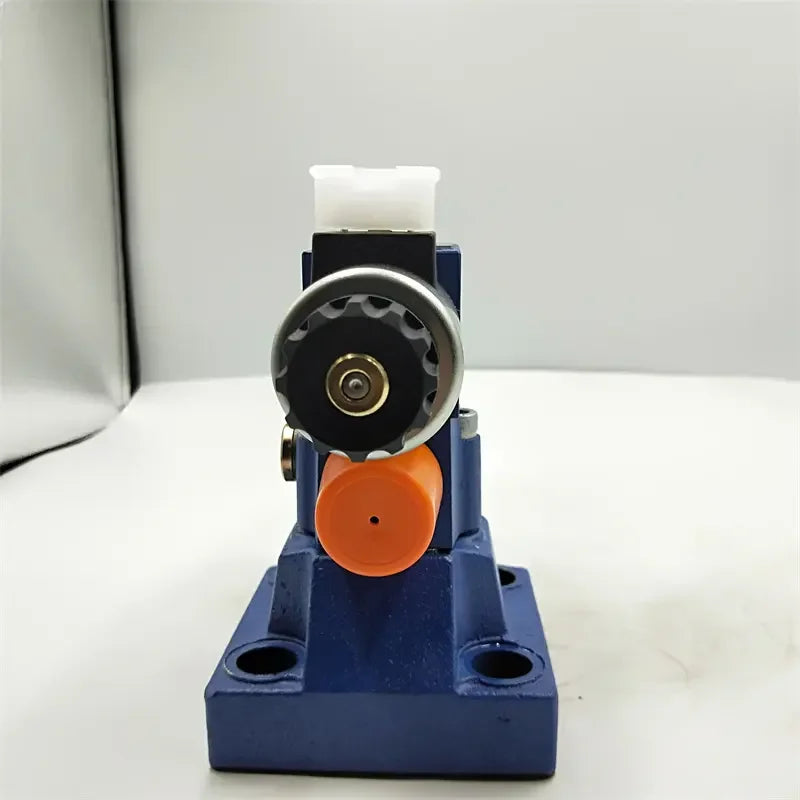

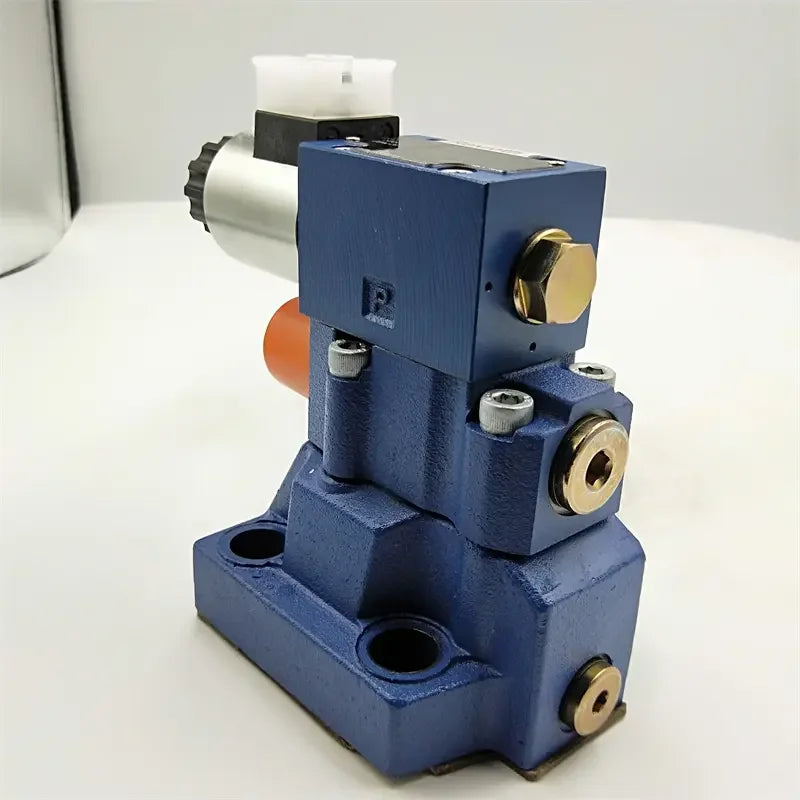

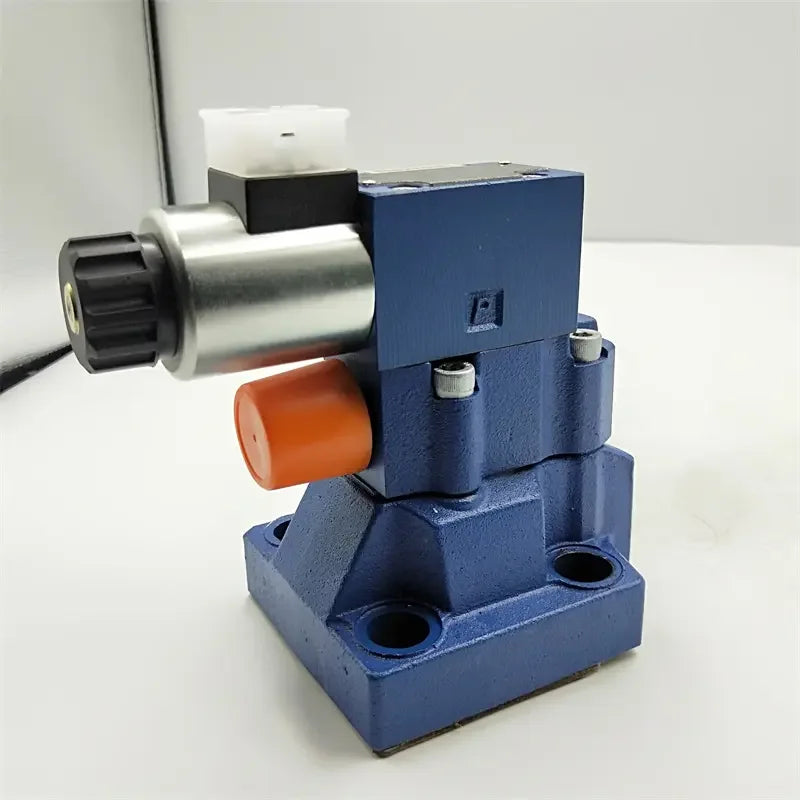

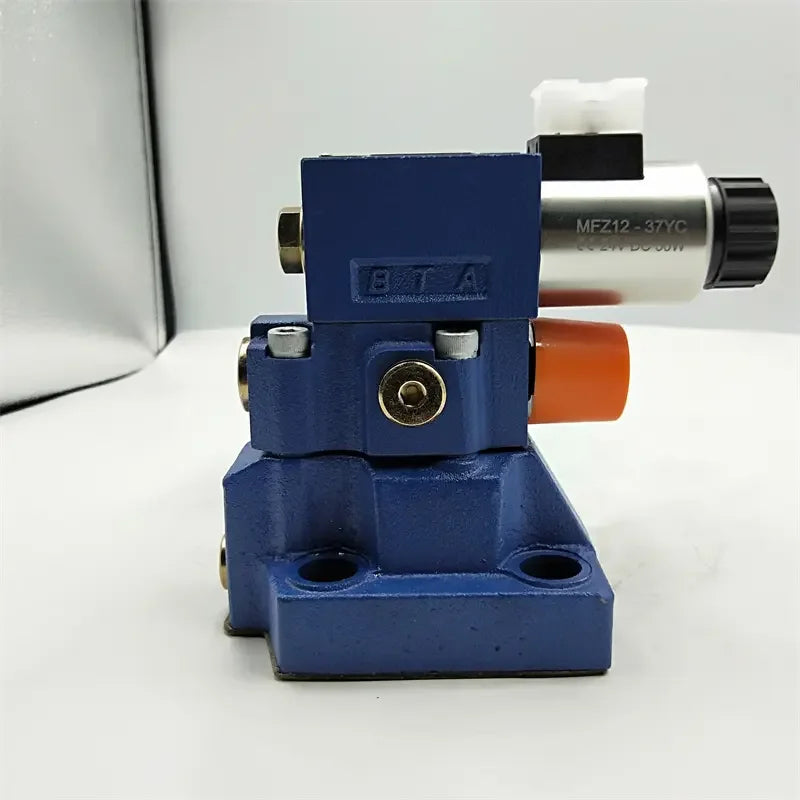

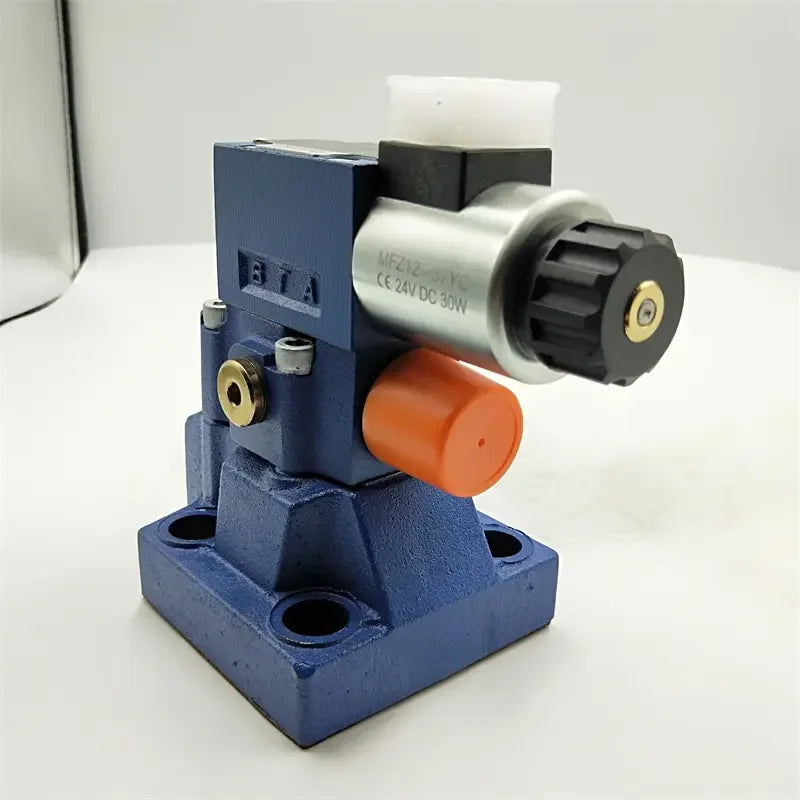

DBW20B2-52/315-6EG24N9K4 DBW20 Series Hydraulic Pilot Operated Relief Valve
The DBW20 series hydraulic pilot operated relief valve is designed to regulate and limit system pressure in hydraulic circuits, ensuring safe and stable operation.
- Pilot Operated Relief Valve Valve Type
- Pressure Control Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The DBW20 series hydraulic pilot operated relief valve is designed to regulate and limit system pressure in hydraulic circuits, ensuring safe and stable operation. It provides precise pressure control by combining pilot operation with solenoid actuation for reliable performance.
Supporting models such as DBW20A1, DBW20B1, DBW20A2, and DBW20B2, this valve is suitable for industrial applications requiring accurate pressure regulation. Its robust cast iron construction ensures durability in continuous-duty environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Hydraulic Pilot Operated Relief Valve |
| Model | DBW20B2-52/315-6EG24N9K4 |
| Alternative Models | DBW20B1-52/315-6EG24N9K4 / DBW20A1 / DBW20B1 / DBW20A2 |
| Series | DBW20 |
| Valve Type | Pilot Operated Relief Valve |
| Structure | Pilot Operated |
| Control Type | Pressure Control |
| Power Source | Hydraulic + Electric Control |
| Voltage | 24V DC |
| Body Material | Cast Iron |
| Working Medium | Hydraulic Oil |
| Application Scope | Pressure Regulation in Hydraulic Systems |
| Weight | 15 kg |
| Condition | New |
| Warranty | 1 Year |
Key Features
- Accurate pressure regulation for hydraulic systems
- Pilot operated design for stable and responsive control
- Solenoid-assisted operation for enhanced functionality
- Durable cast iron construction for industrial use
- Suitable for continuous-duty applications
- Supports multiple DBW20 series configurations
Typical Applications
- Hydraulic power units
- Industrial machinery
- Automation systems
- Manufacturing equipment
- Fluid power control systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 1-year warranty
