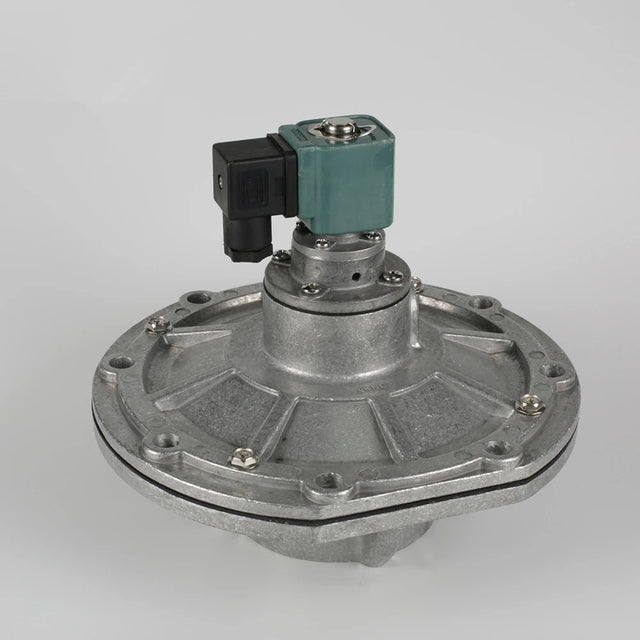

DMY-II-80 Pulse Jet Valve, 3" Submerged Type High Injection Volume
The DMY-II-80 pulse jet valve is designed for high-capacity dust collection systems requiring large air discharge volumes.
- 0.35 – 8.5 bar Working Pressure
- 24V DC / 110V AC / 220V AC Voltage
- 3" Port Size
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The DMY-II-80 pulse jet valve is designed for high-capacity dust collection systems requiring large air discharge volumes. Its submerged configuration allows direct installation inside air tanks, enabling efficient and uniform pulse distribution for effective filter cleaning.
Built for demanding industrial environments, this valve delivers consistent and reliable performance under continuous operation. Its robust construction supports high airflow requirements, making it suitable for large-scale filtration systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pulse Jet Valve |
| Model | DMY-II-80 |
| Structure | Submerged Type |
| Power Source | Electric (Solenoid) |
| Voltage | 24V DC / 110V AC / 220V AC |
| Port Size | 3" |
| Injection Volume | High |
| Working Pressure | 0.35 – 8.5 bar |
| Body Material | Aluminium Alloy |
| Diaphragm Material | NBR / TPE / VITON |
| Installation Type | Tank Mounted (Submerged) |
| Operating Temperature | -20°C to +85°C |
| Warranty | 1 Year |
Key Features
-
Submerged design for efficient tank integration
-
High injection volume for powerful pulse cleaning
-
Fast response for consistent operation
-
Durable diaphragm for extended service life
-
Suitable for large-scale industrial systems
Typical Applications
-
Large baghouse dust collectors
-
Industrial air filtration systems
-
Cement and steel plants
-
Power generation facilities
-
Mining and bulk material handling
