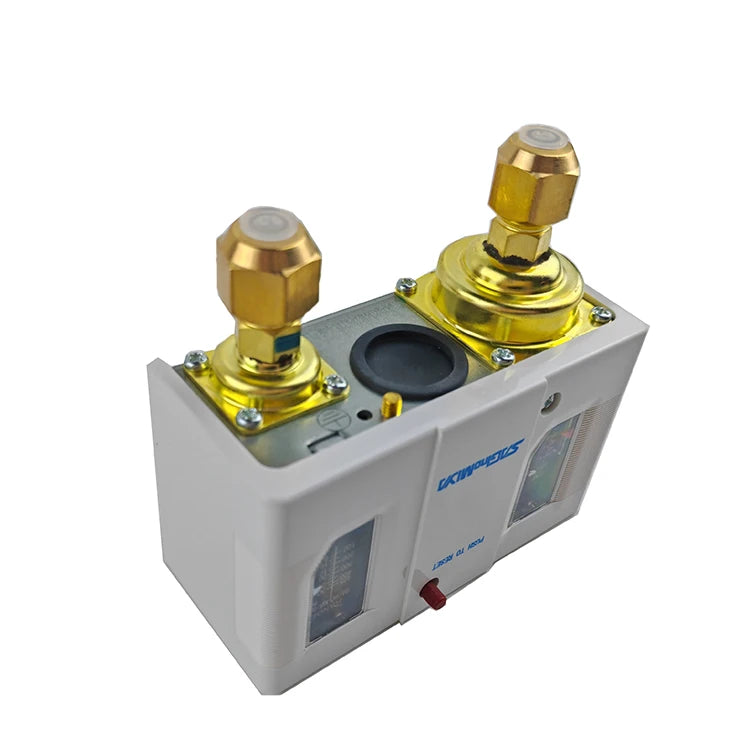

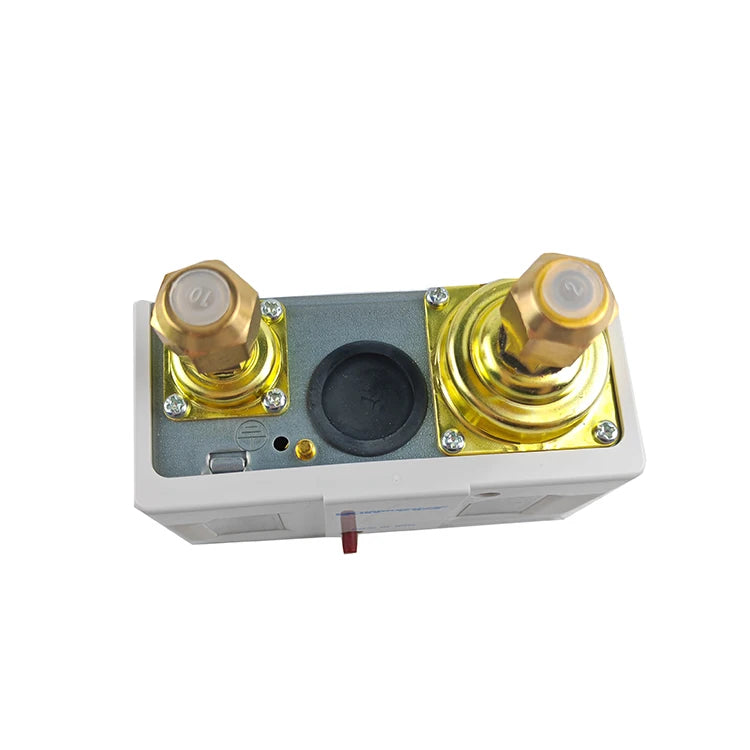

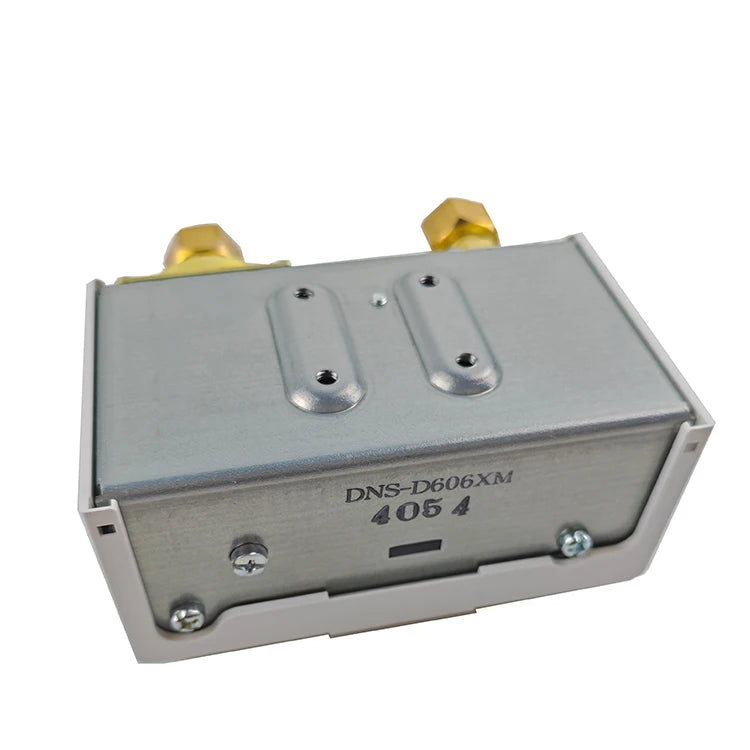

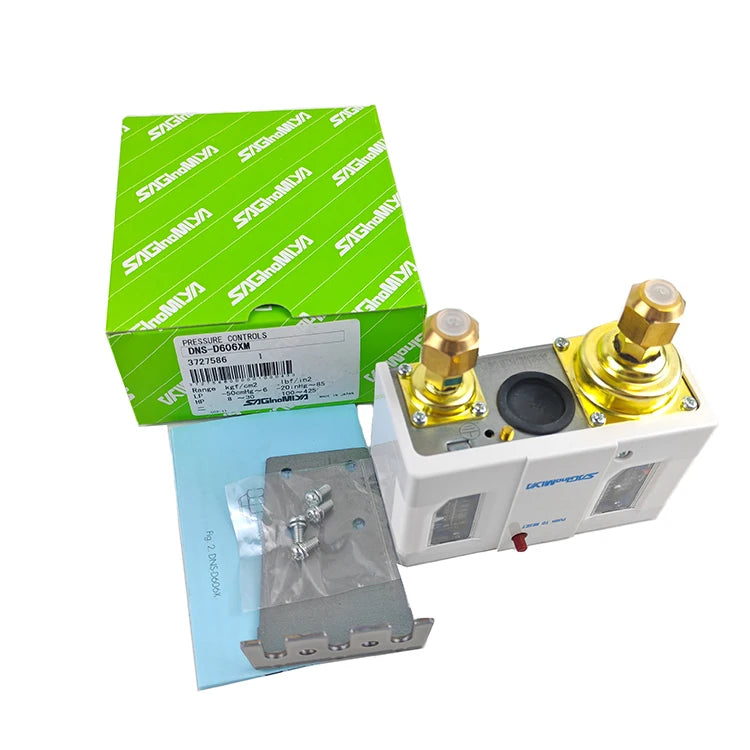

DNS-D0606XM Dual Pressure Controller
The Saginomiya DNS-D0606XM Dual Pressure Controller is an electro-mechanical refrigeration safety and cycling switch manufactured by Saginomiya Seisakusho, Inc.
- -0.6 to 6.0 bar (-20 cmHg to 85 psi) Low-Pressure Range
- Combination Low-Pressure and High-Pressure Control Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Saginomiya DNS-D0606XM Dual Pressure Controller is an electro-mechanical refrigeration safety and cycling switch manufactured by Saginomiya Seisakusho, Inc. Designed for commercial refrigeration units, industrial chillers, and HVAC heat pump circuits, this dual-function instrument combines low-pressure cycling and high-pressure limit safety cut-out in a single compact housing. It safeguards refrigeration compressors against vacuum cavitation, loss of lubrication, and excessive condensing head pressure.
Constructed with durable copper alloy bellows and precision snap-acting microswitches, the DNS-D0606XM features independent setpoint scales for low-side and high-side pressure thresholds. The low-pressure side provides an automatic reset mechanism with an adjustable differential, ideal for suction pressure cycling and defrost control. The high-pressure side features a manual reset mechanism with a fixed differential to ensure positive lockout and require manual operator verification before compressor restarting following an overpressure event. Compatible with standard fluorinated refrigerants (R22, R134a, R404A, R407C, R410A, and R507), this controller delivers reliable, vibration-resistant switching across condensing units, cold rooms, supermarket display cases, and industrial cooling skids.
Technical Specifications
| Specification | Value |
| Product Name | Dual Pressure Controller / Dual Pressure Switch |
| Manufacturer / Brand | |
| Model Number | DNS-D0606XM |
| Product Series | DNS Series Dual Pressure Controls |
| Control Type | Combination Low-Pressure and High-Pressure Control |
| Low-Pressure Range | -0.6 to 6.0 bar (-20 cmHg to 85 psi) |
| Low-Pressure Differential | 0.6 to 4.0 bar (8.5 to 58 psi) Adjustable |
| Low-Pressure Reset Type | Automatic Reset |
| High-Pressure Range | 8.0 to 30.0 bar (116 to 435 psi) |
| High-Pressure Differential | Approximately 4.0 bar (58 psi) Fixed |
| High-Pressure Reset Type | Manual Reset (Push-Button Reset Mechanism) |
| Maximum Allowable Pressure (Low Side) | 16.5 bar (240 psi) |
| Maximum Allowable Pressure (High Side) | 33.0 bar (480 psi) |
| Contact Mechanism | Single Pole Double Throw (SPDT) × 2 (Snap Action) |
| Contact Electrical Rating | 12A at 125/250 VAC Inductive / 24A Non-Inductive |
| Pressure Sensing Element | Phosphor Bronze / Stainless Steel Bellows |
| Pressure Connections | 1/4 Inch (7/16-20 UNF) Male Flare or Capillary |
| Enclosure Material | Heavy-Duty Galvanized Steel Base with Polycarbonate Cover |
| Ingress Protection Rating | IP20 / IP44 (with protective cover assembly) |
| Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Fluid Temperature Range | -20°C to +120°C (-4°F to +248°F) |
| Compatible Media | R22, R134a, R404A, R407C, R410A, R507, and Air/Water |
| Approximate Net Weight | 0.70 kg (1.54 lb) |
| Condition | New |
| Warranty | 1 Year |
Key Features
Combines low-pressure regulation and high-pressure limit safety cut-out in a single enclosure
Automatic reset on low-pressure side enables seamless compressor pump-down and suction cycling
Manual reset on high-pressure side requires physical intervention to restart after overpressure
High-durability metal bellows deliver rapid snap-action contact response and low drift

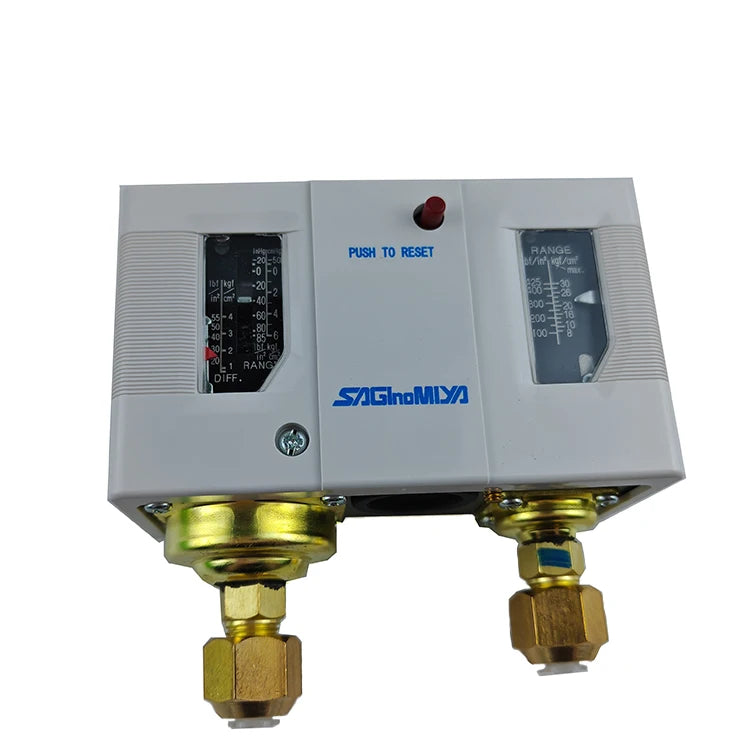

Dual independent pointer scales allow accurate visual setpoint verification and adjustment
High electrical contact rating handles direct compressor contactor switching without relays
Compatible with all common fluorinated CFC, HCFC, and HFC refrigerants
Vibration-resistant internal mechanics maintain calibrated settings on running condensing units
Compact mounting profile simplifies installation inside refrigeration condensing unit housings
Typical Applications
Suction pressure cycling and high-pressure safety cutoff for commercial refrigeration units
Chiller compressor protection in industrial process cooling and HVAC chiller skids
Walk-in cold rooms, freezers, and supermarket centralized refrigeration packs
Heat pump heating and cooling reverse-cycle overpressure and freeze protection
Ice making machines, commercial beverage dispensers, and refrigerated transport containers
Industrial air dryer compressor protection and condensing pressure regulation
Air conditioning plant safety monitoring and compressor motor circuit interlocks
