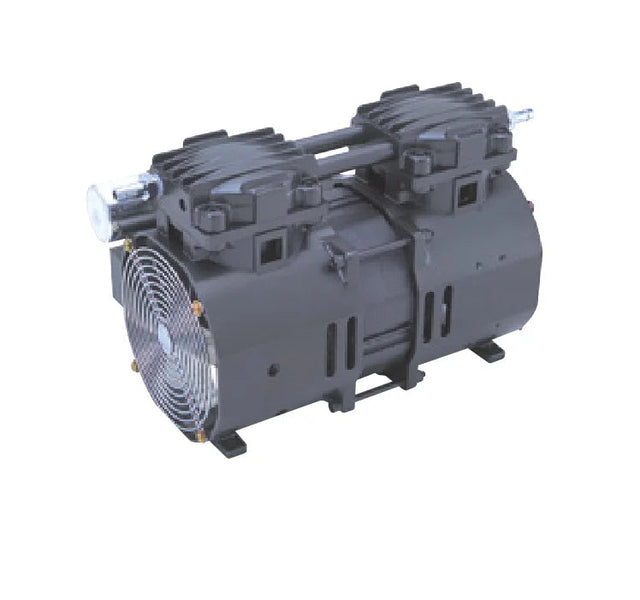

DOP-420SA ULVAC Piston Vacuum Pump, 220V 210W 44L/min Dry Pump
The DOP-420SA ULVAC piston vacuum pump is a compact, oil-free rocking piston pump designed for medical and precision air applications.
- 44 L/min Flow Rate
- 1.2 × 10³ Pa Ultimate Pressure
- 210 W Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The DOP-420SA ULVAC piston vacuum pump is a compact, oil-free rocking piston pump designed for medical and precision air applications. Manufactured in Japan, it delivers stable and clean vacuum performance without the need for lubrication, making it suitable for sensitive environments.
With a pumping speed of 44 L/min and a reliable single-phase motor, this pump is ideal for vacuum chuck systems, medical devices, and laboratory equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Piston Vacuum Pump |
| Model | DOP-420SA |
| Brand | ULVAC |
| Pump Type | Vacuum Pump |
| Structure | Rocking Piston (Dry) |
| Pressure | Vacuum Pressure |
| Ultimate Pressure | 1.2 × 10³ Pa |
| Flow Rate | 44 L/min |
| Speed Range | Standard motor speed |
| Motor Type | Single-Phase Capacitor Run |
| Power Source | Electric |
| Power Rating | 210 W |
| Voltage | 220 – 230V |
| Frequency | 50 / 60 Hz |
| Pump Body Material | Industrial Alloy |
| Sealing Type | Oil-Free |
| Certification | CE |
| Suitable Media | Air |
| Application Scope | Medical / Laboratory |
| Dimensions | Compact design |
| Warranty | 12 Months |
Key Features
- Oil-free rocking piston design
- Pumping speed of 44 L/min
- Clean and contamination-free operation
- Compact and reliable design
- Suitable for continuous-duty use
- High-quality ULVAC engineering
Typical Applications
- Medical appliances
- Laboratory equipment
- Vacuum chuck systems
- Air sampling systems
- Industrial automation
- Precision vacuum systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
