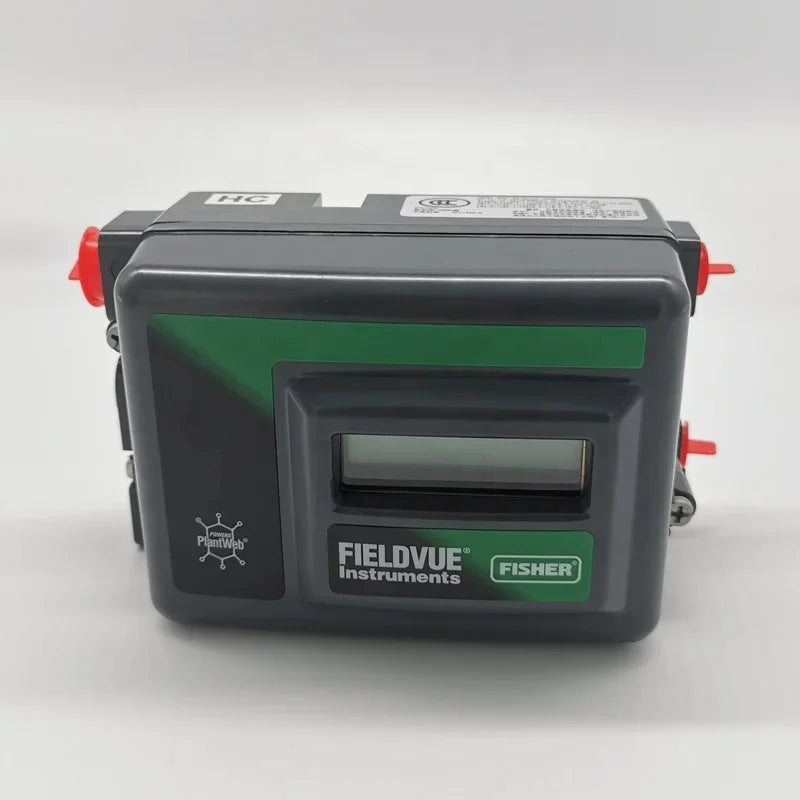

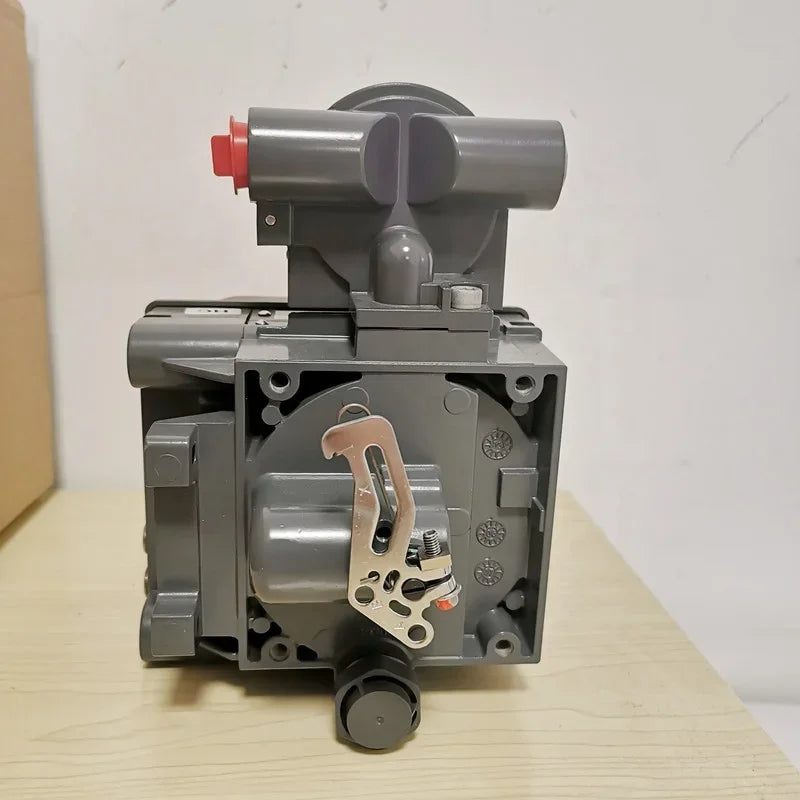

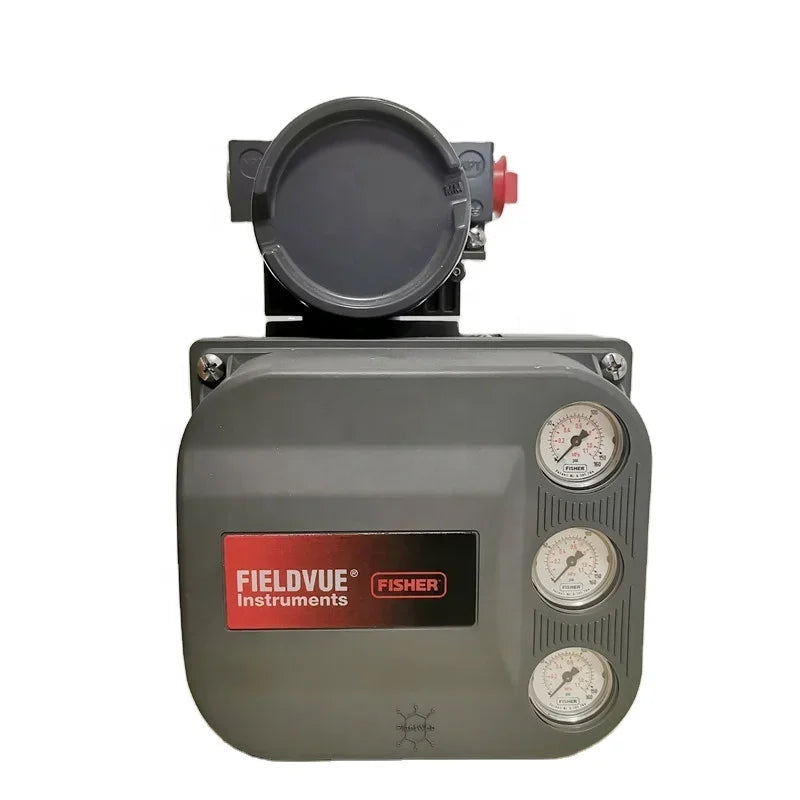

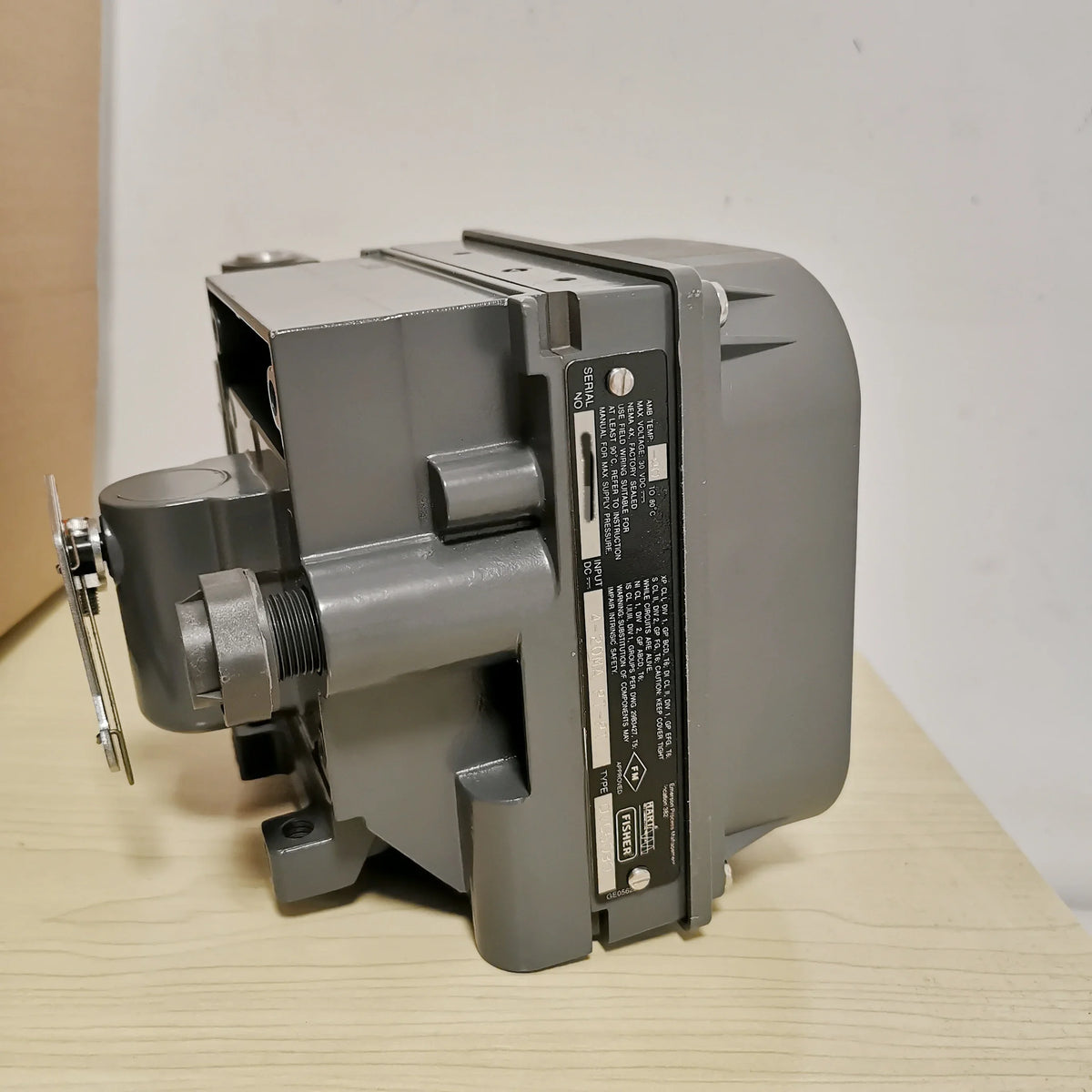

Fisher DVC6030 Double Acting Digital Valve Positioner with HART Communication
The Fisher FIELDVUE DVC6030 Double Acting Digital Valve Positioner is designed for precise positioning and automated control of quarter-turn pneumatic valve actuators in industrial process systems.
- Double Acting Actuator Configuration
- 10 Bar (145 psi), Subject to Actuator Rating Maximum Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Fisher FIELDVUE DVC6030 Double Acting Digital Valve Positioner is designed for precise positioning and automated control of quarter-turn pneumatic valve actuators in industrial process systems. Manufactured by Fisher, an Emerson brand, this intelligent valve controller uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and control valve movement. Its double-acting configuration supports pneumatic pressure delivery to both sides of compatible actuators, ensuring accurate valve positioning, responsive flow regulation, and stable industrial process performance.
Part of the Fisher FIELDVUE DVC6000 series, the DVC6030 features microprocessor-based control, electronic travel feedback, and digital diagnostic capabilities for reliable valve automation. Its compact, actuator-mounted design is specifically developed for quarter-turn rotary applications, including compatible ball, butterfly, and rotary control valve assemblies. With automatic calibration, HART communication, and configurable pneumatic relay operation, the DVC6030 is suitable for industrial applications requiring dependable valve control, process monitoring, and integration into distributed control systems.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Double Acting Digital Valve Positioner |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
DVC6030 |
|
Series |
FIELDVUE DVC6000 |
|
Product Type |
Digital Valve Controller |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Actuator Configuration |
Double Acting |
|
Actuator Compatibility |
Quarter-Turn Pneumatic Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Control Function |
Automatic Valve Position Regulation |
|
Pneumatic Output |
Double Acting Relay Configuration |
|
Maximum Supply Pressure |
10 Bar (145 psi), Subject to Actuator Rating |
|
Minimum Pneumatic Output Span |
0.4 Bar (6 psi) |
|
Maximum Pneumatic Output Span |
9.5 Bar (140 psi) |
|
Pneumatic Connection |
1/4 Inch NPT Female |
|
Working Medium |
Clean, Dry Instrument Air |
|
Position Feedback |
Electronic Travel Feedback |
|
Calibration |
Automatic Travel Calibration |
|
Diagnostic Functions |
Valve Travel Monitoring and Instrument Diagnostics |
|
Control Accuracy |
±0.5% Independent Linearity |
|
Mounting Type |
Direct Mounting to Compatible Quarter-Turn Actuators |
|
Application Scope |
Industrial Pneumatic Rotary Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Precise digital valve positioning for quarter-turn pneumatic control valve applications.
-
Double-acting pneumatic output configuration for controlling compatible rotary actuators.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART communication for digital configuration, monitoring, and diagnostic functions.
-
Microprocessor-based electropneumatic control for accurate and responsive valve movement.
-
Electronic travel feedback for continuous monitoring of valve position.
-
Automatic travel calibration for simplified installation and commissioning.
-
Maximum instrument supply pressure of 10 bar, subject to actuator pressure limits.
-
Two-wire, loop-powered operation without requiring a separate instrument power supply.
-
Supports digital diagnostics and valve performance monitoring through compatible communication tools.
-
Compact actuator-mounted construction designed for quarter-turn valve assemblies.
-
Suitable for reliable operation in industrial process automation and flow control applications.
Typical Applications
-
Industrial process automation systems
-
Quarter-turn pneumatic valve actuators
-
Ball valve automation systems
-
Butterfly valve control assemblies
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Water and wastewater treatment facilities
-
Power generation and utility systems
-
Industrial manufacturing equipment
-
Pneumatic rotary actuator positioning
-
Industrial flow and pressure regulation systems
-
Distributed control systems using HART communication
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
