DVP1.2pro TSVAC Diaphragm Vacuum Pump, 80W 1.2m³/h 2mbar Oil-Free Silent Pump
The DVP1.2pro TSVAC diaphragm vacuum pump is a compact, oil-free and low-noise vacuum pump designed for vacuum drying and laboratory applications.
- 1.2 m³/h Flow Rate
- 2 mbar Ultimate Pressure
- 80 W Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

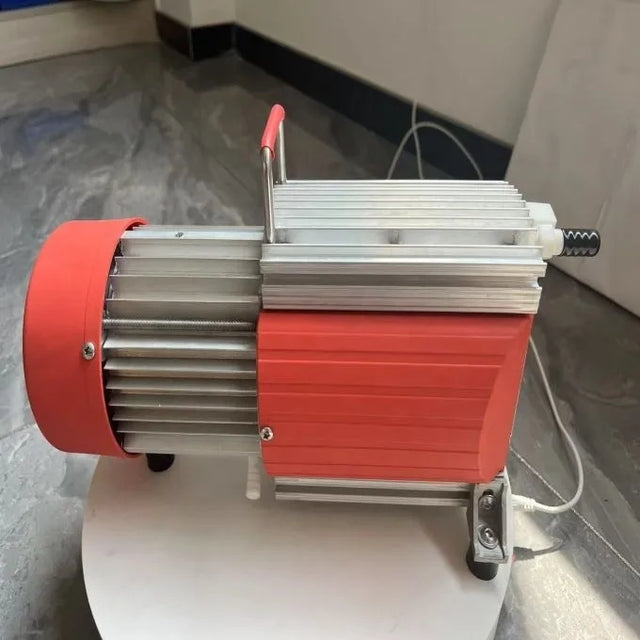

The DVP1.2pro TSVAC diaphragm vacuum pump is a compact, oil-free and low-noise vacuum pump designed for vacuum drying and laboratory applications. Built with PTFE and reinforced materials, it provides clean and chemically resistant operation for sensitive environments.
With a pumping speed of 1.2 m³/h and ultimate pressure of 2 mbar, this pump is ideal for small-scale vacuum systems requiring quiet and reliable performance.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Diaphragm Vacuum Pump |
| Model | DVP1.2pro |
| Brand | TSVAC |
| Pump Type | Vacuum Pump |
| Structure | Diaphragm |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Pressure | 2 mbar |
| Flow Rate | 1.2 m³/h |
| Speed | 1300 – 1800 RPM |
| Motor Type | Inverter Motor |
| Power Source | Electric |
| Power Rating | 80 W |
| Voltage | 220V |
| Pump Head | Single Head |
| Pump Body Material | Aluminum |
| Impeller Material | Glass Fiber Reinforced Plastic |
| Membrane Material | PTFE |
| Sealing Type | Diaphragm |
| Cooling Method | Air-Cooled |
| Inlet Plate | Carbon Fiber Reinforced PTFE |
| Connection Type | Direct Coupling |
| Outlet Size | 1/2 inch |
| Noise Level | Low Noise Design |
| Cable Length | 1.2 – 2 m |
| Applicable Temperature | 5 – 45°C |
| Safety Function | Motor Anomaly Detection |
| Filter Material | Polyester + Non-woven Fabric |
| Dimensions | 330 × 143 × 212 mm |
| Weight | 7 kg |
| Certification | CE / ISO9001 |
| Application Scope | Laboratory / Drying |
| Warranty | 12 Months |
Key Features
- Oil-free diaphragm vacuum design
- Ultra-quiet operation
- Vacuum level down to 2 mbar
- Chemical-resistant PTFE components
- Compact and lightweight design
- Built-in motor protection system
Typical Applications
- Vacuum drying systems
- Laboratory equipment
- Chemical processing
- Analytical instruments
- Medical devices
- Industrial testing
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
