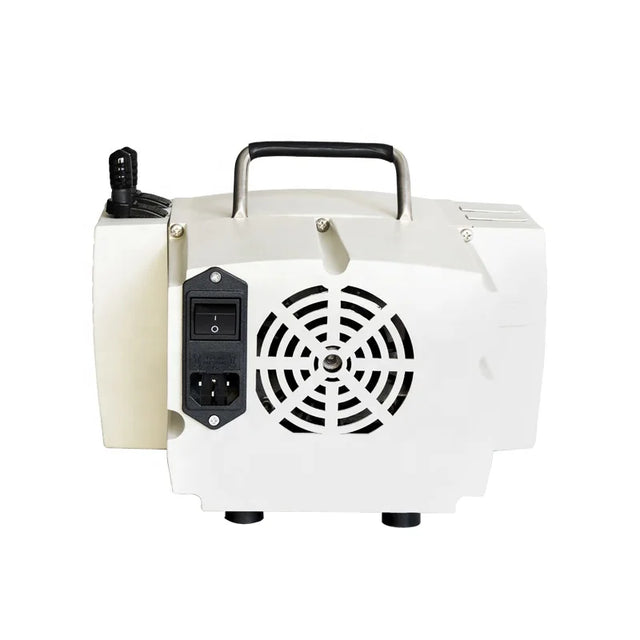

DVP2pro TSVAC Diaphragm Vacuum Pump, 180W 2m³/h ≤8mbar Oil-Free Pump
The DVP2pro TSVAC diaphragm vacuum pump is a compact, oil-free vacuum solution designed for clean and reliable operation in laboratory and light industrial applications.
- 2 m³/h Flow Rate
- ≤8 mbar Ultimate Pressure
- 180 W Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The DVP2pro TSVAC diaphragm vacuum pump is a compact, oil-free vacuum solution designed for clean and reliable operation in laboratory and light industrial applications. Built with PTFE and carbon fiber reinforced components, it ensures chemical resistance and durability.
With a pumping speed of 2 m³/h and ultimate pressure ≤8 mbar, this pump is ideal for precision vacuum systems requiring contamination-free performance.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Diaphragm Vacuum Pump |
| Model | DVP2pro |
| Brand | TSVAC |
| Pump Type | Vacuum Pump |
| Structure | Diaphragm |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Pressure | ≤8 mbar |
| Flow Rate | 2 m³/h |
| Speed | 1400 RPM |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 180 W |
| Voltage | 220V |
| Pump Head | Single Head |
| Pump Body Material | Engineering Polymer |
| Inlet/Outlet Material | PTFE |
| Inlet Plate Material | Carbon Fiber Reinforced PTFE |
| Safety Function | Motor Anomaly Detection |
| Dimensions | 242 × 280 × 150 mm |
| Weight | 10 kg |
| Application Scope | Laboratory / Industrial |
| Warranty | 12 Months |
Key Features
- Oil-free diaphragm vacuum design
- Chemical-resistant PTFE components
- Compact and lightweight structure
- Low noise and stable operation
- Built-in motor protection system
- Maintenance-free performance
Typical Applications
- Laboratory vacuum systems
- Chemical processing
- Analytical equipment
- Medical devices
- Industrial testing
- Clean vacuum applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
