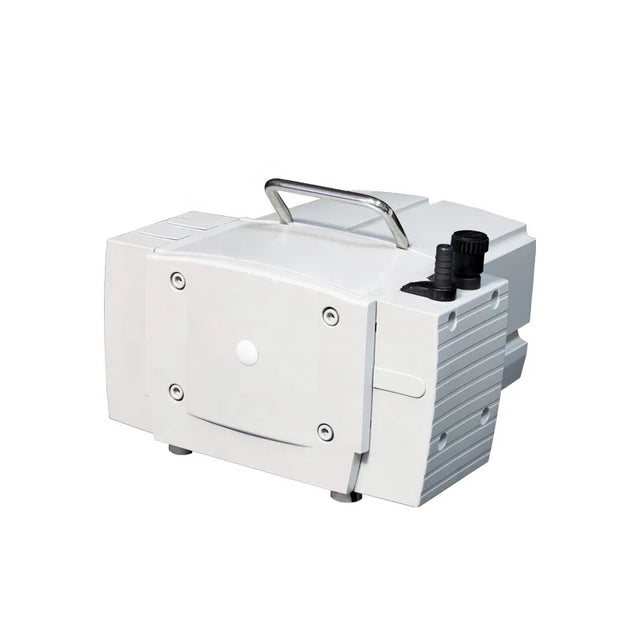

DVP2pro TSVAC Diaphragm Vacuum Pump, 180W 2m³/h ≤8mbar PTFE Lab Pump
The DVP2pro TSVAC diaphragm vacuum pump is a laboratory-grade, oil-free vacuum pump designed for clean and stable vacuum generation.
- 2 m³/h Flow Rate
- ≤8 mbar Ultimate Pressure
- 180 W Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The DVP2pro TSVAC diaphragm vacuum pump is a laboratory-grade, oil-free vacuum pump designed for clean and stable vacuum generation. Built with PTFE wetted components and frequency-controlled operation, it ensures chemical resistance and precise performance in analytical and industrial environments.
With a pumping speed of 2 m³/h and ultimate pressure ≤8 mbar, this pump is ideal for laboratory systems, vacuum filtration, and contamination-sensitive processes.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Diaphragm Vacuum Pump |
| Model | DVP2pro |
| Brand | TSVAC |
| Pump Type | Vacuum Pump |
| Structure | Diaphragm |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Pressure | ≤8 mbar |
| Flow Rate | 2 m³/h |
| Speed | 1400 RPM |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 180 W |
| Voltage | 220V |
| Pump Head | Single Head |
| Pump Body Material | Engineering Polymer |
| Inlet/Outlet Material | PTFE |
| Inlet Plate | Carbon Fiber Reinforced PTFE |
| Frequency Control | Yes |
| Safety Function | Motor Anomaly Detection |
| Dimensions | 242 × 280 × 150 mm |
| Weight | 10 kg |
| Suitable Media | Air / Gas |
| Application Scope | Laboratory / Industrial |
| Warranty | 12 Months |
Key Features
- Oil-free diaphragm vacuum design
- PTFE wetted parts for chemical resistance
- Stable 2 m³/h vacuum performance
- Frequency-controlled motor operation
- Compact and low-noise structure
- Maintenance-free operation
Typical Applications
- Laboratory vacuum systems
- Vacuum filtration
- Chemical analysis
- Pharmaceutical processing
- Research and development
- Industrial testing
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
