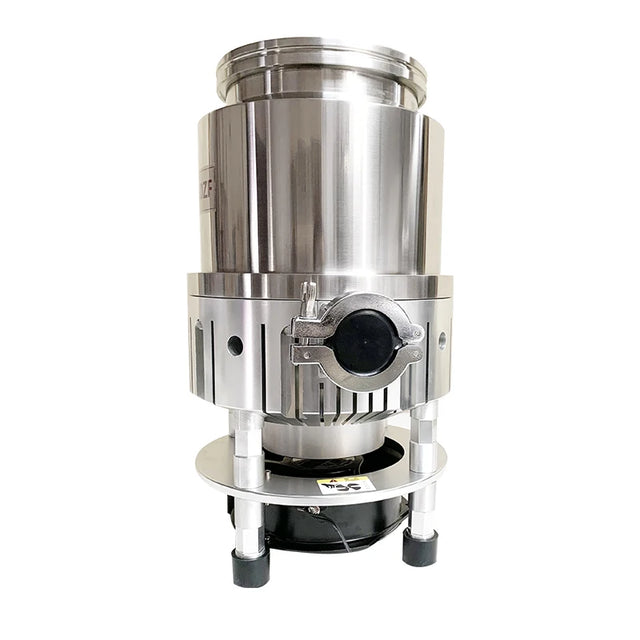

EV600F Super Q Turbo Molecular Pump, 600 L/s Air-Cooled Vacuum Pump KF40 220V
The EV600F Super Q turbo molecular pump is a compact and efficient vacuum solution designed for industrial and automotive applications.
- 250 W Power
- 600 L/s Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The EV600F Super Q turbo molecular pump is a compact and efficient vacuum solution designed for industrial and automotive applications. With a pumping speed of 600 L/s, it delivers stable vacuum performance while maintaining energy efficiency through its low power consumption design.
Equipped with air or optional water cooling, this pump ensures reliable thermal management and long operational life. Its vertical mounting configuration and standard flange compatibility make it easy to integrate into existing vacuum systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Turbo Molecular Vacuum Pump |
| Model | EV600F |
| Brand | Super Q |
| Pump Type | Turbo Molecular Pump |
| Structure | Turbo |
| Pressure | Low Pressure |
| Pumping Speed | 600 L/s |
| Power Source | Electric |
| Power | 250 W |
| Voltage | 220V |
| Cooling Method | Air Cooling / Water Cooling |
| Mounting Position | Vertical |
| Inlet Flange | 150CF / 160ISO-K |
| Outlet Size | KF40 |
| Cable Length | 3 m |
| Motor | Equipped |
| Application Scope | Industrial |
| Customization | OEM, ODM, OBM Available |
| Warranty | 1 Year |
Key Features
- Pumping speed of 600 L/s for efficient vacuum performance
- Dual cooling options: air or water cooling
- Low power consumption at 250W
- Compact and easy-to-install vertical design
- Compatible with standard vacuum flanges
- Reliable operation for industrial applications
Typical Applications
- Automotive manufacturing systems
- Industrial vacuum processes
- Vacuum coating and processing
- Laboratory vacuum systems
- General-purpose vacuum applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
