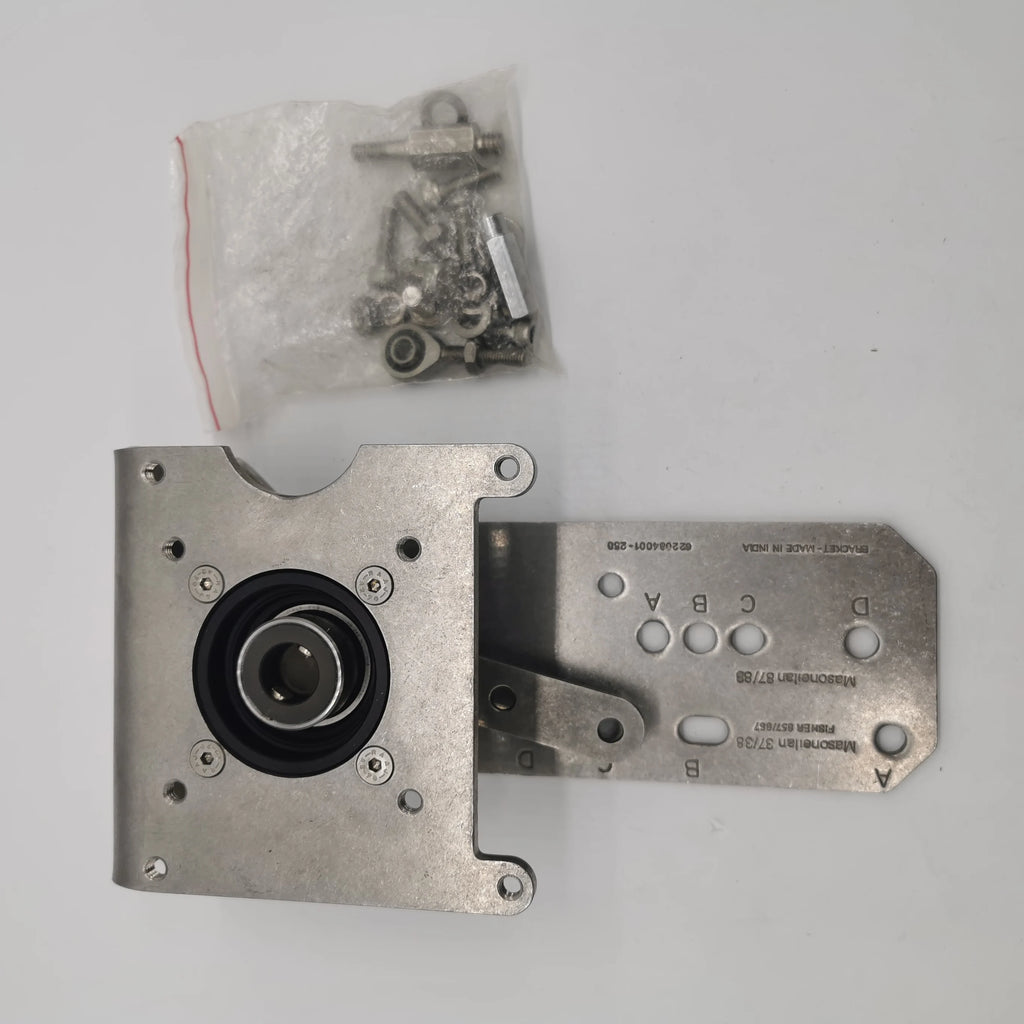

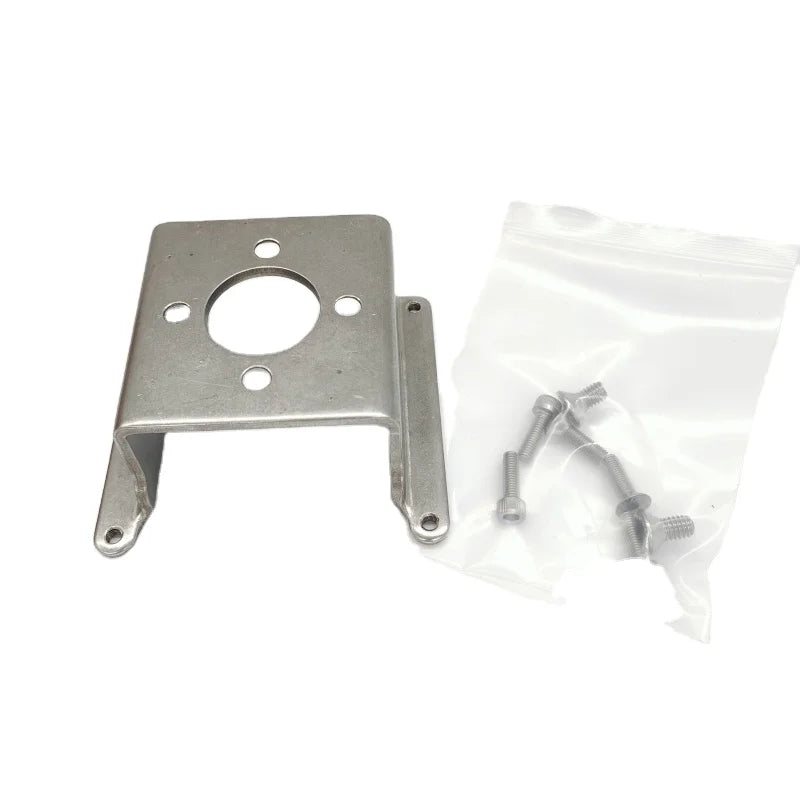

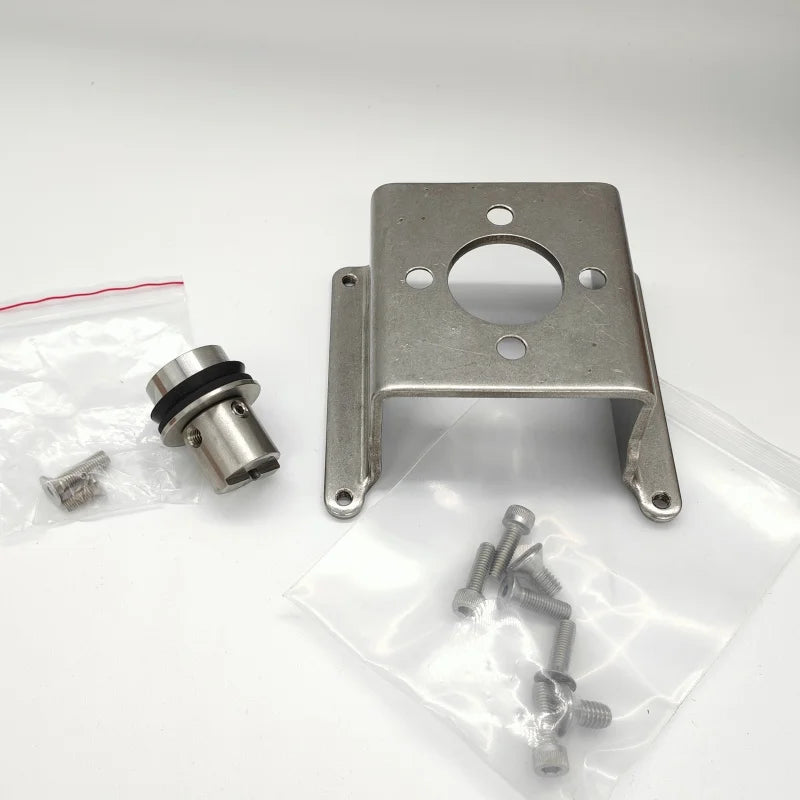

Masoneilan 400160866-999-0000 SVI Digital Valve Positioner Rotary Mounting Kit
The Masoneilan 400160866-999-0000 Rotary Mounting Kit is designed to support the secure installation of compatible Masoneilan SVI digital valve positioners on rotary pneumatic valve actuators.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan 400160866-999-0000 Rotary Mounting Kit is designed to support the secure installation of compatible Masoneilan SVI digital valve positioners on rotary pneumatic valve actuators. Manufactured by Baker Hughes under the Masoneilan brand, this mounting kit provides the mechanical interface required to attach the positioner to the valve actuator and establish the correct relationship between actuator shaft movement and valve position sensing. Its application-specific design supports reliable positioning, accurate valve travel measurement, and consistent performance in industrial process control systems.
The 400160866-999-0000 mounting kit is identified by Baker Hughes for Masoneilan Camflex, Varimax, and V-Max rotary actuators. It is part of the manufacturer's mounting accessory range for SVI digital valve positioners, including the SVI II AP family. By supporting correct alignment and secure positioning of the instrument, the kit helps simplify installation, maintenance, and replacement of valve positioning equipment. It is suitable for applications in oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve automation systems.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
SVI Digital Valve Positioner Rotary Mounting Kit |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Main Part Number |
400160866-999-0000 |
|
Product Type |
Valve Positioner Mounting Kit |
|
Component Category |
Valve Positioner Accessories |
|
Mounting Application |
Rotary Pneumatic Valve Actuators |
|
Primary Function |
Mechanical Attachment of Digital Valve Positioners |
|
Compatible Positioner Family |
Masoneilan SVI Digital Positioners |
|
Compatible Positioner Model |
SVI II AP, Subject to Installation Configuration |
|
Other Supported Positioner Families |
SVI3, SVi1000, SVI FF and SVI II ESD, According to Manufacturer Mounting Guidance |
|
Compatible Actuator Family |
Masoneilan Camflex |
|
Additional Compatible Actuator |
Masoneilan Varimax |
|
Additional Compatible Actuator |
Masoneilan V-Max |
|
Mounting Orientation |
According to Applicable Installation Drawing |
|
Mounting Arrangement |
Actuator-Specific Mechanical Assembly |
|
Installation Location |
Between Positioner and Compatible Rotary Actuator |
|
Valve Movement |
Rotary |
|
Position Feedback Application |
Mechanical Coupling for Position Detection |
|
Construction |
Mechanical Mounting Hardware Assembly |
|
Installation Requirements |
Compatible Actuator and Positioner Mounting Arrangement |
|
Mounting Instructions |
Manufacturer Installation Drawing |
|
Related Part Number |
720009285-999-0000 |
|
Additional Related Part Number |
055200191-999-0000 |
|
Application Scope |
Industrial Valve Positioner Installation and Replacement |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Purpose-designed mounting kit for Masoneilan SVI digital valve positioners
Manufacturer part number 400160866-999-0000 for accurate replacement identification
Compatible with specified Masoneilan Camflex rotary actuator applications
Supports installation on applicable Masoneilan Varimax actuators
Suitable for compatible Masoneilan V-Max rotary actuator assemblies
Provides a mechanical mounting interface between the positioner and actuator
Supports correct instrument alignment for reliable valve position sensing
Designed for use with compatible SVI II AP digital valve positioners
Supports other SVI digital positioner models according to manufacturer guidance
Actuator-specific mounting arrangement for industrial valve automation
Facilitates installation and replacement of valve positioning instruments
Suitable for maintenance and refurbishment of rotary control valve assemblies
Designed to support stable mounting during normal industrial valve operation
Manufacturer-documented mounting arrangement for compatible Masoneilan equipment
Suitable for industrial process control and valve instrumentation applications
Typical Applications
Masoneilan SVI II AP digital positioner installation
Masoneilan Camflex rotary control valve assemblies
Masoneilan Varimax actuator installations
Masoneilan V-Max rotary valve applications
Industrial rotary pneumatic actuator mounting
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and process automation
Control valve instrumentation upgrades
Rotary valve positioner maintenance and replacement
Industrial valve refurbishment and servicing
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
