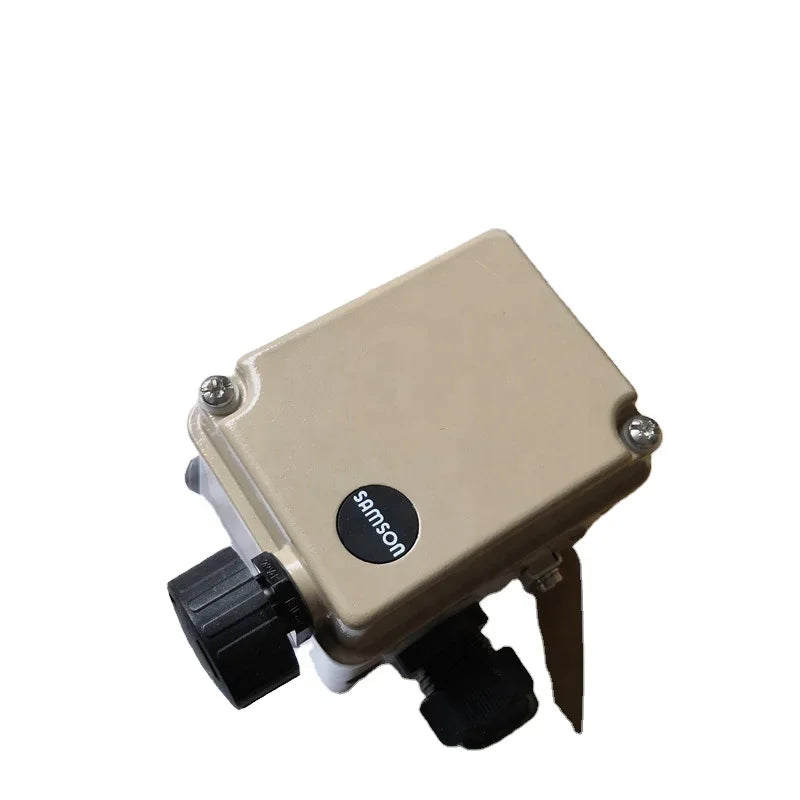

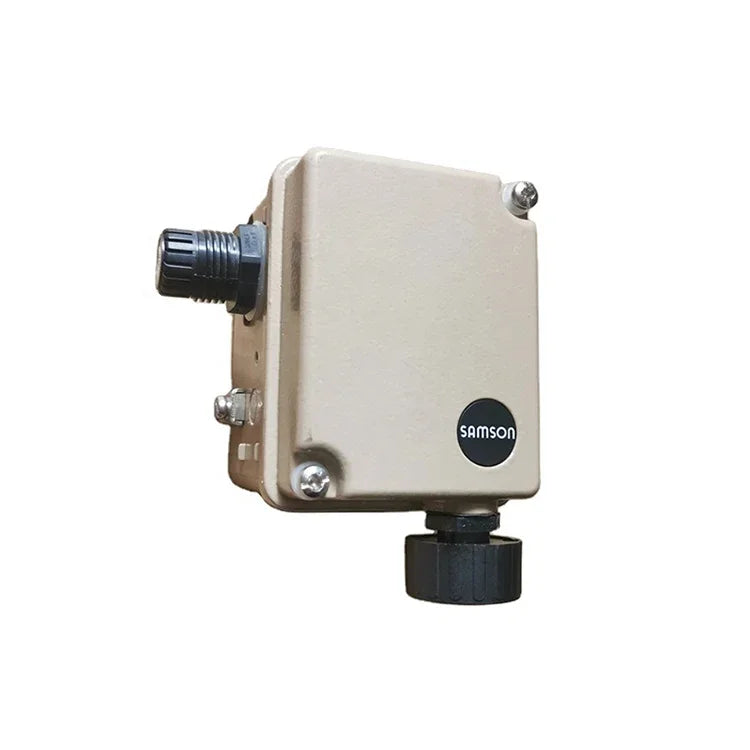

SAMSON 4746-12102100 Intrinsically Safe Inductive Valve Position Limit Switch
The SAMSON 4746-12102100 Inductive Valve Position Limit Switch is designed for reliable monitoring and indication of valve travel positions in industrial process control systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The SAMSON 4746-12102100 Inductive Valve Position Limit Switch is designed for reliable monitoring and indication of valve travel positions in industrial process control systems. Manufactured by SAMSON, this instrument uses non-contact inductive proximity sensing to detect predetermined positions of a valve actuator. Its adjustable switching mechanism provides electrical signals when the valve reaches or passes a configured travel limit, supporting reliable valve position monitoring, alarm activation, and automated process control.
Part of the SAMSON Type 4746 Series, the 4746-12102100 belongs to the intrinsically safe inductive limit switch family designed for appropriately certified hazardous-area applications. Its aluminium housing, mechanical lever arrangement, and adjustable proximity switching elements support installation on compatible linear control valve actuators and SAMSON Type 4763 and 4765 positioners. The switch is suitable for valve travel monitoring in oil and gas processing, chemical plants, power generation, water treatment, and industrial manufacturing. The related 4746-032021 belongs to the electric limit switch configuration and should be maintained as a separate model.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Inductive Valve Position Limit Switch |
|
Manufacturer / Brand |
SAMSON |
|
Main Model |
4746-12102100 |
|
Series |
Type 4746 |
|
Product Type |
Inductive Limit Switch |
|
Component Category |
Valve Position Monitoring Accessories |
|
Switching Technology |
Non-Contact Inductive Proximity Sensing |
|
Switching Configuration |
Adjustable Inductive Limit Contacts |
|
Explosion Protection Family |
Intrinsically Safe, Type 4746-12 |
|
Hazardous-Area Protection |
Ex ia, Subject to Certification |
|
Operating Principle |
Inductive Detection of Metal Switching Tags |
|
Actuator Compatibility |
Linear Control Valve Actuators |
|
Mounting Standard |
IEC 60534-6 |
|
Positioner Compatibility |
SAMSON Type 4763 and Type 4765 |
|
Standard Housing Material |
Aluminium |
|
Valve Travel Range, Lever I |
7.5–60 mm |
|
Valve Travel Range, Lever II |
60–180 mm |
|
Electrical Interface |
Intrinsically Safe Switching Circuit |
|
Switching Amplifier Standard |
EN 60947-5-6 |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Electrical Terminal Capacity |
0.2–2.5 mm² |
|
Enclosure Protection |
IP65 |
|
Standard Approximate Weight |
0.7 kg |
|
Switching Adjustment |
Adjustable Travel Limit |
|
Switching Hysteresis |
Dependent on Effective Lever Length |
|
Operating Medium |
Electrical Proximity Sensing |
|
Related Model |
4746-032021 |
|
Application Scope |
Industrial Valve Position Indication and Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intrinsically safe inductive limit switch for compatible industrial valve position monitoring.
-
Non-contact proximity sensing for detecting predetermined valve travel positions.
-
Designed for SAMSON Type 4746 inductive switching applications.
-
Adjustable switching points for monitoring selected actuator travel limits.
-
Compatible with linear control valve actuators using appropriate mounting arrangements.
-
Supports attachment to SAMSON Type 4763 electropneumatic positioners.
-
Compatible with SAMSON Type 4765 pneumatic positioners.
-
Durable aluminium housing for industrial operating environments.
-
IP65 enclosure protection against dust and water ingress.
-
M20 × 1.5 electrical cable entry for compatible field wiring.
-
Suitable for alarm, indication, and automated switching circuits.
-
Independent switching element adjustment within supported configurations.
-
High switching accuracy for reliable position indication.
-
Suitable for properly certified hazardous-area installations.
-
Supports industrial maintenance, equipment servicing, and replacement applications.
Typical Applications
-
Industrial control valve position indication
-
Pneumatic valve actuator travel monitoring
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Linear globe valve position monitoring
-
Hazardous-area valve instrumentation
-
Process control alarm systems
-
PLC and distributed control system feedback
-
Industrial valve maintenance and replacement
