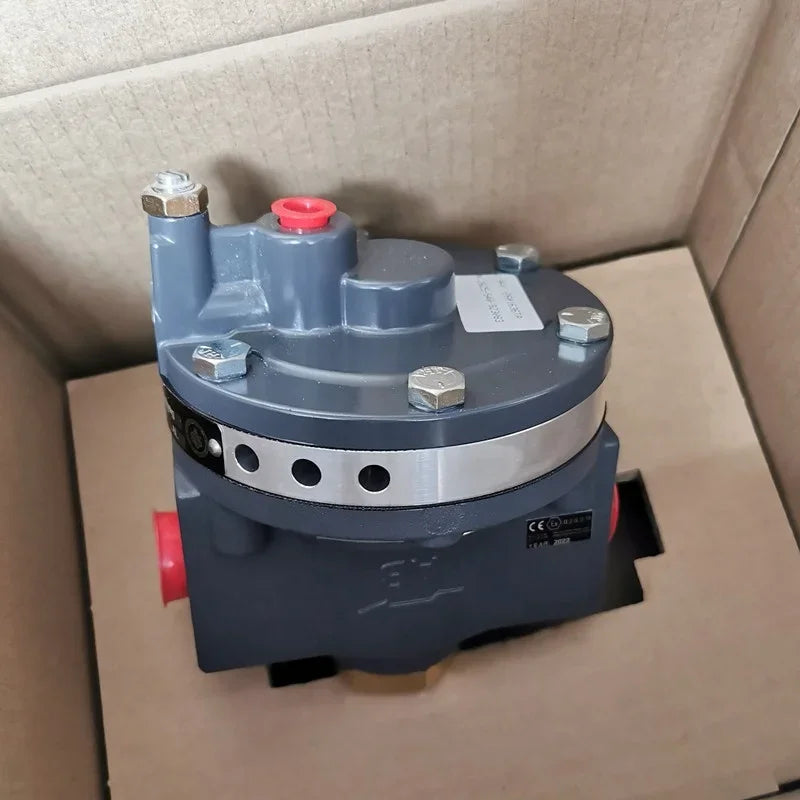

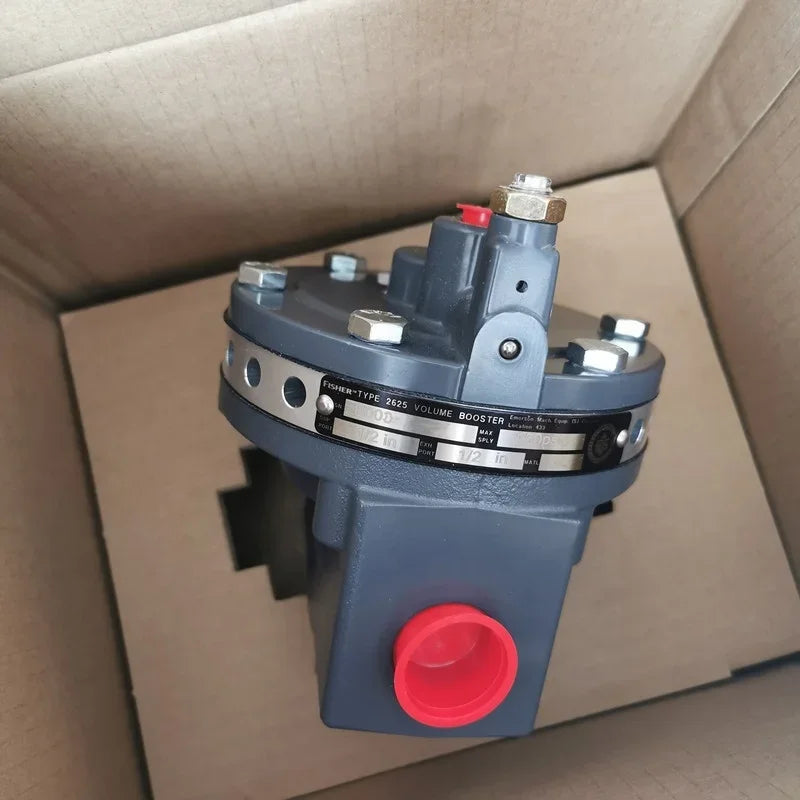

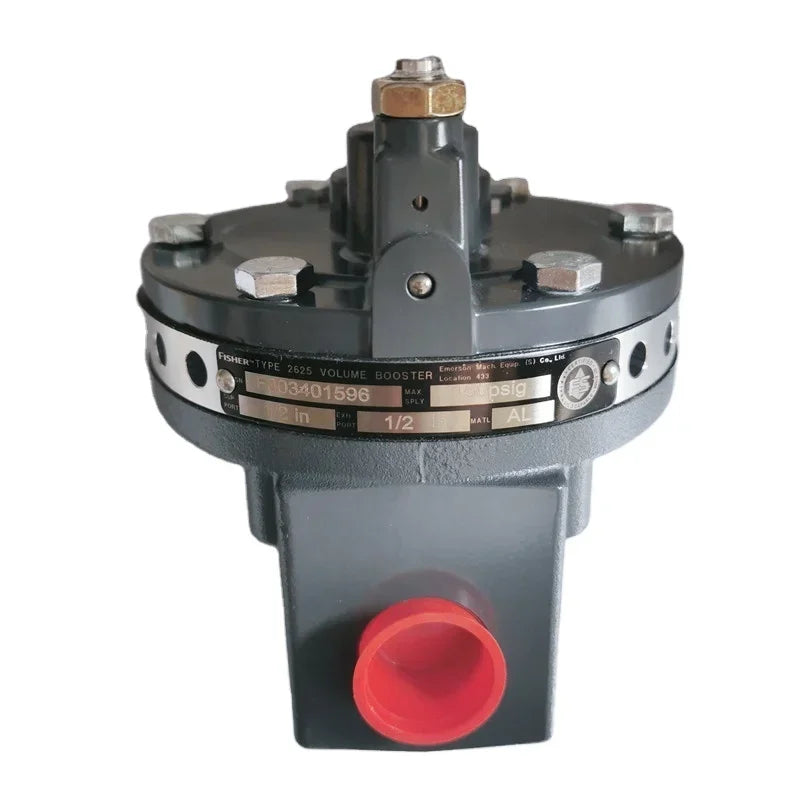

Fisher 2625-12 Pneumatic Volume Booster 150 PSI
The Fisher 2625-12 Pneumatic Volume Booster is designed to increase the stroking speed of pneumatic valve actuators in industrial process control systems.
- 1:1 Input-to-Output Pressure Ratio
- Cv 4.98 Maximum Supply Flow Coefficient
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Fisher 2625-12 Pneumatic Volume Booster is designed to increase the stroking speed of pneumatic valve actuators in industrial process control systems. Manufactured by Fisher, an Emerson brand, this high-capacity air volume booster responds to pneumatic signals from a valve positioner and delivers increased airflow to the actuator. Its fixed 1:1 input-to-output pressure ratio supports rapid valve movement without changing the commanded pneumatic pressure.
Part of the Fisher 2625 Series, the 2625-12 features an adjustable bypass restriction, soft-seat construction, and high-flow supply and exhaust ports. The 2625-12 configuration is associated with a maximum supply pressure of 150 psig and 1/2-inch internal supply and exhaust ports. It is suitable for pneumatic piston actuators, throttling control valves, oil and gas processing, chemical manufacturing, power generation, and industrial automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Volume Booster |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Main Model |
2625-12 |
|
Product Series |
Fisher 2625 |
|
Product Type |
Pneumatic Air Volume Booster |
|
Operating Principle |
Pneumatic Pressure Amplification |
|
Input Signal |
Valve Positioner Pneumatic Output |
|
Input-to-Output Pressure Ratio |
1:1 |
|
Maximum Input Signal Pressure |
150 psig (10.3 bar) |
|
Maximum Supply Pressure |
150 psig (10.3 bar), 2625-12 Configuration |
|
Maximum Outlet Pressure |
Up to Rated Supply Pressure |
|
Supply Connection |
3/4 Inch NPT |
|
Output Connection |
3/4 Inch NPT |
|
Input Signal Connection |
1/4 Inch NPT |
|
Internal Supply Port Diameter |
1/2 Inch (12.7 mm) |
|
Internal Exhaust Port Diameter |
1/2 Inch (12.7 mm) |
|
Maximum Supply Flow Coefficient |
Cv 4.98 |
|
Maximum Exhaust Flow Coefficient |
Cv 3.40 |
|
Nominal Deadband |
5% of Positioner Output Span |
|
Body Material |
Aluminium |
|
Standard Diaphragm Material |
Nitrile/Nylon |
|
Integral Bypass Restriction |
Adjustable |
|
Standard Operating Temperature |
−40°C to +71°C |
|
Approximate Weight |
2.3 kg |
|
Pneumatic Medium |
Clean, Dry Instrument Air |
|
Safety Classification |
SIL 3 Capable, Subject to Certification |
|
Related Model |
2625-9 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
High-capacity pneumatic volume boosting for fast actuator response
Fixed 1:1 input-to-output pressure ratio
Maximum supply pressure rating of 150 psig
High-flow supply and exhaust performance
Adjustable bypass restriction for stable valve movement
Soft-seat construction for reduced air leakage
Supports rapid actuator stroking during large signal changes
Standard 3/4-inch NPT supply and output connections
1/4-inch NPT pneumatic control signal connection
Durable aluminium body for industrial environments
Compatible with suitable pneumatic valve positioners
Suitable for industrial control valve and actuator systems
Typical Applications
Industrial pneumatic control valve actuation
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Large pneumatic piston actuator systems
Fast-stroking industrial control valves
Safety instrumented valve applications
Industrial valve automation and maintenance
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
