Fisher 67CFR-239 Pressure Reducing Filter Regulator with Pressure Gauge
The Fisher 67CFR-239 Pressure Reducing Filter Regulator is designed for accurate pressure regulation and reliable compressed air supply in industrial pneumatic control systems.
- Pressure Reducing Regulator Valve Type
- 250 psig (17.2 bar) Maximum Inlet Pressure
- Automatic Downstream Pressure Regulation Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

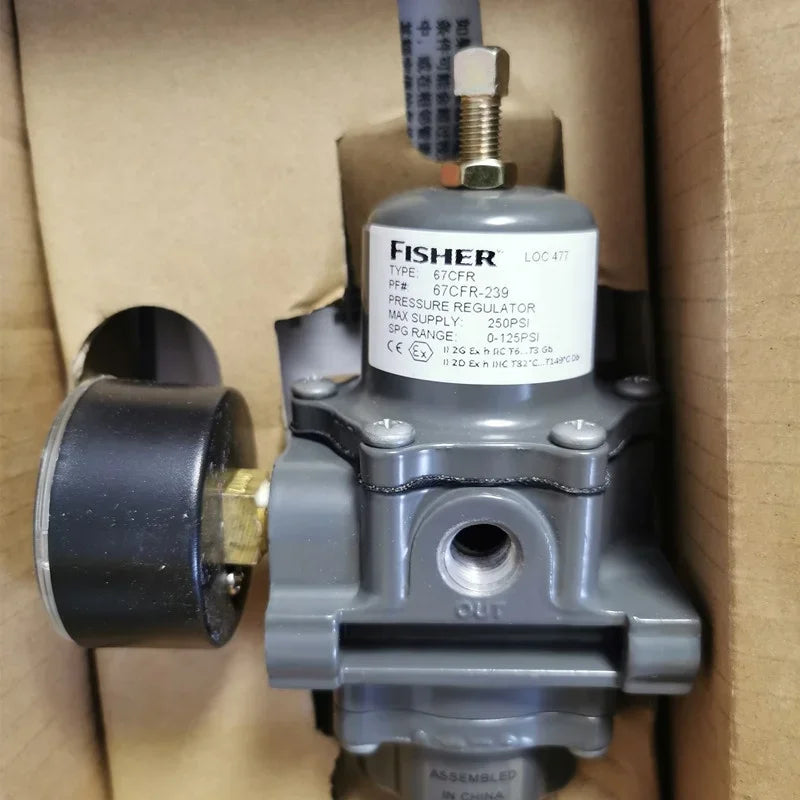

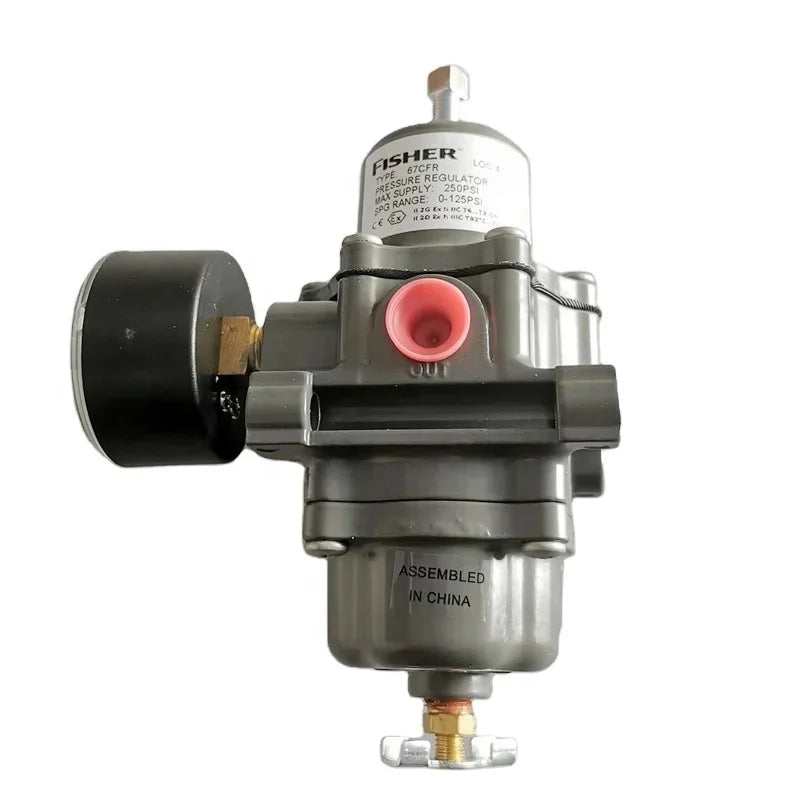

The Fisher 67CFR-239 Pressure Reducing Filter Regulator is designed for accurate pressure regulation and reliable compressed air supply in industrial pneumatic control systems. Manufactured by Fisher, an Emerson brand, this direct-operated regulator reduces incoming air or compatible gas pressure to a controlled downstream level, supporting stable operation of pneumatic valve positioners, actuators, and industrial instrumentation. Its integrated pressure gauge allows convenient monitoring of outlet pressure, while the built-in filtration system helps remove solid contaminants from the air supply.
Part of the Fisher 67C Series, the 67CFR-239 features a durable aluminium body, spring-loaded diaphragm mechanism, internal pressure relief, and adjustable pressure control. Its outlet pressure range of 0–125 psig (0–8.6 bar) makes it suitable for industrial instrumentation requiring higher regulated supply pressures. The regulator also includes a 5-micron polyethylene filter element, 1/4-inch NPT connections, and a pressure gauge for convenient pressure monitoring. Its compact construction supports installation in pneumatic control assemblies, manufacturing facilities, chemical processing plants, and industrial automation systems. The related Fisher 67CFR-237 offers a lower outlet pressure range of 0–60 psig.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pressure Reducing Filter Regulator with Gauge |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
67CFR-239 |
|
Series |
Fisher 67C |
|
Product Type |
Instrument Supply Filter Regulator |
|
Valve Type |
Pressure Reducing Regulator |
|
Structure |
Direct Operated, Spring-Loaded Diaphragm |
|
Control Type |
Automatic Downstream Pressure Regulation |
|
Power Source |
Pneumatic / Mechanical |
|
Body Material |
Aluminium |
|
Maximum Inlet Pressure |
250 psig (17.2 bar) |
|
Outlet Pressure Range |
0–125 psig (0–8.6 bar) |
|
Inlet and Outlet Connections |
1/4 Inch NPT |
|
Pressure Gauge |
Integrated |
|
Pressure Gauge Range |
0–160 psig |
|
Pressure Gauge Scale |
psi / MPa / bar |
|
Filtration |
Integrated Filter Element |
|
Filter Material |
Polyethylene |
|
Filter Rating |
5 Microns |
|
Valve Stem Material |
Brass |
|
Valve Plug Material |
Nitrile (NBR) |
|
Pressure Adjustment |
Adjustable Screw |
|
Working Medium |
Compressed Air and Compatible Gases |
|
Approximate Weight |
0.5 kg |
|
Mounting Application |
Industrial Instrumentation and Pneumatic Control Assemblies |
|
Related Model |
67CFR-237 |
|
Application Scope |
Industrial Pneumatic Pressure Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Accurate pressure reduction for stable instrument air delivery in industrial pneumatic systems.
-
Adjustable outlet pressure range of 0–125 psig for compatible industrial instrumentation.
-
Integrated pressure gauge for convenient monitoring of regulated outlet pressure.
-
Maximum inlet pressure rating of 250 psig for suitable compressed air and gas applications.
-
Built-in 5-micron polyethylene filter element helps remove solid contaminants from the instrument air supply.
-
Direct-operated spring-loaded diaphragm mechanism for responsive downstream pressure regulation.
-
Internal relief valve helps relieve excess downstream pressure within its designed capacity.
-
Durable aluminium body construction for demanding industrial operating environments.
-
Standard 1/4-inch NPT connections for integration into compatible pneumatic systems.
-
Compact design suitable for installation in control valve assemblies and industrial instrumentation panels.
-
Mechanical pressure regulation without requiring an external electrical power supply.
-
Brass valve stem and nitrile valve plug construction for dependable pressure control.
-
Integrated pressure monitoring and filtration in one compact regulator assembly.
-
Suitable for continuous industrial process automation and pneumatic pressure regulation applications.
Typical Applications
-
Industrial pneumatic pressure regulation systems
-
Pneumatic valve positioner air supply
-
Industrial control valve assemblies
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing equipment
-
Compressed air filtration and distribution systems
-
Pneumatic actuator pressure regulation
-
Industrial process instrumentation
-
Automated production and control systems
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
