Fisher FIELDVUE DLC3010 Digital Level Controller with HART
The Fisher FIELDVUE DLC3010 Digital Level Controller is designed for accurate liquid level, interface level, and density measurement in industrial process systems.
- Direct Acting or Reverse Acting Output Configuration
- 12–30 V DC Supply Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview

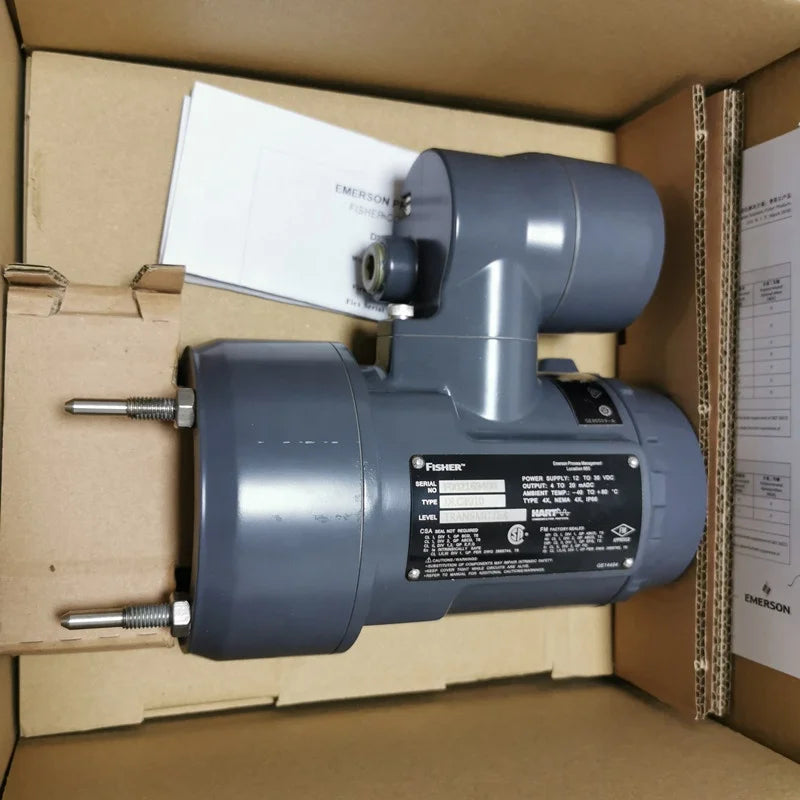

The Fisher FIELDVUE DLC3010 Digital Level Controller is designed for accurate liquid level, interface level, and density measurement in industrial process systems. Manufactured by Fisher, an Emerson brand, this intelligent instrument works with compatible displacer-type level sensors to monitor changes in liquid level and specific gravity. Its microprocessor-based control technology converts mechanical movement from a torque tube assembly into an electronic measurement signal, providing a standard 4–20 mA DC output for reliable process monitoring and integration into industrial automation systems.

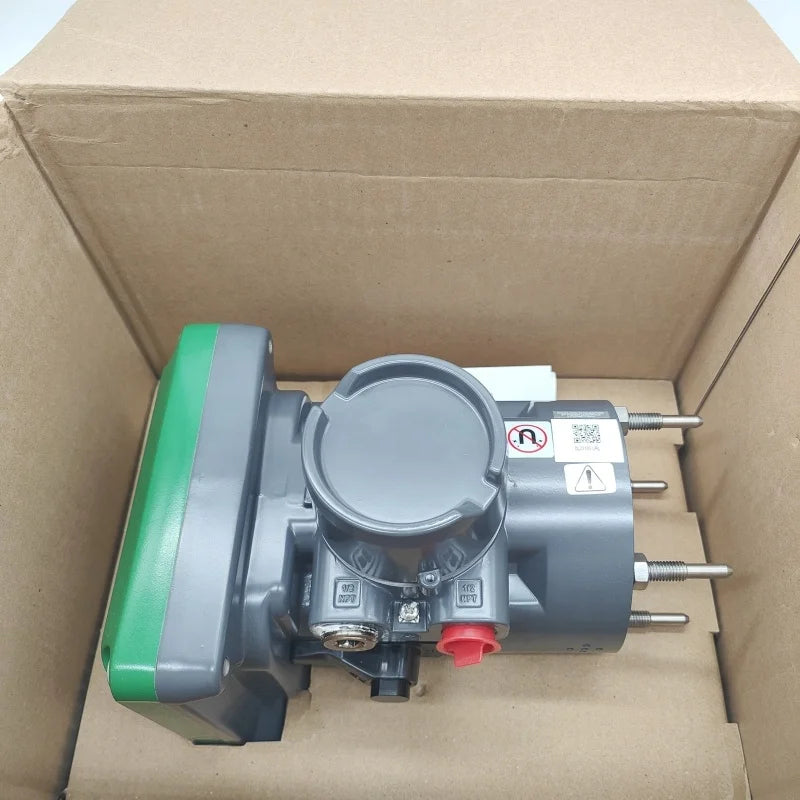

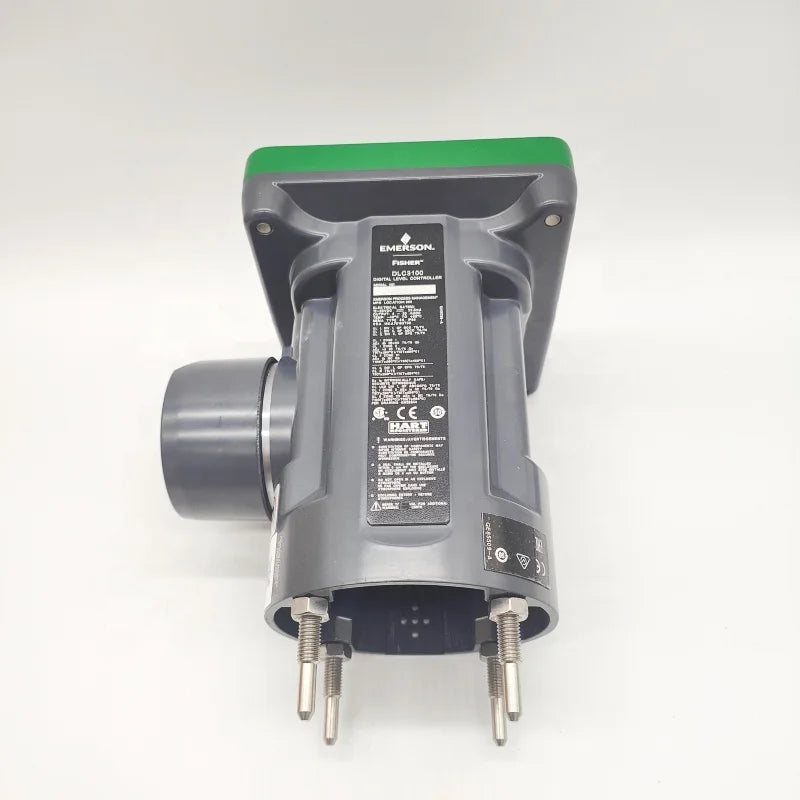

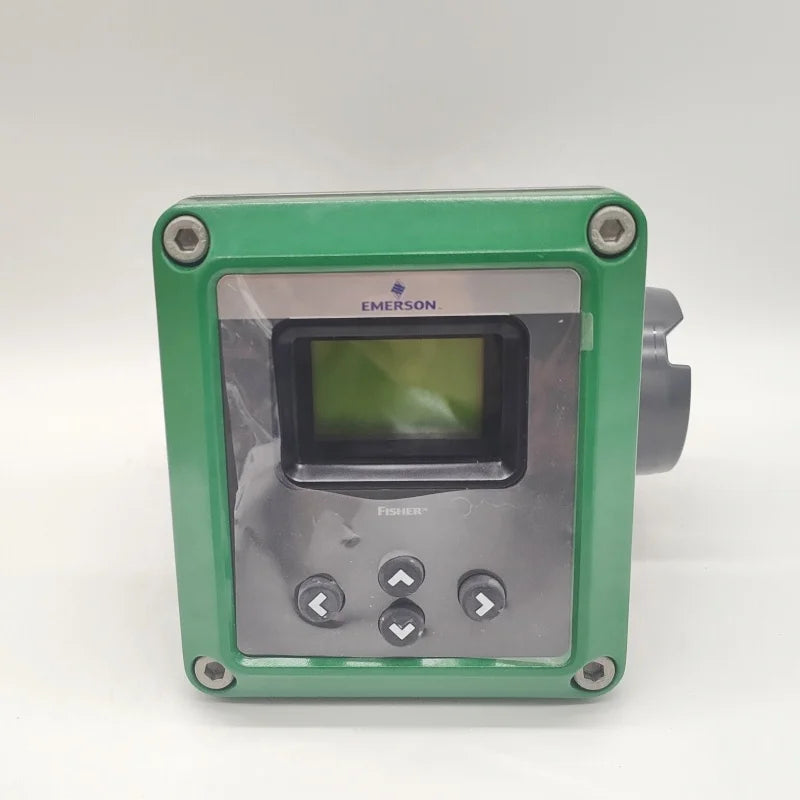

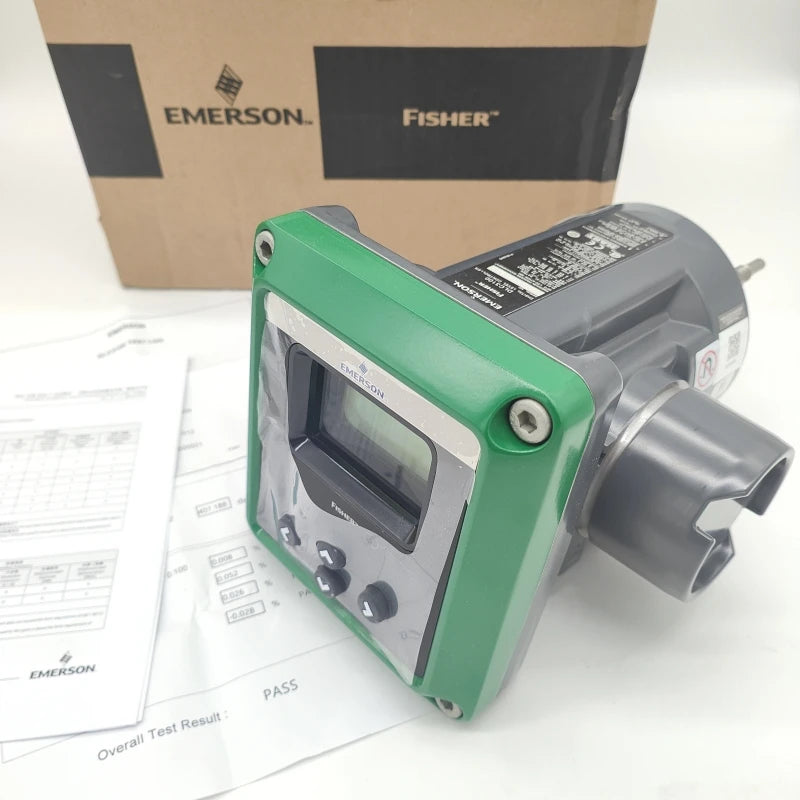

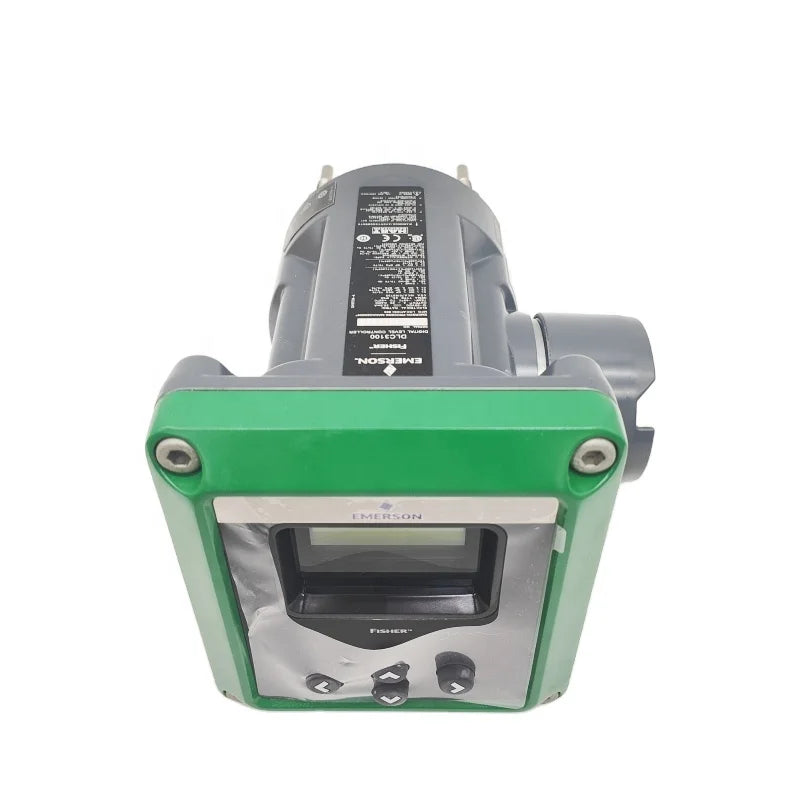

Part of the Fisher FIELDVUE digital level instrumentation range, the DLC3010 features HART digital communication, electronic signal processing, automatic temperature compensation, and diagnostic capabilities for dependable measurement performance. Designed for installation on compatible Fisher 249 caged and cageless displacer sensors, the controller supports liquid level monitoring, interface measurement between two liquids, and density measurement in storage vessels and processing equipment. The related Fisher FIELDVUE DLC3100 offers an updated digital level controller platform with a local user interface and enhanced diagnostic functions, making both models relevant to industrial level measurement and process instrumentation applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Level Controller |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
DLC3010 |
|
Series |
FIELDVUE |
|
Product Type |
Intelligent Digital Level Controller |
|
Measurement Technology |
Displacer and Torque Tube |
|
Control Technology |
Microprocessor-Based Electronic Measurement |
|
Measurement Functions |
Liquid Level, Interface Level and Density |
|
Sensor Compatibility |
Fisher 249 Caged and Cageless Displacer Sensors |
|
Input Signal |
Torque Tube Shaft Rotation from Displacer Buoyancy |
|
Analogue Output Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Digital Communication |
1200 Baud FSK |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Supply Voltage |
12–30 V DC |
|
Output Configuration |
Direct Acting or Reverse Acting |
|
Temperature Compensation |
Internal Temperature Sensor and Process Compensation Options |
|
Process Temperature Input |
2-Wire or 3-Wire Pt100 RTD Interface |
|
Mounting Type |
Fisher 249 Series Torque Tube Arm Mounting |
|
Protection Rating |
IP66 / NEMA 4X |
|
Ambient Relative Humidity |
0–95%, Non-Condensing |
|
Hazardous Area Approval Options |
CSA, FM, ATEX and IECEx |
|
Calibration |
Electronic Configuration and Calibration |
|
Diagnostic Functions |
Instrument Status, Sensor Monitoring and Alerts |
|
Approximate Weight |
2.7 kg |
|
Related Model |
Fisher FIELDVUE DLC3100 |
|
Application Scope |
Industrial Liquid Level and Density Measurement |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital level measurement for industrial liquid storage and process control systems.
-
Accurate measurement of liquid level, interface level between two liquids, and liquid specific gravity.
-
Displacer-based measurement technology using torque tube movement and electronic signal processing.
-
Standard 4–20 mA DC output for integration into industrial control and monitoring systems.
-
HART digital communication for remote configuration, diagnostics, and instrument monitoring.
-
Microprocessor-based measurement technology for responsive and consistent process readings.
-
Compatible with Fisher 249 caged and cageless displacer level sensors.
-
Internal temperature sensing and compensation capabilities for improved measurement stability.
-
Electronic calibration and configuration for simplified commissioning and maintenance.
-
High-resolution analogue-to-digital conversion for detecting small changes in process measurements.
-
Configurable signal filtering and damping to reduce the effects of mechanical vibration and liquid turbulence.
-
IP66 / NEMA 4X enclosure protection for demanding industrial operating environments.
-
Separate wiring and electronics compartments for improved protection and maintenance accessibility.
-
Supports digital diagnostic alerts for monitoring instrument performance and operating conditions.
-
Suitable for integration into HART-enabled distributed control systems and industrial process instrumentation networks.
Typical Applications
-
Industrial liquid level monitoring systems
-
Storage tank and process vessel level measurement
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Liquid interface measurement applications
-
Industrial fluid density monitoring
-
Water and wastewater treatment facilities
-
Power generation and utility systems
-
Industrial manufacturing and production equipment
-
Separator vessels and liquid processing systems
-
HART-enabled process instrumentation systems
-
Industrial tank monitoring and automation
-
Process vessel inventory and level measurement systems
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
